ELECTRO-PERMANENT MAGNETIC CHUCKS SUITABLE FOR MEDIUM & SMALL WORKPIECE ( CAN DO 5 SIDES MACHINING)

53100699, 53100700, 53100701, 53100702, 53100703, 53100704, 53100705, 53100706, 53100707 ~ 53100724

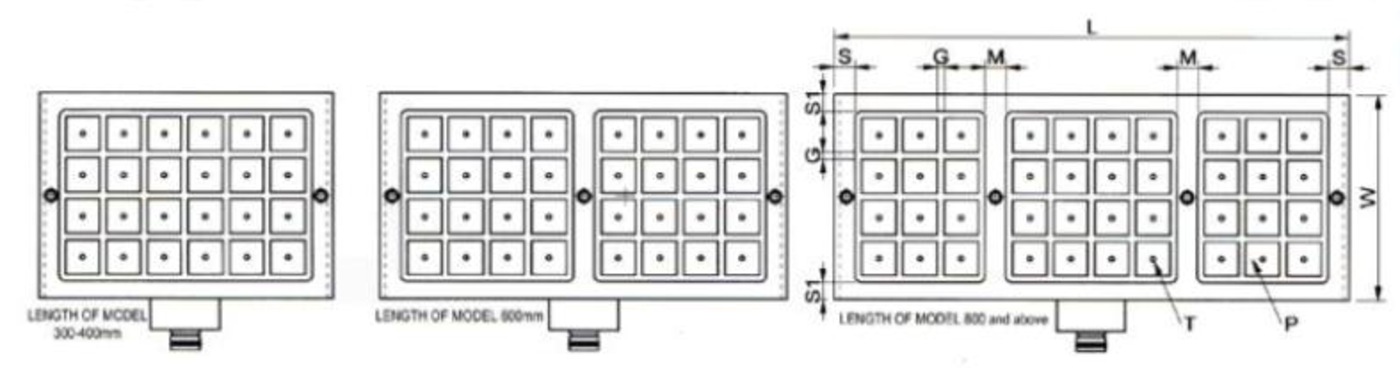

UNIT: mm

ITEM NO.	DIMENSION				PITCH		POLE	NO.OF POLE	CHUCK N.W	VOLTAGE	CURRENT AMP	CONTROLLER (included)	VOLTAGE	CURRENT AMP	CONTROLLER (included)
ITEM NO.	W	L	S/S1/t	M	H	G	P	NO.OF POLE	CHUCK N.W	VOLTAGE	CURRENT AMP	CONTROLLER (included)	VOLTAGE	CURRENT AMP	CONTROLLER (included)
53100699	240	430	30 / 25 / M8	-	70	10	50X50	18	42	AC 220V	13A	C1	AC 380V~440V	17A	C1
53100700	240	590		30				24	63		20A	C1		11A	C1
53100701	240	810		30				33	84		30A	C1		13A	C1
53100702	240	870		30				36	94		14A	C2		13A	C1
53100703	240	990		30				42	105		26A	C2		13A	C2
53100704	300	310		-				16	38		14A	C1		7A	C1
53100705	300	430		-				24	51		22A	C1		10A	C1
53100706	300	590		30				32	76		31A	C1		14A	C1
53100707	300	810		30				44	102		25A	C2		15A	C2
53100708	300	870		30				48	115		25A	C2		16A	C2
53100709	300	990		30				56	127		32A	C2		13A	C2
53100710	420	430		-				36	68		13A	C2		13A	C1
53100711	430	480		-				42	84		26A	C2		13A	C2
53100712	420	590		30				48	102		23A	C2		17A	C2
53100713	420	810		30				66	135		30A	C2		13A	C2
53100714	420	870		30				72	152		14A	C4		13A	C2
53100715	420	990		30				84	168		25A	C4		13A	C4
53100716	480	590		30				56	126		32A	C2		13A	C2
53100717	480	810		30				77	168		16A	C4		14A	C4
53100718	480	870		30				84	189		25A	C4		14A	C4
53100719	480	990		30				98	210		24A	C4		13A	C4
53100720	600	590		30				72	152		15A	C4		13A	C2
53100721	600	810		30				99	203		24A	C4		15A	C4
53100722	600	870		30				108	227		18A	C4		17A	C4
53100723	600	990		30				126	252		28A	C4		23A	C4
53100724	755	810		30				121	268		31A	C4		13A	C4

∧ Custom-made is available
