SIDE MILLS (TSCN)

55101682, 55101683, 55101684, 55101685, 55101686, 55101687, 55101688, 55101689, 55101690, 55101691, 55101692, 55101693, 55101694, 55101695, 55101696, 55101697, 55101698, 55101699

Description

Specification

Recommended Inserts: KENAMETAL

Insert: CNHU1005 Acceptable Customized Thickness: 13~17 mm

UNIT: mm

ITEM NO.	MODEL	DIMENSIONS

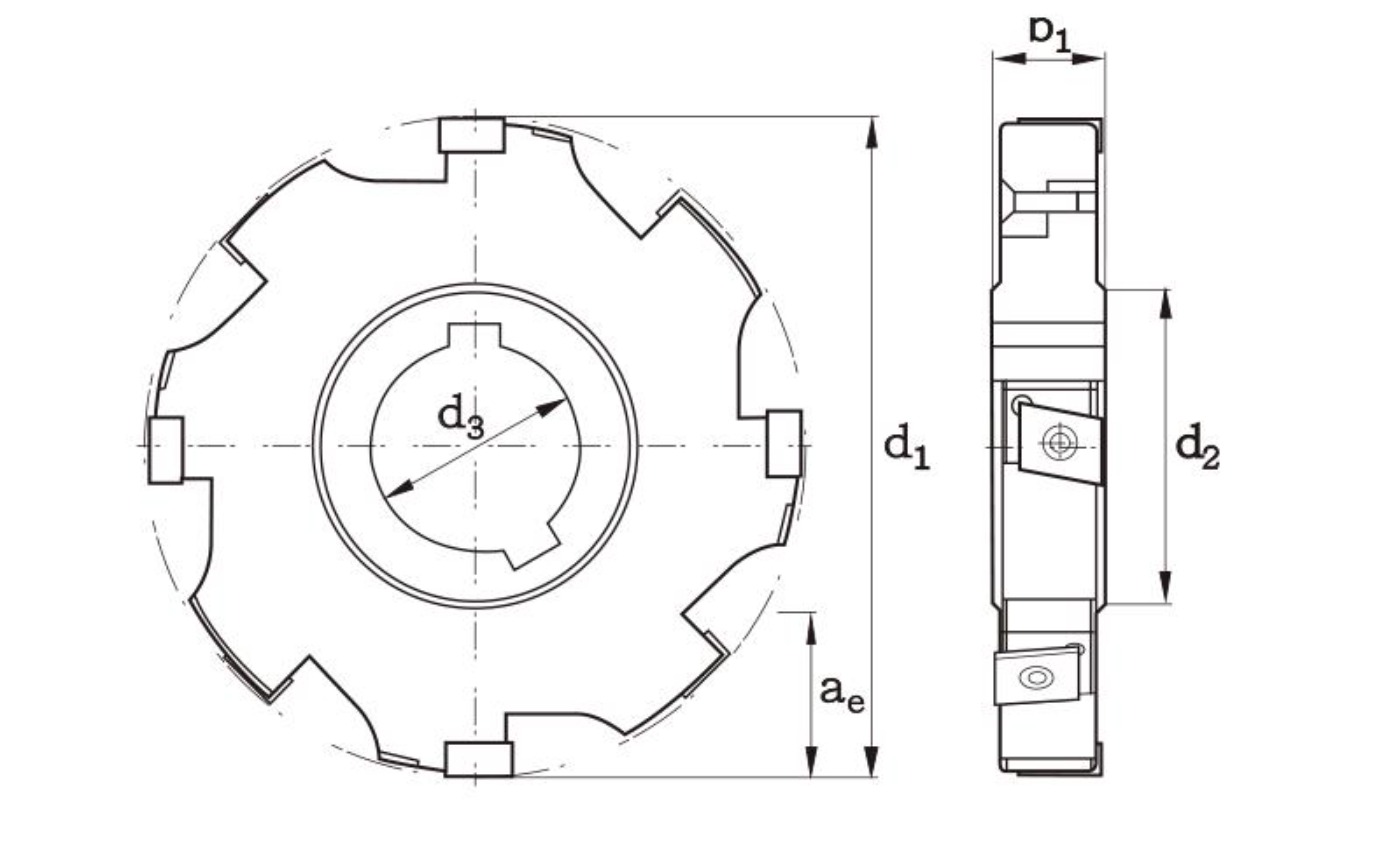

ITEM NO.	MODEL	d1	ap	ae	D1	d2	d3	d3(inch)	I No.
55101682	TSCN10-08014	80	14	18	14	44	27	1"	6
55101683	TSCN10-10014	100	14	26	14	48	27	1"	8
55101684	TSCN10-12514	125	14	35	14	55	32	1-1/4"	10
55101685	TSCN10-16014	160	14	46	14	68	40	1-1/2"	12
55101686	TSCN10-20014	200	14	61	14	78	50	2"	16
55101687	TSCN10-25014	250	14	82	14	86	50	2"	20

Insert: CNHU1205 Acceptable Customized Thickness: 17~21 mm

UNIT: mm

ITEM NO.	MODEL	DIMENSIONS
ITEM NO.	MODEL	d1	ap	ae	D1	d2	d3	d3(inch)	I No.
55101688	TSCN12-08018	80	18	18	18	44	27	1"	6
55101689	TSCN12-10018	100	18	26	18	48	27	1"	8
55101690	TSCN12-12518	125	18	35	18	55	32	1-1/4"	10
55101691	TSCN12-16018	160	18	46	18	68	40	1-1/2"	12
55101692	TSCN12-20018	200	18	61	18	78	50	2"	16
55101693	TSCN12-25018	250	18	82	18	86	50	2"	20

Insert: CNHU1606 Acceptable Customized Thickness: 21~30 mm

UNIT: mm

ITEM NO.	MODEL	DIMENSIONS
ITEM NO.	MODEL	d1	ap	ae	D1	d2	d3	d3(inch)	I No.
55101694	TSCN16-08022	80	22	18	22	44	27	1"	6
55101695	TSCN16-10022	100	22	26	22	48	27	1"	8
55101696	TSCN16-12522	125	22	35	22	55	32	1-1/4"	10
55101697	TSCN16-16022	160	22	46	22	68	40	1-1/2"	12
55101698	TSCN16-20022	200	22	61	22	78	50	2"	16
55101699	TSCN16-25022	250	22	82	22	86	50	2"	20

Order example: TSCN10-08014 x1"

UNIT: mm

ap	INSERT	L1	SCREW	WRENCH
13 ~ 17	CNHU1005 / CNHQ1005	10.0	CS40110	DBIT-T15
17 ~ 21	CNHU1205 / CNHQ1205	12.7	CS40110	DBIT-T15
21 ~ 30	CNHU1606 / CNHQ1606	16.0	CS50130	DBIT-T20
