DELME ÇUBUKLARI (S-CSKP 75°)
55101256, 55101257, 55101258, 55101259
Tanım
Özellikler

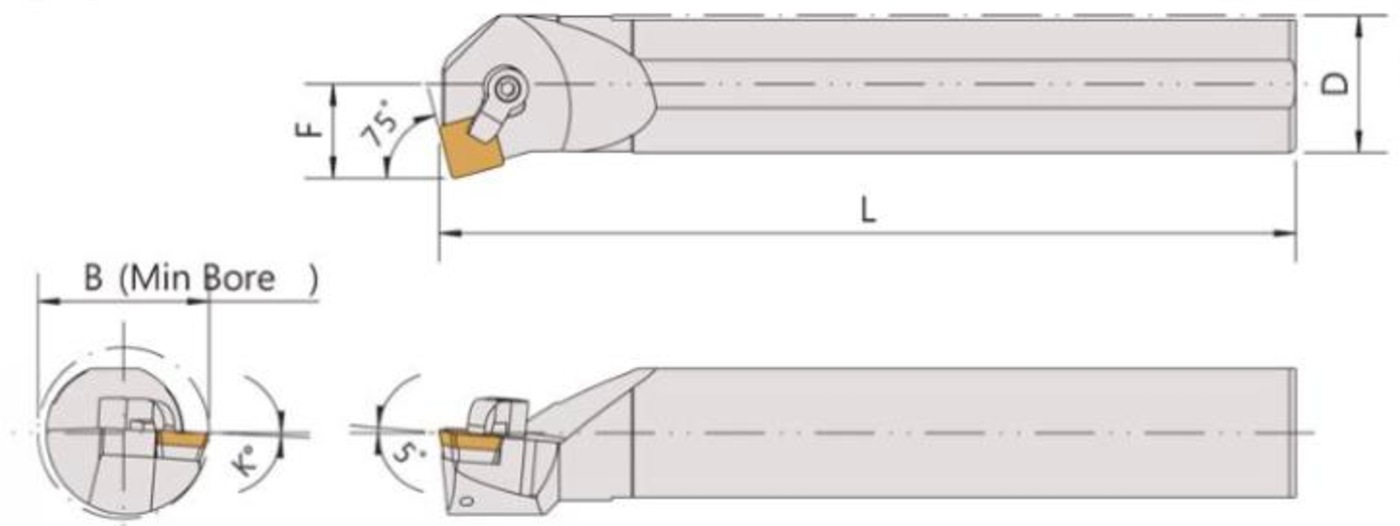

BİRİM: mm
| ÜRÜN NO. | MODEL | SOKMAK | BOYUTLAR | PARÇALAR | ANAHTAR | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sağ / Sol | D | F | L | B | K° | |||||||
| 55101256 R/L | S16Q-CSKPR/L09 | SPMN0903 | 16 | 11 | 180 | 20 | 0° | - | - | CP50-21 | CS7-5015 | LW025 |
| 55101257 R/L | S20R-CSKPR/L09 | SPMN0903 | 20 | 13 | 200 | 25 | 0° | - | - | CP50-21 | CS7-5015 | LW025 |
| 55101258 R/L | S25R-CSKPR/L12 | SPMN1203 | 25 | 17 | 200 | 32 | 2° | SMS-421 | CSF3010 | CP50-22 | CS7-6024 | LW030 |
| 55101259 R/L | S32S-CSKPR/L12 | SPMN1203 | 32 | 22 | 250 | 40 | 0° | SMS-421 | CSF3010 | CP50-22 | CS7-6024 | LW030 |
