90° AÇILI BAŞLIKLAR-AHC (BT-FA TİPİ)
52171700~52171707
Tanım
Özellikler

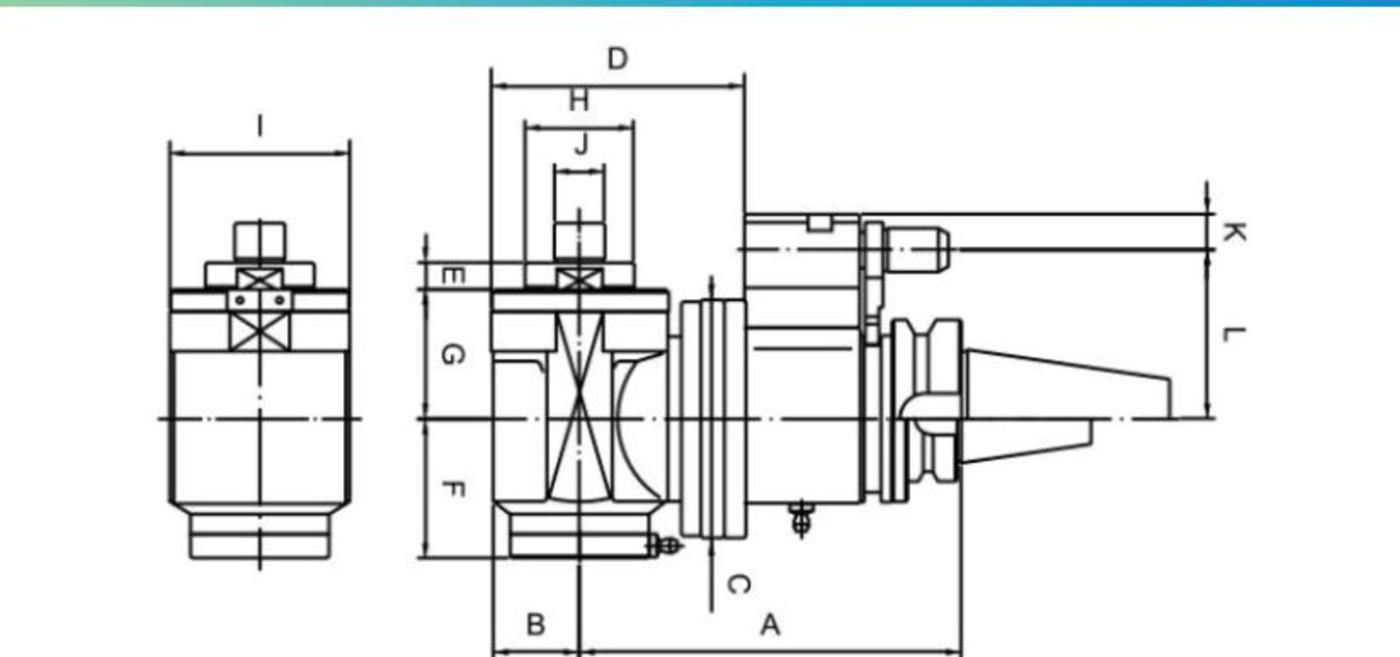

BİRİM: mm
| ÜRÜN NO. | MODEL | A | B | C | D | E | F | G | H | BEN | J | K | L | Net Ağırlık (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52171700 | AHC-BT40-FA25.4 | 192 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 65 / 80 / 85 | 12.1 |
| 52171701 | AHC-BT50-FA25.4 | 195 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 80 / 85 / 110 | 14.7 |
| 52171702 | AHC-SK40-FA25.4 | 192 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 65 / 80 / 85 | 12.1 |
| 52171703 | AHC-SK50-FA25.4 | 195 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 80 / 85 / 110 | 14.7 |
| 52171704 | AHC-CAT40-FA25.4 | 192 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 65 / 80 / 85 | 12.1 |
| 52171705 | AHC-CAT50-FA25.4 | 195 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 80 / 85 / 110 | 14.7 |
| 52171706 | AHC-HSK63-FA25.4 | 206 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 65 / 80 / 85 | 12.1 |
| 52171707 | AHC-HSK100-FA25.4 | 202 | 43.5 | 120 | 127.5 | 13.5 | 70 | 65 | 55 | 91 | 25.4 | 18 | 80 / 85 / 110 | 14.7 |
