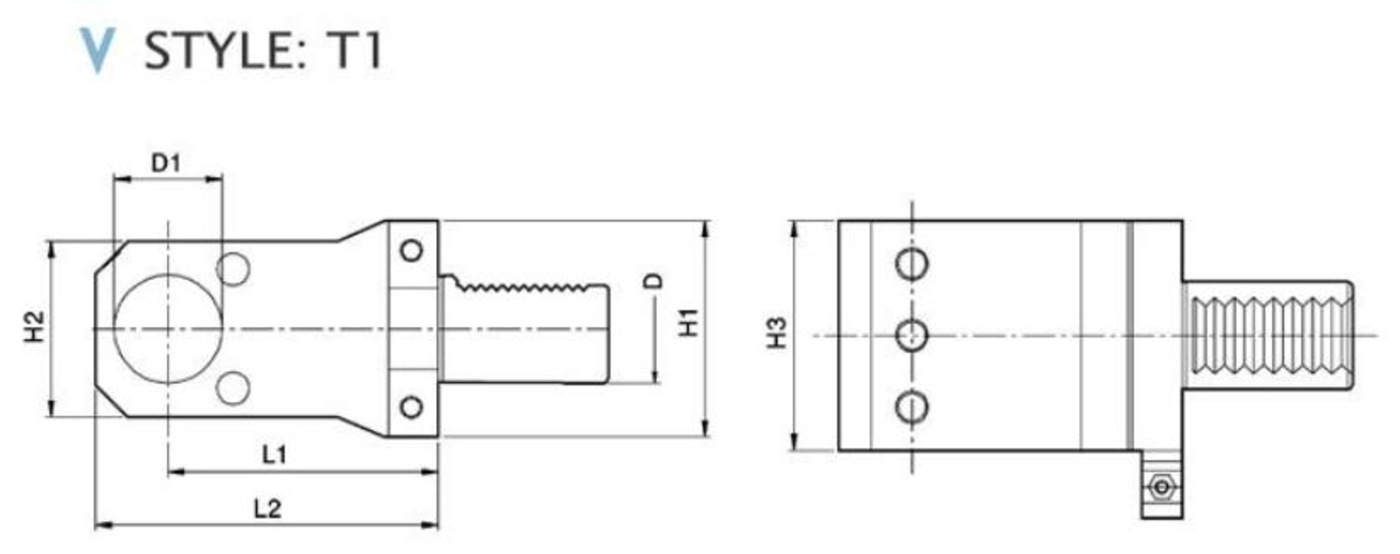

DIN 69880 EKSENEL STATİK TUTUCULAR (STİL: T1)
51101480, 51101481, 51101482, 51101483, 51101484, 51101485, 51101486, 51101487, 51101488, 51101489, 51101490
Tanım
Özellikler
BİRİM: mm
| ÜRÜN NO. | MODEL | D (DIN 69880) |
D1 | H1 | H2 | H3 | L1 | L2 |
|---|---|---|---|---|---|---|---|---|
| 51101480 | T1-30-32(1-1/4")-65 | 30 | 32(1-1/4") | 65 | 52 | 62 | 65 | 90 |
| 51101481 | T1-30-32(1-1/4")-85 | 30 | 32(1-1/4") | 65 | 52 | 62 | 85 | 108 |
| 51101482 | T1-30-32(1-1/4")-100 | 30 | 32(1-1/4") | 65 | 52 | 62 | 100 | 123 |
| 51101483 | T1-30-32(1-1/4")-120 | 30 | 32(1-1/4") | 65 | 52 | 62 | 120 | 143 |
| 51101484 | T1-40-32(1-1/4")-85 | 40 | 32(1-1/4") | 80 | 65 | 85 | 85 | 112 |
| 51101485 | T1-40-40(1-1/2")-85 | 40 | 40(1-1/2") | 80 | 65 | 85 | 85 | 112 |
| 51101486 | T1-40-40(1-1/2")-100 | 40 | 40(1-1/2") | 80 | 65 | 85 | 100 | 127 |
| 51101487 | T1-50-40(1-1/2")-100 | 50 | 40(1-1/2") | 90 | 80 | 96 | 100 | 137 |
| 51101488 | T1-50-50(2")-100 | 50 | 50(2") | 90 | 80 | 96 | 100 | 137 |
| 51101489 | T1-60-50(2")-100 | 60 | 50(2") | 104 | 90 | 120 | 100 | 142 |
| 51101490 | T1-60-60(2-3/8")-100 | 60 | 60(2-3/8") | 104 | 90 | 120 | 100 | 142 |
