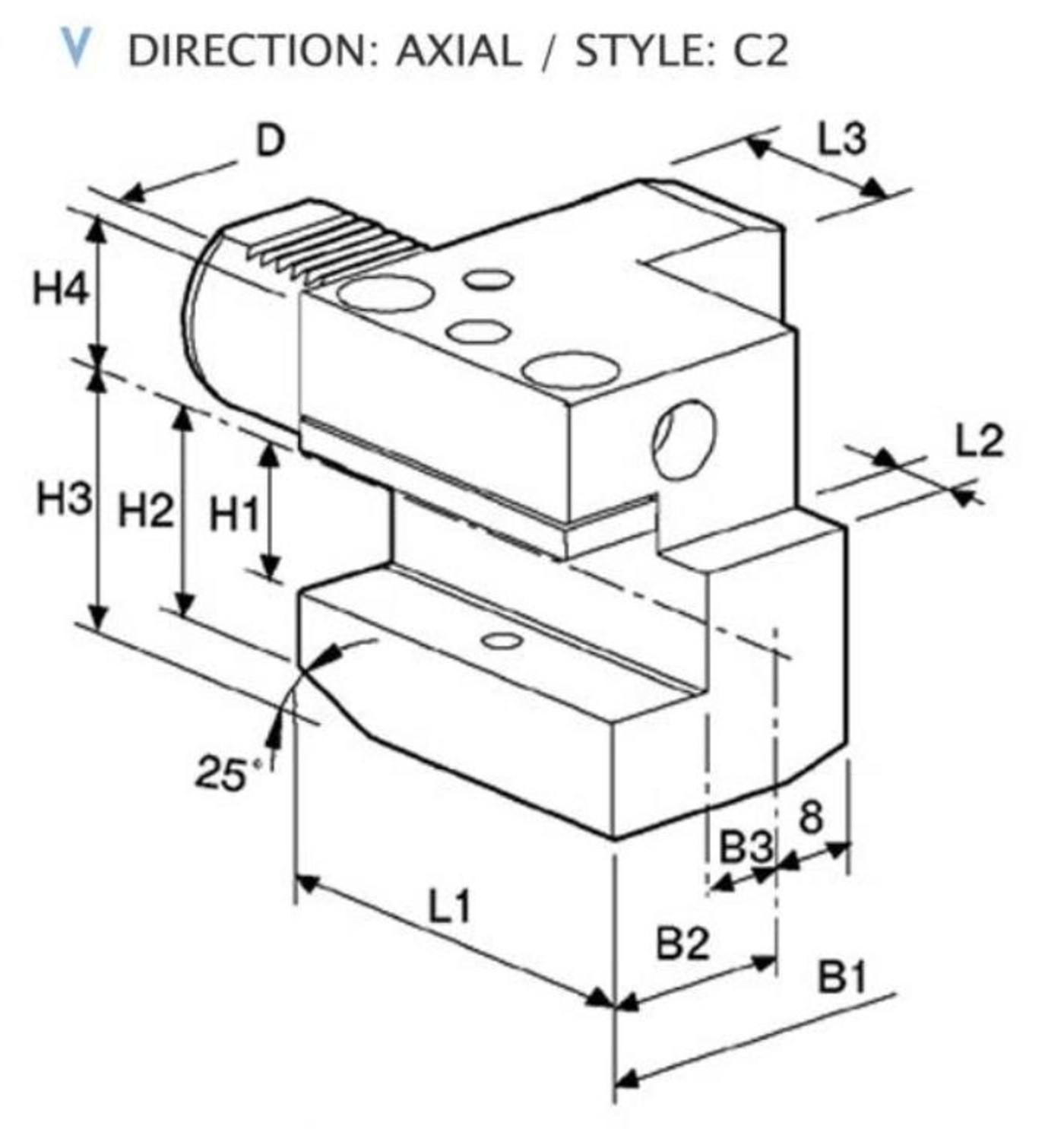

DIN 69880 EKSENEL STATİK TUTUCULAR (STİL: C2)
51101338, 51101339, 51101340, 51101341, 51101342
Tanım
Özellikler
BİRİM: mm
| ÜRÜN NO. | MODEL | D | B1 | B2 | B3 | H1 | H2 | H3 | H4 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51101338 | C2-20 x 16 (5/8") | 20 | 65 | 40 | 26 | 16(5/8") | 23 | 30 | 25 | 50 | 7 | 30 |
| 51101339 | C2-30 x 20 (3/4") | 30 | 76 | 41 | 23 | 20(3/4") | 28 | 38 | 28 | 70 | 10 | 30 |
| 51101340 | C2-40 x 25 (1") | 40 | 90 | 47.5 | 25.5 | 25(1") | - | 48 | 32.5 | 85 | 12.5 | 30 |
| 51101341 | C2-50 x 32 (1-1/4") | 50 | 105 | 55 | 30.5 | 32(1-1/4") | - | 60 | 35 | 100 | 16 | 40 |
| 51101342 | C2-60 x 32 (1-1/4") | 60 | 125 | 62.5 | 33 | 32(1-1/4") | - | 62.5 | 42.5 | 125 | 16 | 40 |
