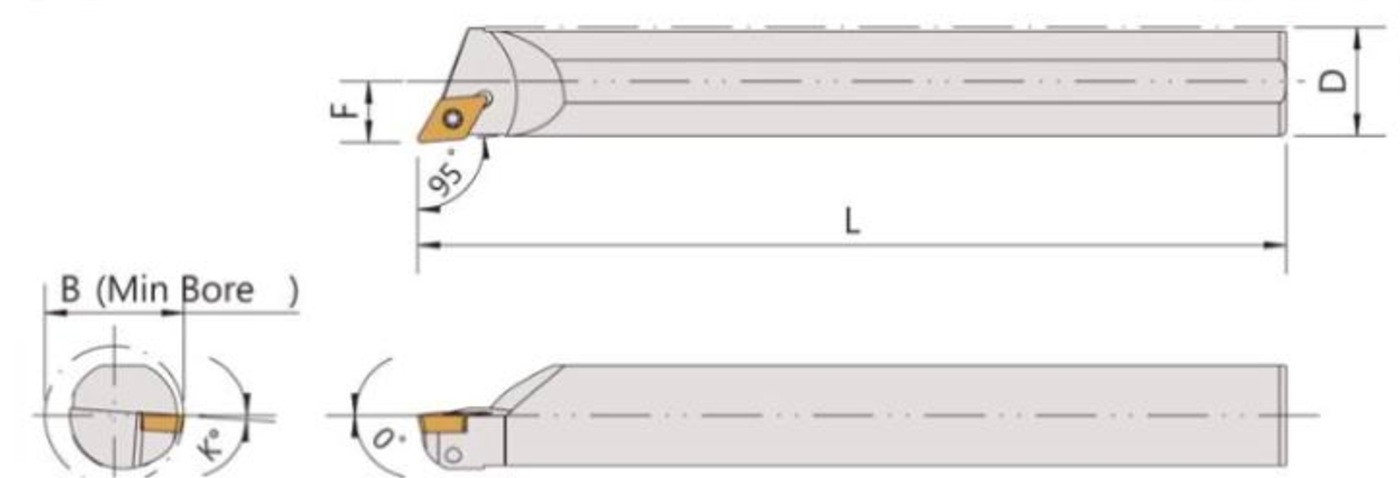

Буровые стержни (S-SDJC 95°)
55101360-1, 55101360, 55101361, 55101362, 55101363, 55101364, 55101365, 55101366
Описание
Спецификация
ЕДИНИЦА ИЗМЕРЕНИЯ: мм
| НОМЕР ТОВАРА | МОДЕЛЬ | ВСТАВЛЯТЬ | РАЗМЕРЫ | ЗАПЧАСТИ | КЛЮЧ | ||||
|---|---|---|---|---|---|---|---|---|---|
| Правая / Левая | Д | Ф | Л | Б | К° | ||||
| 55101360-1 R/L | S08K-SDJCR/L07 | DCMT0702 | 8 | 5 | 125 | 11 | 10° | CS25050 | FT-7 |
| 55101360 R/L | S10M-SDJCR/L07 | DCMT0702 | 10 | 6 | 150 | 13 | 10° | CS25060 | FT-7 |
| 55101361 R/L | S12M-SDJCR/L07 | DCMT0702 | 12 | 7 | 150 | 19 | 10° | CS25060 | FT-7 |
| 55101362 R/L | S16Q-SDJCR/L07 | DCMT0702 | 16 | 9.5 | 180 | 23 | 8° | CS25060 | FT-7 |
| 55101363 R/L | S16Q-SDJCR/L11 | DCMT11T3 | 16 | 9.5 | 180 | 23 | 8° | CS35095 | FT-15 |
| 55101364 R/L | S20R-SDJCR/L11 | DCMT11T3 | 20 | 11.5 | 200 | 27 | 6° | CS35095 | FT-15 |
| 55101365 R/L | S25R-SDJCR/L11 | DCMT11T3 | 25 | 14 | 200 | 32 | 4° | CS35095 | FT-15 |
| 55101366 R/L | S32S-SDJCR/L11 | DCMT11T3 | 32 | 17.5 | 250 | 40 | 2° | CS35095 | FT-15 |
