BARRAS DE MANDRILAMENTO (S-MCLN 95°)
55100184, 55100185, 55100186, 55100187, 55100188, 55100189, 55100190, 55100191, 55100192, 55100193, 55100194, 55100195, 55100196
Descrição
Especificação
UNIDADE: mm
| ITEM Nº. | MODELO | INSERIR | DIMENSÕES | PEÇAS | CHAVE DE BOCA | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

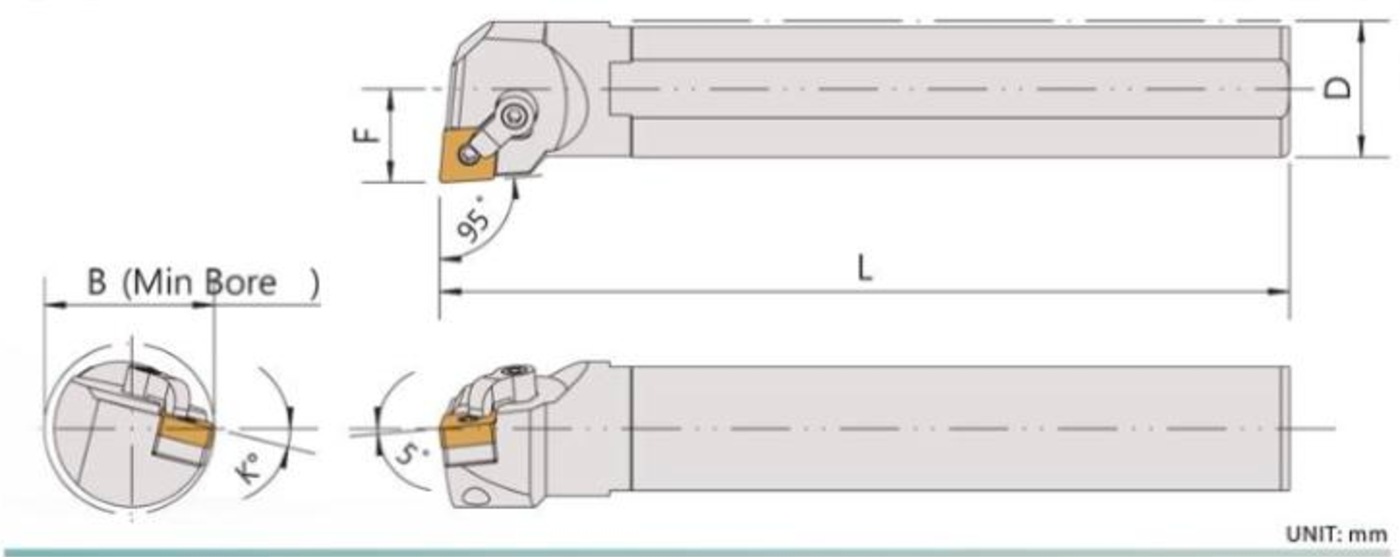

| Direita / Esquerda | D | F | L | B | K° | ||||||||
| 55100184 R/L | S16Q-MCLNR/L12 | CNMG1204 | 16 | 11 | 180 | 20 | 20° | - | LCS-511 | CP50-26 | CS7-5018 | LW025 | - |
| 55100185 R/L | S20R-MCLNR/L12 | CNMG1204 | 20 | 13 | 200 | 25 | 17° | - | LCS-511 | CP50-26 | CS7-5018 | LW025 | - |
| 55100186 R/L | S25R-MCLNR/L12 | CNMG1204 | 25 | 17 | 200 | 32 | 14° | - | LCS-511 | CP50-22 | CS7-6024 | LW025 | LW030 |
| 55100187 R/L | S32S-MCLNR/L12 | CNMG1204 | 32 | 22 | 250 | 40 | 14° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55100188 R/L | S40T-MCLNR/L12 | CNMG1204 | 40 | 27 | 300 | 50 | 12° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55100189 R/L | S50U-MCLNR/L12 | CNMG1204 | 50 | 35 | 350 | 63 | 12° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55100190 R/L | S60V-MCLNR/L12 | CNMG1204 | 60 | 36 | 400 | 70 | 10° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55100191 R/L | S63Y-MCLNR/L12 | CNMG1204 | 63 | 38 | 500 | 75 | 10° | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55100192 R/L | S40T-MCLNR/L16 | CNMG1606 | 40 | 27 | 300 | 50 | 11° | SMC-533 | LCS-0822 | CP50-22 | CS7-6030 | - | LW030 |
| 55100193 R/L | S50U-MCLNR/L16 | CNMG1606 | 50 | 35 | 350 | 63 | 12° | SMC-533 | LCS-0822 | CP50-22 | CS7-6030 | - | LW030 |
| 55100194 R/L | S63Y-MCLNR/L16 | CNMG1606 | 63 | 38 | 500 | 75 | 10° | SMC-533 | LCS-0822 | CP50-22 | CS7-6030 | - | LW030 |
| 55100195 R/L | S50U-MCLNR/L19 | CNMG1906 | 50 | 35 | 350 | 63 | 12° | SMC-633 | LCS-1022 | CP50-29 | CS7-8030 | - | LW030 |
| 55100196 R/L | S63Y-MCLNR/L19 | CNMG1906 | 63 | 38 | 500 | 75 | 10° | SMC-633 | LCS-1022 | CP50-29 | CS7-8030 | - | LW030 |
