CENTROS DE MORADIA BULL NOSE

CENTROS DE MORADIA BULL NOSE

CENTROS DE MORADIA BULL NOSE

51100200, 51100201, 51100202, 51100202-1, 51100202-2, 51100203, 51100204, 51100204-1, 51100205, 51100206, 51100207, 51100207-1, 51100208, 51100209, 51100209-1, 51100210, 51100210-1, 51100210-2, 511002

Descrição

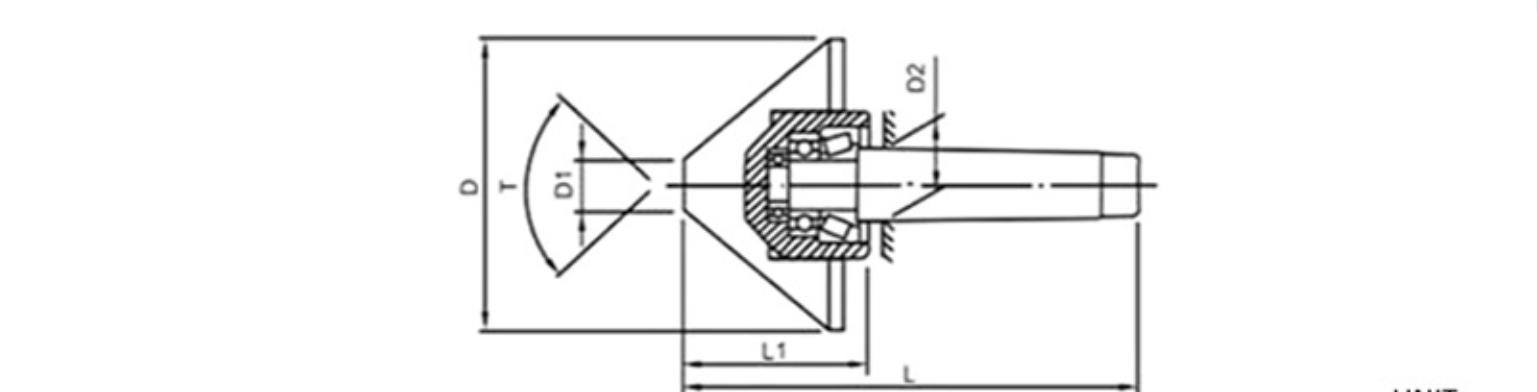

dimensões do centro vivo do nariz de touro

Especificação

UNIDADE: mm

ITEM Nº. CANELA L L1 D D1 D2 T RPM MÁX. PESO DA CARGA GW
51100200 MT2 x 2-1/2” 128 58 63,5 12 17,78 60° 3.000 RPM RPM100 = 250 kg 0,9
51100201 MT2 x 3” 138 68 78 19 17,78 60° 2.500 RPM 100 RPM = 500 kg 1.3
51100202 MT3 x 3” 158 68 78 19 23,825 60° 2.500 RPM 100 RPM = 500 kg 1,5
51100202-1 MT4 x 3” 179 68 78 19 31.267 60° 2.500 RPM 100 RPM = 500 kg 1.8
51100202-2 MT2 x 4” 141 70 106 32 17,78 70° 2.000 RPM RPM 100 = 800 kg 2.3
51100203 MT3 x 4” 160 70 106 32 23,825 70° 2.000 RPM RPM 100 = 800 kg 2,5
51100204 MT4 x 4” 181 70 106 32 31.267 70° 2.000 RPM RPM 100 = 800 kg 3.0
51100204-1 MT5 x 4” 214 70 106 32 44.399 70° 2.000 RPM RPM 100 = 800 kg 4.0
51100205 MT3 x 5” 173 83 128 35 23,825 70° 1.900 RPM RPM 100 = 1200 kg 4.2
51100206 MT4 x 5” 194 83 128 35 31.267 70° 1.900 RPM RPM 100 = 1200 kg 4.6
51100207 MT5 x 5” 227 83 128 35 44.399 70° 1.900 RPM RPM 100 = 1200 kg 5,5
51100207-1 MT3 x 6” 183 93 156 50 23,825 70° 1.900 RPM RPM 100 = 1500 kg 7.3
51100208 MT4 x 6” 204 93 156 50 31.267 70° 1.900 RPM RPM 100 = 1500 kg 7,7
51100209 MT5 x 6” 237 93 156 50 44.399 70° 1.900 RPM RPM 100 = 1500 kg 8.2
51100209-1 MT4 x 8” 223 113 206 54 31.267 75° 1.500 RPM RPM 100 = 2600 kg 12,5
51100210 MT5 x 8” 257 113 206 54 44.399 75° 1.500 RPM RPM 100 = 2600 kg 13,5
51100210-1 MT6 x 8” 298 113 206 54 63,348 75° 1.500 RPM RPM 100 = 2600 kg 16.0
51100210-2 MT4 x 10” 236 120 258 92 31.267 80° 1.000 RPM RPM 100 = 3600 kg 24.0
51100210-3 MT5 x 10” 264 120 258 92 44.399 80° 1.000 RPM RPM 100 = 3600 kg 25,5
51100210-4 MT6 x 10” 306 120 258 92 63,348 80° 1.000 RPM RPM 100 = 3600 kg 28.0
51100210-5 MT5 x 12” 281 135 306 120 44.399 90° 1.000 RPM RPM 100 = 3600 kg 37,5
51100210-6 MT6 x 12” 323 135 306 120 63,348 90° 1.000 RPM RPM 100 = 3600 kg 40,0
51100211 MT2 x 2,24” 125 55 57 12 17,78 60° 3.000 RPM RPM 100 = 250 kg 0,8
51100212 MT2 x 2,44” 130 60 62 12 17,78 60° 3.000 RPM RPM 100 = 250 kg 0,9
51100213 MT2 x 2,48” 130 60 63 12 17,78 60° 3.000 RPM RPM 100 = 250 kg 0,9
51100214 MT3 x 2,95” 148 58 75 19 23,825 70° 2.500 RPM 100 RPM = 500 kg 1.3
51100215 MT3 x 3,07” 152 52 78 19 23,825 70° 2.500 RPM 100 RPM = 500 kg 1.4
51100216 MT3 x 4,13” 157 67 105 32 23,825 70° 2.000 RPM RPM 100 = 800 kg 2.7
51100217 MT3 x 4,21” 160 70 107 32 23,825 70° 2.000 RPM RPM 100 = 800 kg 2.9
51100218 MT4 x 4,92” 185 74 125 35 31.267 75° 2.000 RPM RPM 100 = 1400 kg 4.1
51100219 MT4 x 5,04” 192 81 128 35 31.267 70° 2.000 RPM RPM 100 = 1500 kg 4.6
51100220 MT5 x 5,91” 230 86 150 50 44.399 70° 2.000 RPM RPM 100 = 1600 kg 7,7
51100221 MT5 x 6,61” 236 92 168 50 44.399 70° 1.900 RPM RPM 100 = 1800 kg 9,5
