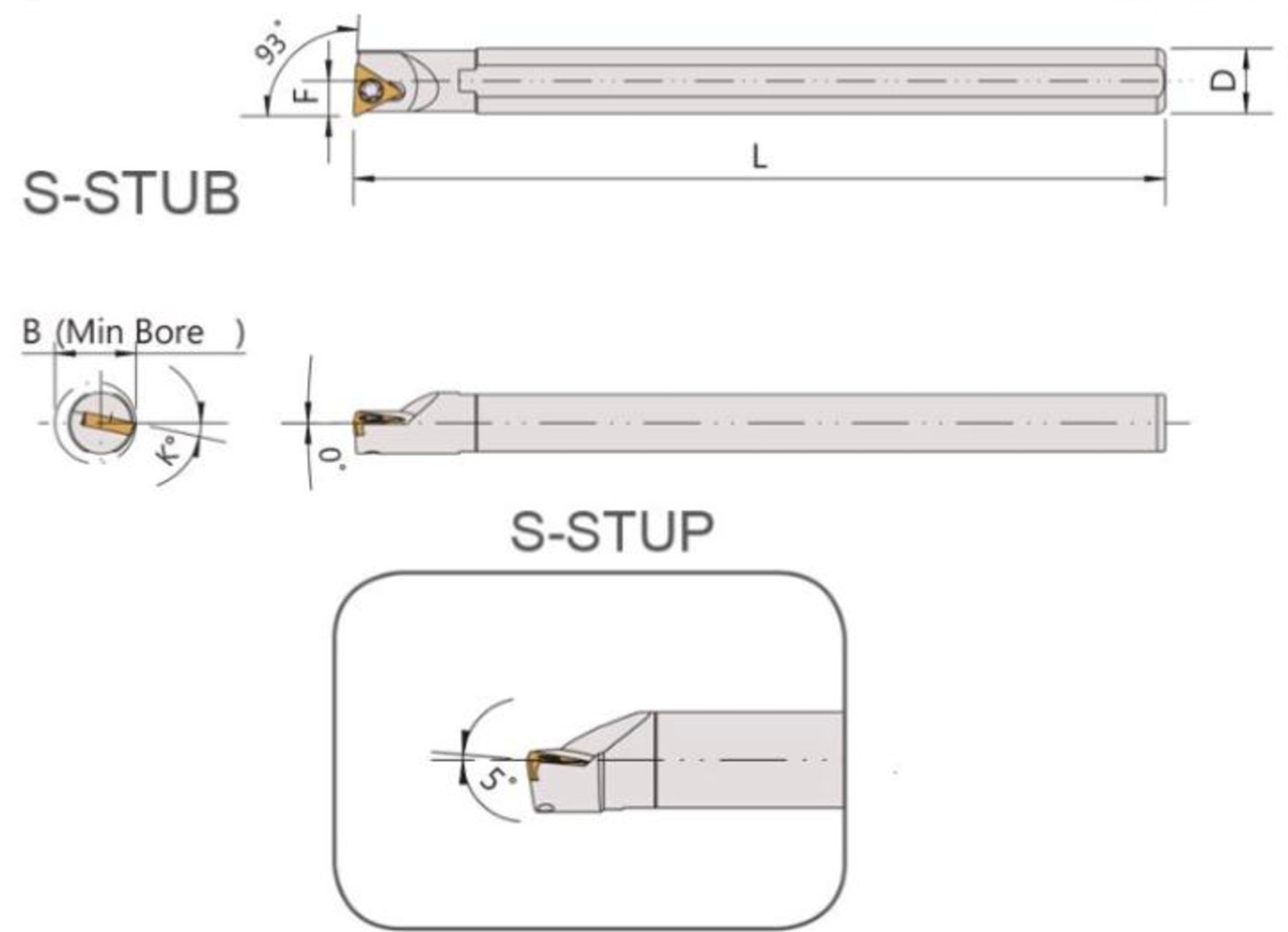

WYTACZARKI (S-STUB S-STUP 93°)

WYTACZARKI (S-STUB S-STUP 93°)

WYTACZARKI (S-STUB S-STUP 93°)

55101434, 55101435, 55101436, 55101437, 55101438, 55101439, 55101440, 55101441, 55101442, 55101443, 55101444, 55101445, 55101446, 55101447, 55101448, 55101449, 55101450, 55101451, 55101452

Opis

Specyfikacja

JEDNOSTKA: mm

NR POZYCJI MODEL WSTAWIĆ WYMIARY STRONY KLUCZ
Prawo / Lewo   D F L B K°
55101434 P/L S08H-STUBR/L06-10 TBGT0601 8 4 100 10 12° CS20038 FT-6
55101435 P/L S08H-STUPR/L08-10 TPGT0802 8 5 100 10 12° CS20045 FT-6
55101436 P/L S08H-STUPR/L09 TPMT0902 8 6 100 12 10° CS25065 FT-8
55101437 P/L S08H-STUPR/L09-10 TPMT0902 8 5 100 10 12° CS25065 FT-8
55101438 P/L S10K-STUPR/L09-12 TPMT0902 10 6 125 12 8° CS25065 FT-8
55101439 P/L S12M-STUPR/L09 TPMT0902 12 8 150 16 5° CS25065 FT-8
55101440 P/L S12M-STUPR/L09-14 TPMT0902 12 7 150 14 5° CS25065 FT-8
55101441 P/L S10K-STUPR/L11-12 TPMT1103 10 6 125 12 8° CSA30060 FT-10
55101442 P/L S12M-STUPR/L11 TPMT1103 12 8 150 16 6° CSA30070 FT-10
55101443 P/L S12M-STUPR/L11-14 TPMT1103 12 7 150 14 7° CSA30060 FT-10
55101444 P/L S16Q-STUPR/L11 TPMT1103 16 10 180 20 2° CSA30070 FT-10
55101445 P/L S16Q-STUPR/L11-18 TPMT1103 16 9 180 18 4° CSA30070 FT-10
55101446 P/L S20R-STUPR/L11 TPMT1103 20 12,5 200 25 2° CSA30070 FT-10
55101447 P/L S20R-STUPR/L11-22 TPMT1103 20 11 200 22 2° CSA30070 FT-10
55101448 P/L S20R-STUPR/L16 TPMT1604 20 12 200 25 8° CS40090 FT-15
55101449 P/L S20R-STUPR/L16-22 TPMT1604 20 11 200 22 8° CS40090 FT-15
55101450 P/L S25R-STUPR/L16 TPMT1604 25 14,5 200 32 8° CS40090 FT-15
55101451 P/L S25R-STUPR/L16-28 TPMT1604 25 14 200 28 8° CS40090 FT-15
55101452 P/L S32S-STUPR/L16 TPMT1604 32 18 250 39 6° CS40090 FT-15
