PENAHAN ALUR (BERBENTUK L)
55101517, 55101518, 55101519, 55101520, 55101520-1
Keterangan
Spesifikasi
SATUAN: mm

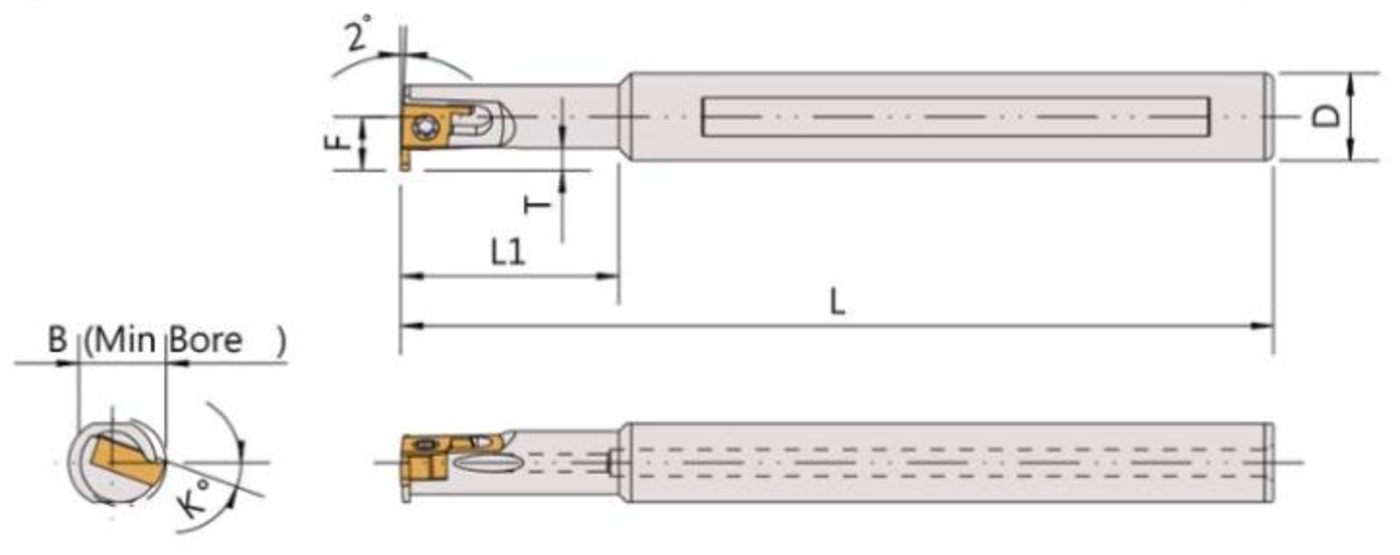

| NOMOR BARANG | MODEL | MENYISIPKAN | UKURAN | BAGIAN | KUNCI | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| D | F | L | B menit | L1 | T | |||||
| 55101517 | L08H-SIGER08A | GER/L 100-005A ~ 200-010A | 8 | 4.8 | 100 | 8 | 20 | 1.5 | CS20038 | FT-6 |
| 55101518 | L10K-SIGER10B | GER/L 100-005B ~ 300-020B | 10 | 6.2 | 125 | 10 | 25 | 2.2 | CS25060 | FT-7 |
| 55101519 | L10K-SIGER12B | GER/L 100-005B ~ 300-020B | 10 | 7.0 | 125 | 12 | 30 | 2.2 | CS25060 | FT-7 |
| 55101520 | L12M-SIGER14B | GER/L 100-005B ~ 300-020B | 12 | 8.0 | 150 | 14 | 30 | 2.2 | CS25060 | FT-7 |
| 55101520-1 | L16M-SIGER14B | GER/L 100-005B ~ 300-020B | 16 | 8.0 | 150 | 14 | 40 | 2.2 | CS25060 | FT-7 |
