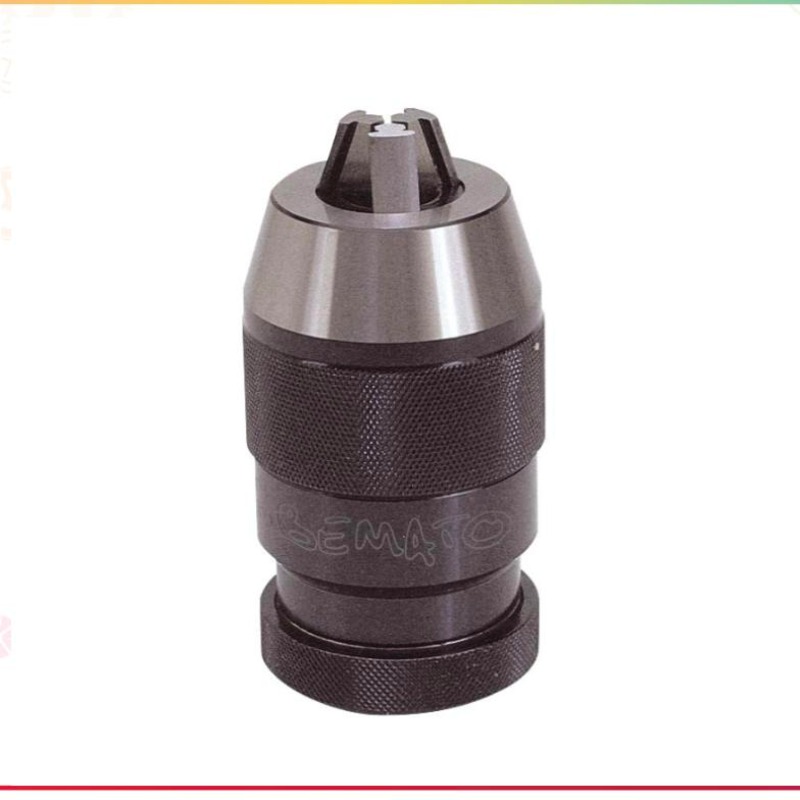

CHUCK BOR KEYESS
54100607~54100624
Keterangan
Spesifikasi

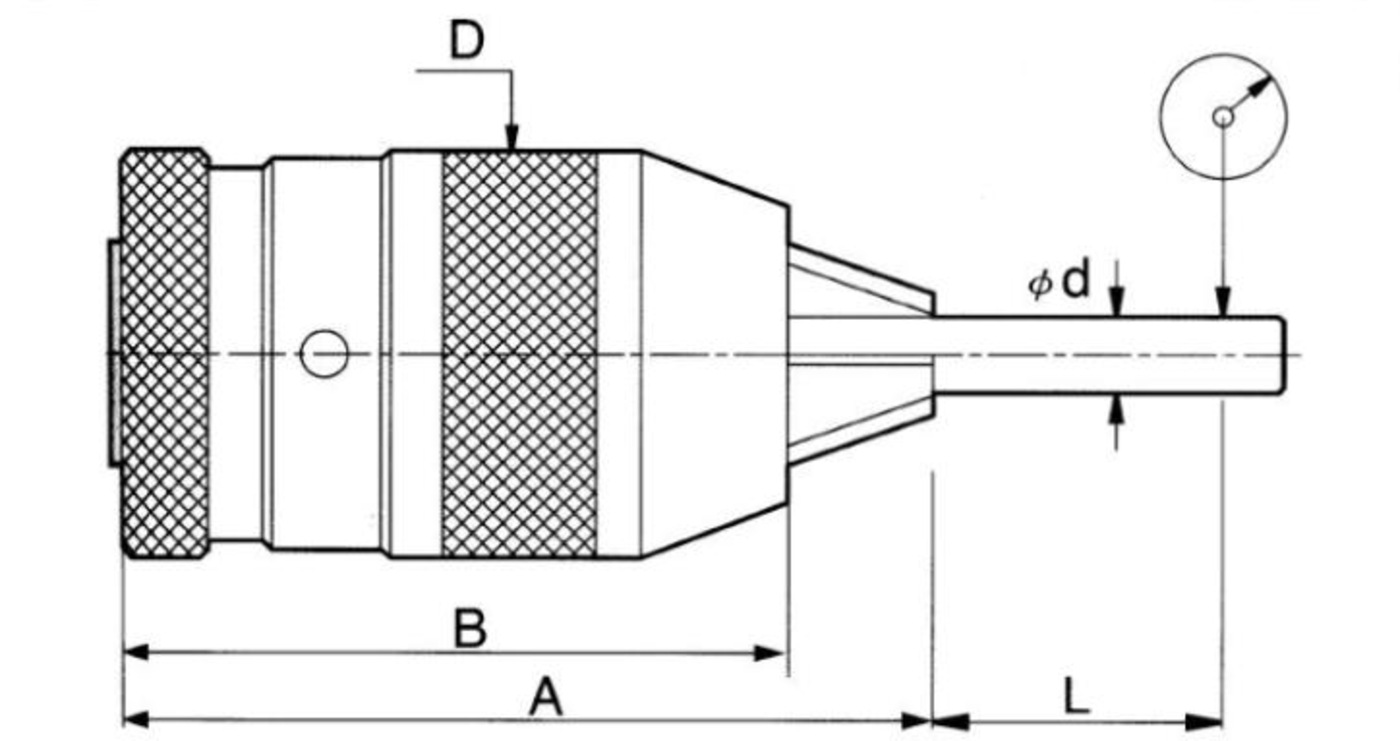

▼ KELURUSAN & TORSI
SATUAN: mm
| JENIS | ød | L | MAKSIMUM HABIS | Torsi (kg-cm) |
|---|---|---|---|---|
| 8XHSP | 3 | 35 | 0,05 | 160 |
| 8 | 50 | |||
| 10XHSP | 3 | 35 | 0,05 | 260 |
| 10 | 60 | |||
| 13XHSP | 5 | 55 | 0,05 | 400 |
| 10 | ||||
| 13 | 75 | |||
| 16XHSP | 5 | 55 | 0,05 | 480 |
| 10 | ||||
| 16 | 80 |
| NOMOR BARANG | JENIS | KAPASITAS PENJEPIT (mm/inci) | LUBANG TAPER DIN/JACOBS | DIAMETER BADAN (mm) |
|---|---|---|---|---|
| 54100607 | 6XH | 0,5-6,5 1/64"-1/4" |
B12 | 34 |
| 54100608 | J1 | 34 | ||
| 54100609 | B10 | 34 | ||
| 54100610 | 8XH | 0,5-8 1/64"-5/16" |
J1 | 34 |
| 54100611 | B10 | 34 | ||
| 54100612 | B12 | 34 | ||
| 54100613 | 10XH | 0,5-10 1/64"-3/8" |
J2 | 43 |
| 54100614 | J33 | 43 | ||
| 54100615 | B12 | 43 | ||
| 54100616 | B16 | 43 | ||
| 54100617 | 13XH | 0,5-13 1/64"-1/2" |
J2 | 51,5 |
| 54100618 | J6 | 51,5 | ||
| 54100619 | J33 | 51,5 | ||
| 54100620 | B16 | 51,5 | ||
| 54100621 | 16XH | 3-16 1/8"-5/8" |
J6 | 58 |
| 54100622 | B16 | 58 | ||
| 54100623 | B18 | 58 | ||
| 54100624 | J3 | 58 |
