TIPS UNTUK PENYANGGA SEKRUP
52171644, 52171645
Keterangan
Spesifikasi
UNT:mm

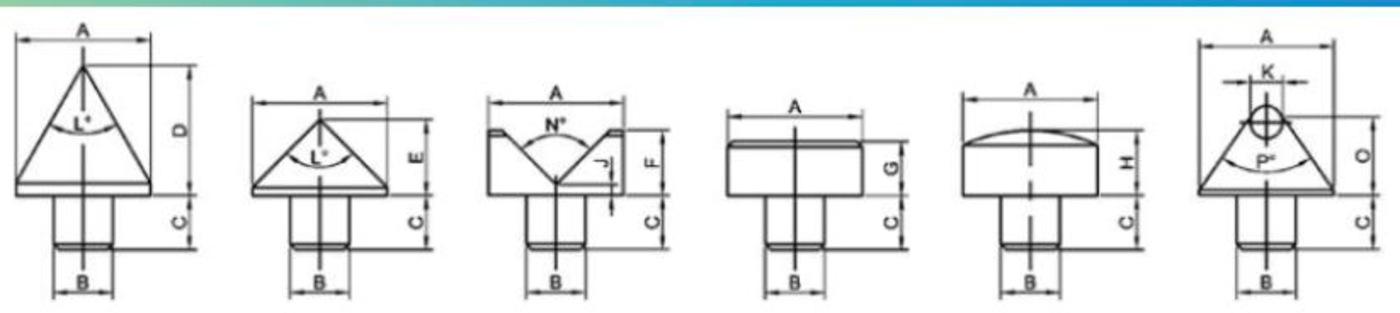

| NOMOR BARANG | MODEL | TIPS UNTUK PENYANGGA SEKRUP | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|---|
| 52171644 | KT-1A~KT-6A | FS70S, FS100S, MSS85, M SS110 | 25 | 11 | 10 | 24 | 14 | 12 |
| 52171645 | KT-1B~KT-6B | FS150S, FS250S, MSS165, MSS265 | 30 | 11 | 10 | 31 | 20.5 | 14 |
UNT:mm
| NOMOR BARANG | G | H | SAYA | J | K | L | M | N | HAI | P |
|---|---|---|---|---|---|---|---|---|---|---|
| 52171644 | 10 | 12 | 14 | 2 | 6 | 60 | 90 | 90 | 14.5 | 70 |
| 52171645 | 14 | 14 | 18 | 2 | 8 | 60 | 90 | 90 | 19 | 70 |
