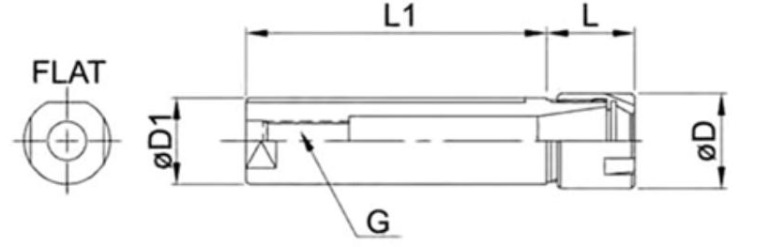

ST / ER-M STRAIGHT SHANK COLLET CHUCK WITH FLAT
52173325~52173332
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | JENIS | φD | φD1 | L | L1 | G | BERAT (kg) |
|---|---|---|---|---|---|---|---|
| 52173325 | ST20-ER11M-70-F | 16 | 20 | 15 | 70 | M6 x 1.0P | 0,17 |
| 52173326 | ST20-ER16M-70-F | 22 | 20 | 21 | 70 | M10 x 1.5P | 0,2 |
| 52173327 | ST22-ER16M-70-F | 22 | 23 | 70 | 0.3 | ||
| 52173328 | ST22-ER16M-100-F | 22 | 23 | 100 | 0,33 | ||
| 52173329 | ST22-ER16M-120-F | 22 | 23 | 120 | 0,35 | ||
| 52173330 | ST25-ER16M-70-F | 25 | 23 | 70 | 0,25 | ||
| 52173331 | ST3/4"-ER16M-70-F | 3/4" | 21 | 70 | 0,2 | ||
| 52173332 | ST25-ER20M-70-F | 28 | 25 | 27 | 70 | M12 x 1.75P | 0,32 |
