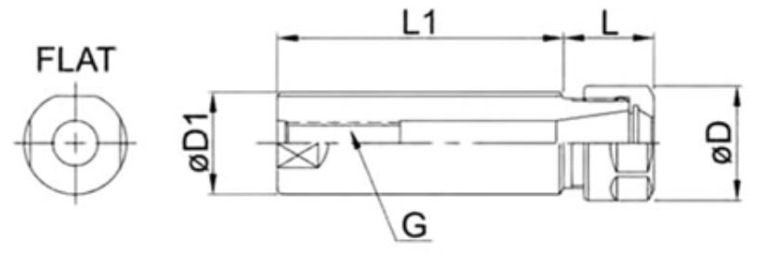

ST / ER STRAIGHT SHANK COLLET CHUCK WITH FLAT
52173318~52173324
Keterangan
Spesifikasi
SATUAN: mm
| NOMOR BARANG | JENIS | φD | φD1 | L | L1 | G | BERAT (kg) |
|---|---|---|---|---|---|---|---|
| 52173318 | ST20-ER11-70-F | 19 | 20 | 15 | 70 | M6 x 1.0P | 0,17 |
| 52173319 | ST20-ER16-70-F | 28 | 20 | 21 | 70 | M10 x 1.5P | 0,2 |
| 52173320 | ST22-ER16-70-F | 22 | 23 | 70 | 0,2 | ||
| 52173321 | ST25-ER16-70-F | 25 | 23 | 70 | 0,25 | ||
| 52173322 | ST3/4"-ER16-70-F | 3/4" | 21 | 70 | 0,2 | ||
| 52173323 | ST22-ER20-70-F | 34 | 22 | 27 | 70 | M12 x 1.75P | 0,25 |
| 52173324 | ST25-ER20-70-F | 25 | 27 | 70 | 0.3 |
