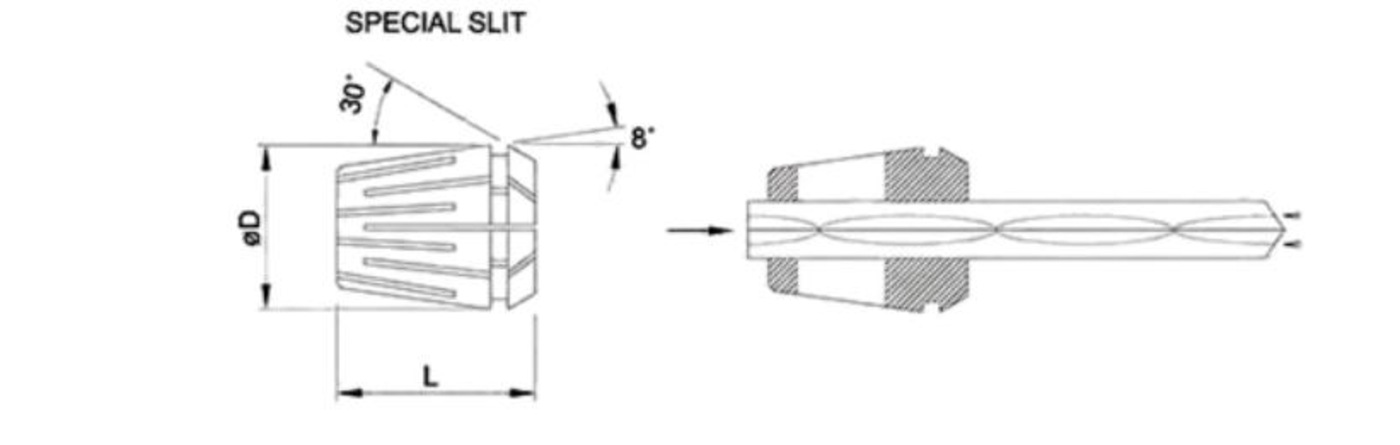

SISTEM KOLET PENDINGIN ER/CL
52172147~52172250, 52173338
Keterangan
Spesifikasi
SATUAN: mm
| JENIS | øD | L |
|---|---|---|
| ER16 | 16.7 | 27 |
| ER20 | 20.7 | 31 |
| ER25 | 25.7 | 35 |
| ER32 | 32.7 | 40 |
| ER40 | 40.7 | 46 |
ER25 CL
SATUAN: mm
| NOMOR BARANG | øD1 |
|---|---|
| 52172147 | 3 |
| 52172148 | 4 |
| 52172149 | 5 |
| 52172150 | 6 |
| 52172151 | 7 |
| 52172152 | 8 |
| 52172153 | 9 |
| 52172154 | 10 |
| 52172155 | 11 |
| 52172156 | 12 |
| 52172157 | 13 |
| 52172158 | 14 |
| 52172159 | 15 |
| 52172160 | 16 |
ER25 CL
SATUAN: inci
| NOMOR BARANG | øD1 |
|---|---|
| 52172161 | 1/8" |
| 52172162 | 5/32" |
| 52172163 | 3/16 inci |
| 52172164 | 7/32" |
| 52172165 | 1/4" |
| 52172166 | 9/32" |
| 52172167 | 5/16 inci |
| 52172168 | 11/32" |
| 52172169 | 3/8" |
| 52172170 | 13/32" |
| 52172171 | 7/16 inci |
| 52172172 | 15/32" |
| 52172173 | 1/2" |
| 52172174 | 17/32" |
| 52172175 | 9/16" |
| 52172176 | 19/32" |
| 52172177 | 5/8" |
ER32 CL
SATUAN: mm
| NOMOR BARANG | øD1 |
|---|---|
| 52172178 | 4 |
| 52172179 | 5 |
| 52172180 | 6 |
| 52172181 | 7 |
| 52172182 | 8 |
| 52172183 | 9 |
| 52172184 | 10 |
| 52172185 | 11 |
| 52172186 | 12 |
| 52172187 | 13 |
| 52172188 | 14 |
| 52172189 | 15 |
| 52172190 | 16 |
| 52172191 | 17 |
| 52172192 | 18 |
| 52172193 | 19 |
| 52172194 | 20 |
ER32 CL
SATUAN: inci
| NOMOR BARANG | øD1 |
|---|---|
| 52172195 | 5/32" |
| 52173338 | 3/16 inci |
| 52172196 | 7/32" |
| 52172197 | 1/4" |
| 52172198 | 9/32" |
| 52172199 | 5/16 inci |
| 52172200 | 11/32" |
| 52172201 | 3/8" |
| 52172202 | 13/32" |
| 52172203 | 7/16" |
| 52172204 | 15/32" |
| 52172205 | 1/2" |
| 52172206 | 17/32" |
| 52172207 | 9/16" |
| 52172208 | 19/32" |
| 52172209 | 5/8" |
| 52172210 | 21/32" |
| 52172211 | 11/16" |
| 52172212 | 23/32" |
| 52172213 | 3/4" |
| 52172214 | 25/32" |
ER40 CL
SATUAN: mm
| NOMOR BARANG | øD1 |
|---|---|
| 52172215 | 4 |
| 52172216 | 5 |
| 52172217 | 6 |
| 52172218 | 7 |
| 52172219 | 8 |
| 52172220 | 9 |
| 52172221 | 10 |
| 52172222 | 11 |
| 52172223 | 12 |
| 52172224 | 13 |
| 52172225 | 14 |
| 52172226 | 15 |
| 52172227 | 16 |
| 52172228 | 17 |
| 52172229 | 18 |
| 52172230 | 19 |
| 52172231 | 20 |
| 52172232 | 21 |
| 52172233 | 22 |
| 52172234 | 23 |
| 52172235 | 24 |
| 52172236 | 25 |
| 52172237 | 26 |
ER40 CL
SATUAN: inci
| NOMOR BARANG | øD1 |
|---|---|
| 52172238 | 1/4" |
| 52172239 | 5/16 inci |
| 52172240 | 3/8" |
| 52172241 | 7/16" |
| 52172242 | 1/2" |
| 52172243 | 9/16" |
| 52172244 | 5/8" |
| 52172245 | 11/16" |
| 52172246 | 3/4" |
| 52172247 | 13/16" |
| 52172248 | 7/8" |
| 52172249 | 15/16" |
| 52172250 | 1" |
