PENJEPIT KOLET HIDROLIK TERINTEGRASI SILINDER
51101091, 51101092
Keterangan
Spesifikasi

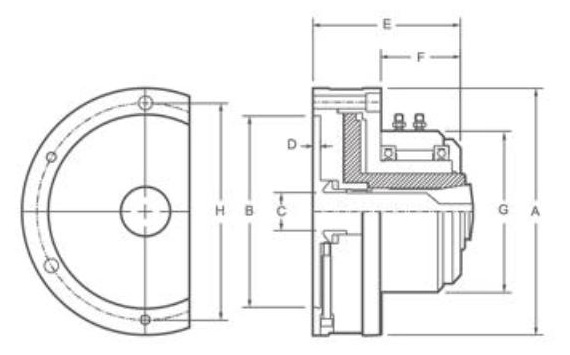

SATUAN: mm
| NOMOR BARANG | 51101091 | 51101092 |
|---|---|---|
| A | 168 (6,61") | 168 (6,61") |
| B | 130 (5,12") | 130 (5,12") |
| C | 26 (1,02") | 26 (1,02") |
| D | 5 (0,20") | 5 (0,20") |
| E | 100 (3,94") | 100 (3,94") |
| F | 55 (2,17") | 55 (2,17") |
| G | 110 (4,33") | 110 (4,33") |
| H | 147 (5,79) | 147 (5,79) |
| Lubang sekrup pemasangan | ø9.0 X 4 | ø9.0 X 4 |
| penjepit kerja | 5C Collet | Klem YB-25 |
| RPM Maksimum | 150 | 150 |
| Tekanan operasi | 3-15 kg/ cm² (43-215 psi) | 3-15 kg/ cm² (43-215 psi) |
| Lempar melalui lubang | 26 (1,02") | 26 (1,02") |
| Gaya penjepit | 9700 kgf@15kg/ cm² (21340 lbf@215 psi) | 9700 kgf@15 kg/ cm² (21340 lbf@215 psi) |
| Berat bersih | 10 kg (22 lbs) | 10 kg (22 lbs) |
