JEUX DE CALIBRES MÉTRIQUES RECTANGULAIRES - POUR ATELIER
50100422, 50100423, 50100424
Description
Spécification

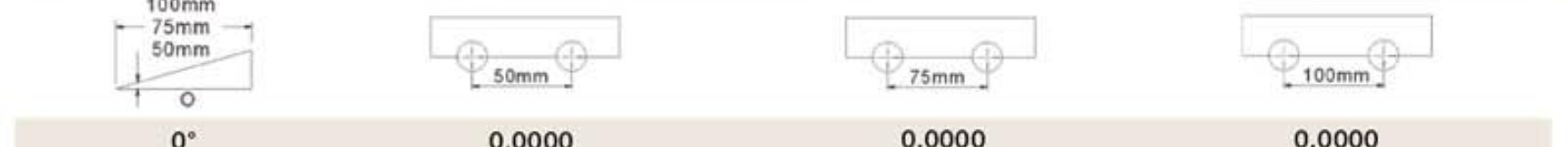

| ARTICLE N° | DISTANCE CENTRALE |
|---|---|
| 50100422 | 50 |
| 50100423 | 75 |
| 50100424 | 100 |
UNITÉ : mm
| ARTICLE N° | 50100422 | 50100423 | 50100424 |
|---|---|---|---|
| 0° | 0,0000 | 0,0000 | 0,0000 |
| 1° | 0,8726 | 1,3125 | 1,7452 |
| 2° | 1,7450 | 2,6175 | 3,4899 |
| 3° | 2,6168 | 3,9225 | 5,2336 |
| 4° | 3,4878 | 5.2350 | 69756 |
| 5° | 4,3578 | 6,5400 | 8,7155 |
| 6° | 5.2264 | 7,8375 | 10,4528 |
| 7° | 6,0935 | 9,1425 | 12.1869 |
| 8° | 6,9587 | 10.4400 | 13,9173 |
| 9° | 7,8217 | 11,7300 | 15,6434 |
| 10° | 8,6824 | 13.0200 | 17,3648 |
| 11° | 9,5404 | 14.3100 | 19.0809 |
| 12° | 10,3956 | 15,5925 | 20,7911 |
| 13° | 11,2476 | 16,8750 | 22,4951 |
| 14° | 12.0961 | 18.1425 | 24.1921 |
| 15° | 12,9410 | 19.4100 | 25,8819 |
| 16° | 13,7819 | 20,6700 | 27,5637 |
| 17° | 14,6186 | 21,9300 | 29.2371 |
| 18° | 15,4058 | 23,1750 | 30,9017 |
| 19° | 16,2784 | 24.4200 | 32,5586 |
| 20° | 17.1010 | 25,6500 | 34.2020 |
| 21° | 17,9184 | 26,8800 | 35,8367 |
| 22° | 18,7303 | 28.0950 | 37.4606 |
| 23° | 19,5366 | 29,3025 | 39.0713 |
| 24° | 20,3368 | 30,5025 | 40,6736 |
| 25° | 21.1309 | 31,6950 | 42,2618 |
| 26° | 21,9186 | 32,8800 | 43,8371 |
| 27° | 22,6995 | 34.0500 | 45,3990 |
| 28° | 23,4736 | 35,2125 | 46,9471 |
| 29° | 24.2405 | 36,3600 | 48.4809 |
| 30° | 25 0000 | 37,5000 | 50 0000 |
- JEUX DE CALIBRES MÉTRIQUES RECTANGULAIRES - POUR ATELIER
UNITÉ : mm
| ARTICLE N° | 50100422 | 50100423 | 50100424 |
|---|---|---|---|
| 30° | 25 0000 | 37,50000 | 50 0000 |
| 31° | 25,7519 | 38,6250 | 51,5038 |
| 32° | 26,4960 | 39,7425 | 52,9919 |
| 33° | 27.2320 | 40,8450 | 54,4639 |
| 34° | 27,9596 | 41,9400 | 55,9192 |
| 35° | 28,6788 | 43.0200 | 57,3576 |
| 36° | 29,3893 | 44,0850 | 58,7785 |
| 37° | 30.0908 | 45,1350 | 60,1815 |
| 38° | 307831 | 46,1775 | 61,5661 |
| 39° | 31,4660 | 47.1975 | 62,9320 |
| 40° | 32.1394 | 48.2100 | 64,2787 |
| 41° | 32,8030 | 49,2075 | 65.6059 |
| 42° | 33,4565 | 50,1825 | 66,9130 |
| 43° | 34,0999 | 51.1500 | 68.1988 |
| 44° | 34,7329 | 52.1025 | 69,4658 |
| 45° | 35,3553 | 53,0325 | 70,7106 |
| 46° | 35,9650 | 53,9475 | 71,9339 |
