BARRES D'ALÉSAGE (C-SCLP E-SCLP 95°)
55101310, 55101311, 55101312, 55101313, 55101314, 55101315/6, 55101317, 55101318, 55101319, 55101320, 55101321, 55101322/3
Description

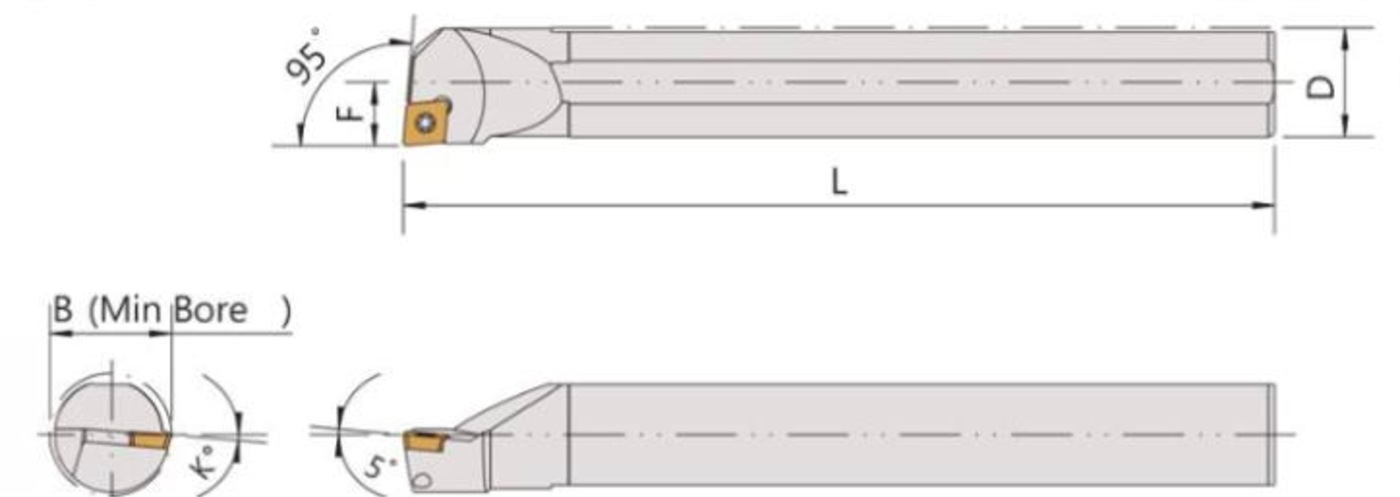

Spécification
UNITÉ : mm
| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | CLÉ | ||||
|---|---|---|---|---|---|---|---|---|---|
| Droite / Gauche | D | F | L | B | K° | ||||
| 55101310 | C10M-SCLPR08-12 | CPMT0802 | 10 | 6 | 150 | 12 | 7° | CS30070 | FT-10 |
| 55101311 | C12Q-SCLPR08-14 | CPMT0802 | 12 | 7 | 180 | 14 | 6° | CS30070 | FT-10 |
| 55101312 | C12Q-SCLPR09 | CPMT0903 | 12 | 9 | 180 | 16 | 6° | CS30090 | FT-15 |
| 55101313 | C16R-SCLPR09-18 | CPMT0903 | 16 | 9 | 200 | 18 | 7° | CS30090 | FT-15 |
| 55101314 | C20S-SCLPR09-22 | CPMT0903 | 20 | 11 | 250 | 22 | 5° | CS30090 | FT-15 |
| 55101315/6 R/L | C25T-SCLPR/L09-28 | CPMT0903 | 25 | 14,5 | 300 | 28 | 5° | CS30090 | FT-15 |
| 55101317 | E10Q-SCLPR08-12 | CPMT0802 | 10 | 6 | 180 | 12 | 7° | CS30070 | FT-10 |
| 55101318 | E12R-SCLPR08-14 | CPMT0802 | 12 | 7 | 200 | 14 | 6° | CS30070 | FT-10 |
| 55101319 | E12R-SCLPR09 | CPMT0903 | 12 | 9 | 200 | 16 | 6° | CS30090 | FT-15 |
| 55101320 | E16R-SCLPR09-18 | CPMT0903 | 16 | 9 | 200 | 18 | 7° | CS30090 | FT-15 |
| 55101321 | E20S-SCLPR09-22 | CPMT0903 | 20 | 11 | 250 | 22 | 5° | CS30090 | FT-15 |
| 55101322/3 R/L | E25T-SCLPR/L09-28 | CPMT0903 | 25 | 14,5 | 300 | 28 | 5° | CS30090 | FT-15 |
