BARRES D'ALÉSAGE (S-MTFN 91°)
55101217, 55101218, 55101219, 55101220, 55101221, 55101222, 55101223
Description
Spécification
UNITÉ : mm

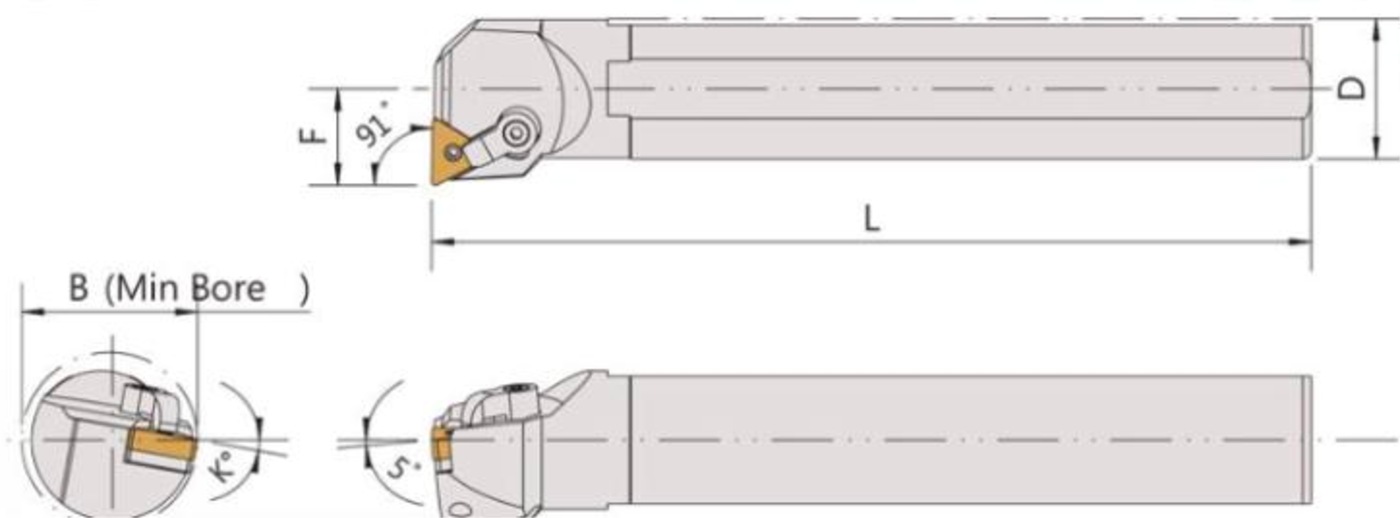

| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | CLÉ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Droite / Gauche | D | F | L | B | K° | ||||||||
| 55101217 D/L | S20R-MTFNR/L16 | TNMG1604 | 20 | 13 | 200 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| 55101218 D/G | S25R-MTFNR/L16 | TNMG1604 | 25 | 17 | 200 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101219 D/L | S32S-MTFNR/L16 | TNMG1604 | 32 | 22 | 250 | 40 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101220 D/L | S40T-MTFNR/L16 | TNMG1604 | 40 | 27 | 300 | 50 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101221 D/L | S50U-MTFNR/L16 | TNMG1604 | 50 | 35 | 350 | 63 | 8° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101222 D/L | S40T-MTFNR/L22 | TNMG2204 | 40 | 27 | 300 | 50 | 9° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
| 55101223 D/G | S50U-MTFNR/L22 | TNMG2204 | 50 | 35 | 350 | 63 | 7° | SMT-433 | LCS-617 | CP50-28 | CS7-8030 | LW030 | LW040 |
