OUTIL DE TOURNAGE EXTERNE (MTGN 91°)
55100834, 55100835, 55100836, 55100837
Description
Spécification

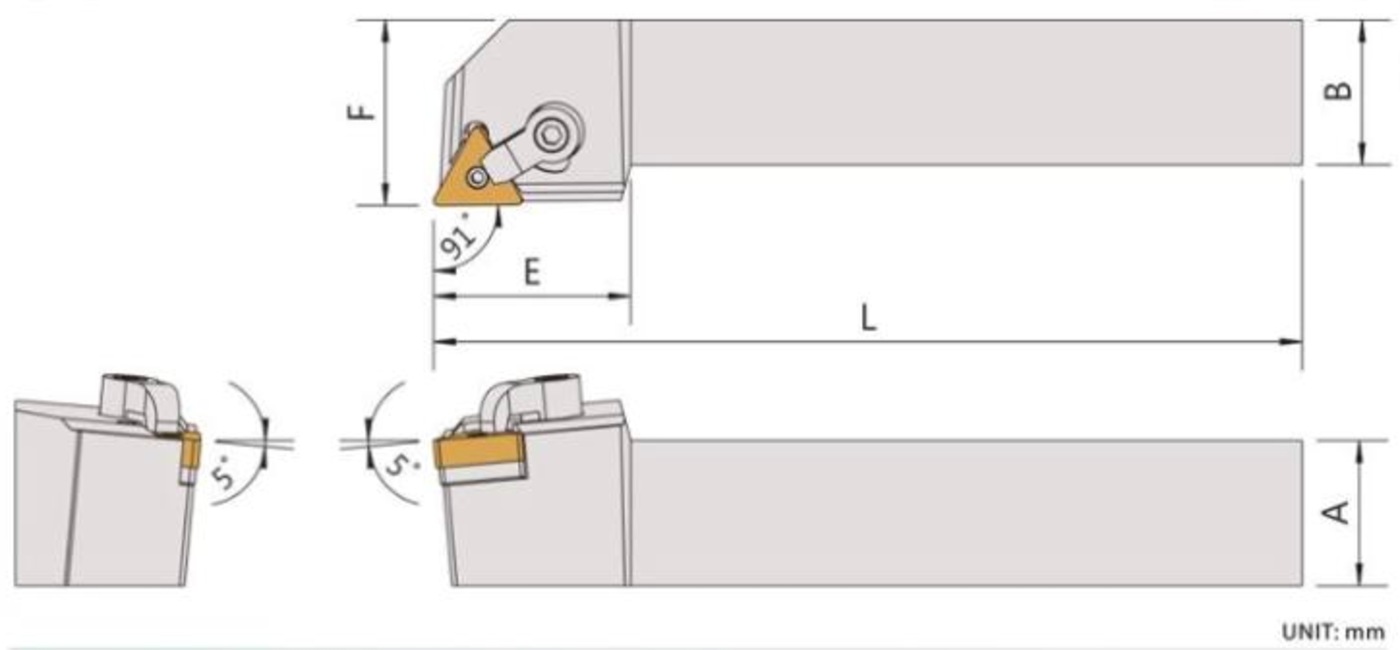

UNITÉ : mm
| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | CLÉ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Droite / Gauche | UN | B | L | E | F | ||||||||
| 55100834 D/L | MTGNR/L-1616H16 | TNMG1604 | 16 | 16 | 100 | 30 | 20 | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55100835 R/L | MTGNR/L-2020K16 | TNMG1604 | 20 | 20 | 125 | 34 | 25 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55100836 D/L | MTGNR/L-2525M16 | TNMG1604 | 25 | 25 | 150 | 34 | 32 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55100837 D/G | MTGNR/L-3232P16 | TNMG1604 | 32 | 32 | 170 | 34 | 40 | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
