OUTIL DE TOURNAGE EXTERNE (MSKN 75°)
55100815, 55100816, 55100817, 55100818, 55100819, 55100820, 55100821, 55100822
Description
Spécification

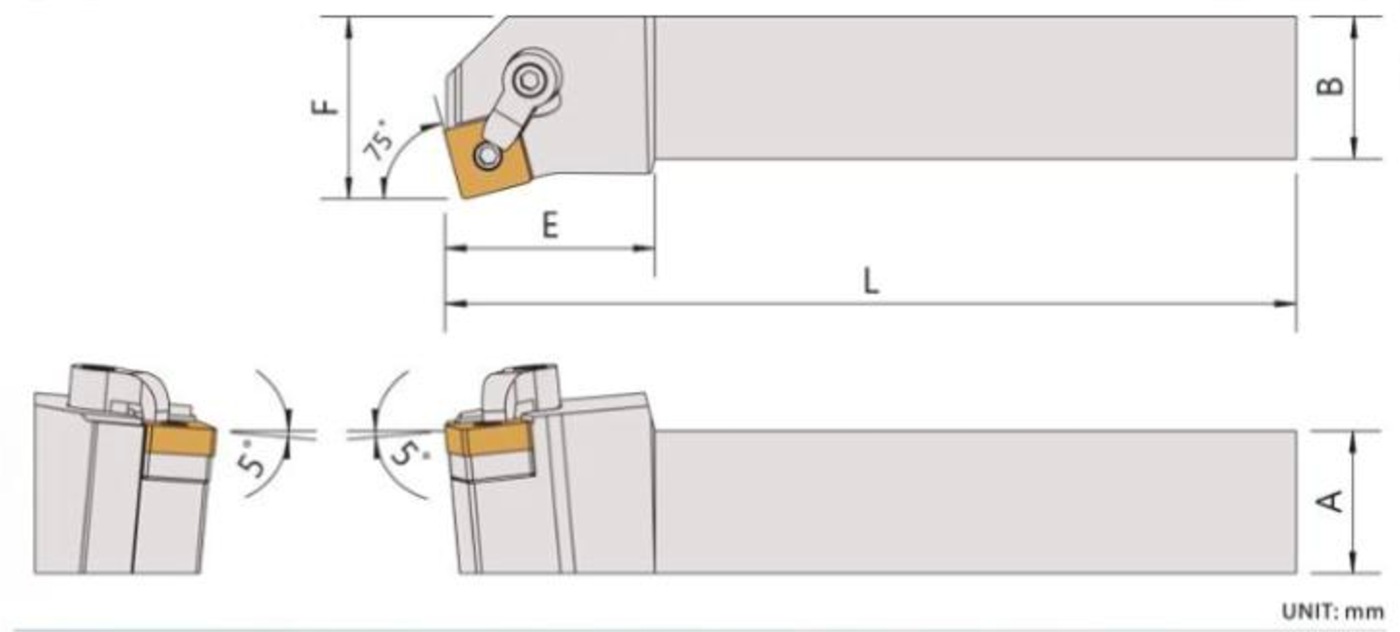

UNITÉ : mm
| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | CLÉ | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Droite / Gauche | UN | B | L | E | F | |||||||
| 55100815 D/G | MSKNR/L-2020K12 | SNMG1204 | 20 | 20 | 125 | 37 | 25 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100816 D/L | MSKNR/L-2525M12 | SNMG1204 | 25 | 25 | 150 | 37 | 32 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100817 D/L | MSKNR/L-3225P12 | SNMG1204 | 32 | 25 | 170 | 42 | 32 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100818 D/G | MSKNR/L-3232P12 | SNMG1204 | 32 | 32 | 170 | 42 | 40 | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
| 55100819 D/L | MSKNR/L-2525M15 | SNMG1506 | 25 | 25 | 150 | 37 | 32 | SMS-432 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100820 D/L | MSKNR/L-3225P15 | SNMG1506 | 32 | 25 | 170 | 42 | 32 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100821 D/L | MSKNR/L-3232P15 | SNMG1506 | 32 | 32 | 170 | 42 | 40 | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | LW030 |
| 55100822 D/L | MSKNR/L-4040R19 | SNMG1906 | 40 | 40 | 200 | 42 | 50 | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | LW040 |
