OUTIL DE TOURNAGE EXTERNE (MCLN 95°)

OUTIL DE TOURNAGE EXTERNE (MCLN 95°)

OUTIL DE TOURNAGE EXTERNE (MCLN 95°)

55100746, 55100747, 55100748, 55100749, 55100750, 55100751, 55100752, 55100753, 55100754 ~ 55100758

Description

Spécification

UNITÉ : mm

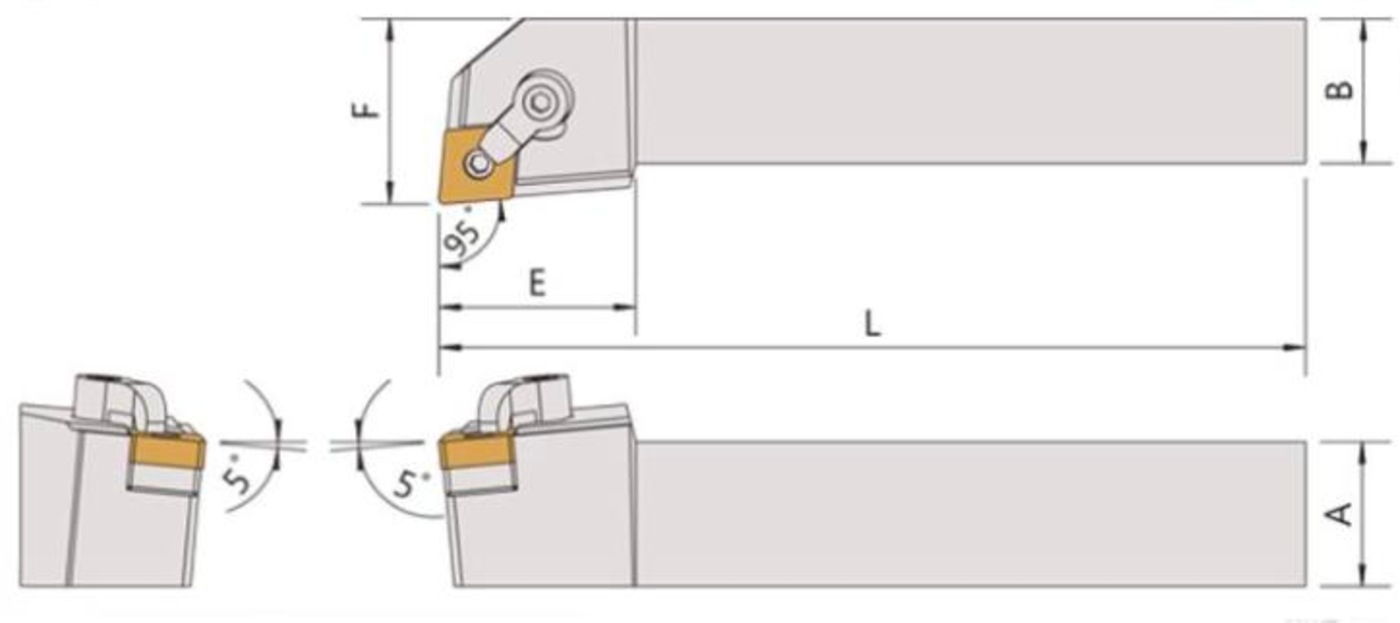

ARTICLE N° MODÈLE INSÉRER DIMENSIONS PARTIES CLÉ
Droite / Gauche   UN B L E F
55100746 R/L MCLNR/L-1616H12 CNMG1204 16 16 100 30 20 SMC-432 LCS-617 CP50-22 CS7-6024 LW030
55100747 D/L MCLNR/L-2020K12 CNMG1204 20 20 125 34 25 SMC-432 LCS-617 CP50-22 CS7-6030 LW030
55100748 D/G MCLNR/L-2525M12 CNMG1204 25 25 150 34 32 SMC-432 LCS-617 CP50-22 CS7-6030 LW030
55100749 D/L MCLNR/L-3225P12 CNMG1204 32 25 170 34 32 SMC-432 LCS-617 CP50-22 CS7-6030 LW030
55100750 D/L MCLNR/L-3232P12 CNMG1204 32 32 170 34 40 SMC-432 LCS-617 CP50-22 CS7-6030 LW030
55100751 D/L MCLNR/L-2525M16 CNMG1606 25 25 150 34 32 SMC-533 LCS-0822 CP50-22 CS7-6030 LW030
55100752 D/L MCLNR/L-3225P16 CNMG1606 32 25 170 34 32 SMC-533 LCS-0822 CP50-22 CS7-6030 LW030
55100753 R/L MCLNR/L-3232P16 CNMG1606 32 32 170 34 40 SMC-533 LCS-0822 CP50-22 CS7-6030 LW030
55100754 D/L MCLNR/L-4040S16 CNMG1606 40 40 250 34 50 SMC-533 LCS-0822 CP50-22 CS7-6030 LW030
55100755 R/L MCLNR/L-2525M19 CNMG1906 25 25 150 40 32 SMC-633 LC S-1022 CP50-29 CS7-8030 LW040
55100756 D/L MCLNR/L-3225P19 CNMG1906 32 25 170 43 32 SMC-633 LCS-1022 CP50-29 CS7-8030 LW040
55100757 D/L MCLNR/L-3232P19 CNMG1906 32 32 170 43 40 SMC-633 LCS-1022 CP50-29 CS7-8030 LW040
55100758 D/G MCLNR/L-4040S19 CNMG1906 40 40 250 40 50 SMC-633 LCS-1022 CP50-29 CS7-8030 LW040
