OUTIL DE TOURNAGE EXTERNE (DCLN 95° TYPE D)
55100178, 55100179, 55100180, 55100181, 55100182, 55100183
Description

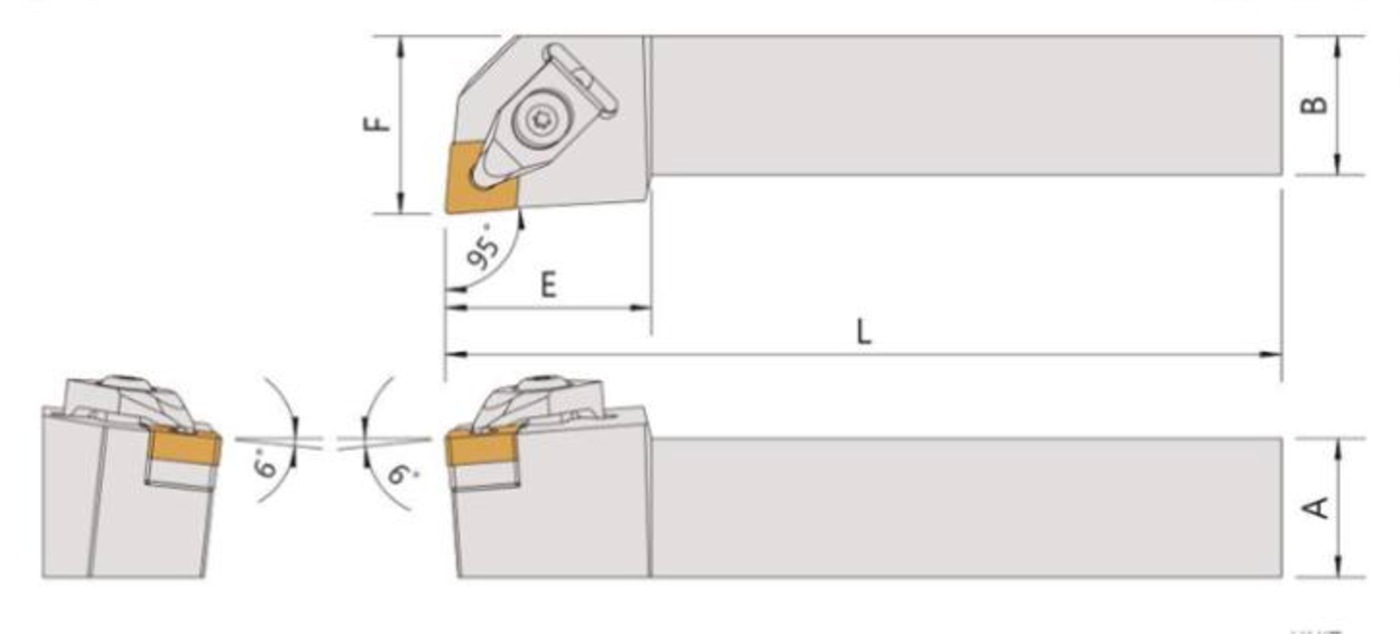

Spécification
UNITÉ : mm
| ARTICLE N° | MODÈLE | INSÉRER | DIMENSIONS | PARTIES | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Droite / Gauche | UN | B | C | E | F | |||||||||
| 55100178 D/G | DCLNR/L-1616H09 | CNMG 09T3 |
09T3○○ | 16 | 16 | 100 | 32 | 20 | SMC-322 | CSF-3008 | CP-D2 | SP0612 | CSB0415T | TL15 |
| 55100179 D/L | DCLNR/L-2020K09 | 09T3○○ | 20 | 20 | 125 | 32 | 25 | SMC-322 | CSF-3008 | CP-D2 | SP0612 | CSB0415T | TL15 | |
| 55100180 D/L | DCLNR/L-2525M09 | 09T3○○ | 25 | 25 | 150 | 32 | 32 | SMC-322 | CSF-3008 | CP-D2 | SP0612 | CSB0415T | TL15 | |
| 55100181 D/L | DCLNR/L-2020K12 | CNMG 1204 |
1204○○ | 20 | 20 | 125 | 37 | 25 | SMC-432 | CSF-4010 | CP-D4 | SP0816 | CSB0620T | TL20 |
| 55100182 D/L | DCLNR/L-2525M12 | 1204○○ | 25 | 25 | 150 | 37 | 32 | SMC-432 | CSF-4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
| 55100183 D/L | DCLNR/L-3232P12 | 1204○○ | 32 | 32 | 170 | 37 | 32 | SMC-432 | CSF-4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
