TÊTES D'ALÉSAGE DE FINITION PETIT DIAMÈTRE IBJ + QUEUE ICK
52171913, 52171914, 52171915, 52171916, 52171917, 52171918, 52171919, 52171920, 52171921
Description
Spécification
MAS 403 BT

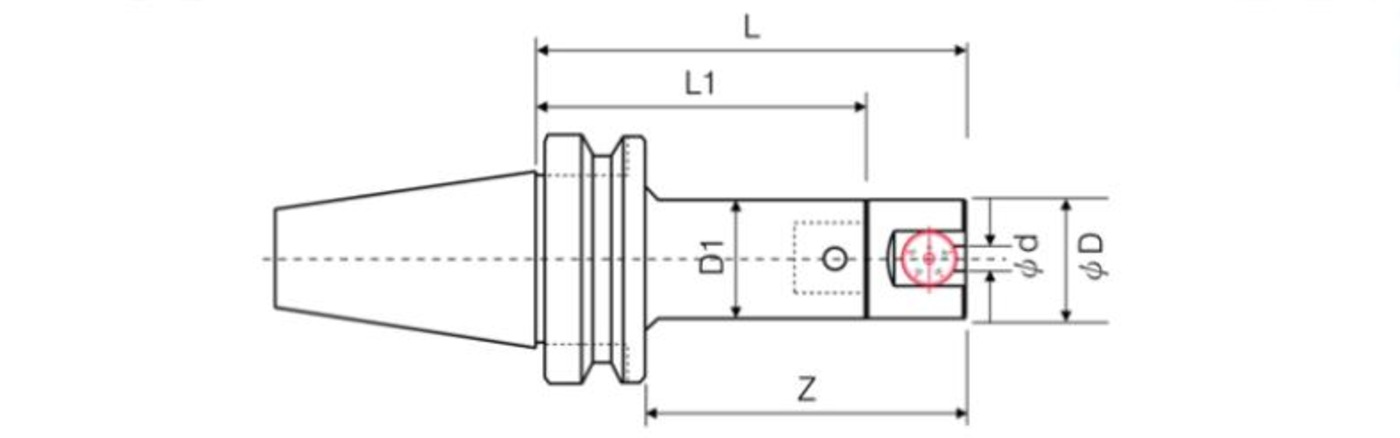

UNITÉ : mm
| ARTICLE N° | TAPER | F | Z | ICK120 JARRET |
IBJ ENNUYEUX TÊTE |
BEURK NON. |
L | L1 | D1 | d | POIDS (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52171913 | BT30-IBJ10-100 | 0-2.0 | 70 | BT30-ICK4-070 | IBJ10 | 4 | 100 | 70 | 39 | 10 | 1.2 |
| 52171914 | BT30-IBJ12-100 | 0-3,5 | 70 | BT30-ICK5-060 | IBJ12 | 5 | 100 | 60 | 50 | 12 | 1.6 |
| 52171915 | BT30-IBJ16-110 | 0-5.0 | 80 | BT30-ICK6-060 | IBJ16 | 6 | 110 | 60 | 64 | 16 | 2.4 |
| 52171916 | BT40-IBJ10-115 | 0-2.0 | 75 | BT40-ICK4-085 | IBJ10 | 4 | 115 | 85 | 39 | 10 | 1.7 |
| 52171917 | BT40-IBJ12-115 | 0-3,5 | 75 | BT40-ICK5-075 | IBJ12 | 5 | 115 | 75 | 50 | 12 | 2.1 |
| 52171918 | BT40-IBJ16-115 | 0-5.0 | 75 | BT40-ICK6-065 | IBJ16 | 6 | 115 | 65 | 64 | 16 | 2.7 |
| 52171919 | BT50-IBJ10-145 | 0-2.0 | 95 | BT50-ICK4-115 | IBJ10 | 4 | 145 | 115 | 39 | 10 | 4.7 |
| 52171920 | BT50-IBJ12-145 | 0-3,5 | 95 | BT50-ICK5-105 | IBJ12 | 5 | 145 | 105 | 50 | 12 | 5.3 |
| 52171921 | BT50-IBJ16-145 | 0-5.0 | 95 | BT50-ICK6-095 | IBJ16 | 6 | 145 | 95 | 64 | 16 | 5.9 |
