Tête d'ébauche à double bac indexable ICK-LA pour alésage de grands trous / +queue ICK120
52171794~52171811
Description
Spécification
| ENSEMBLE | UNITÉ : UNITÉ : mm |

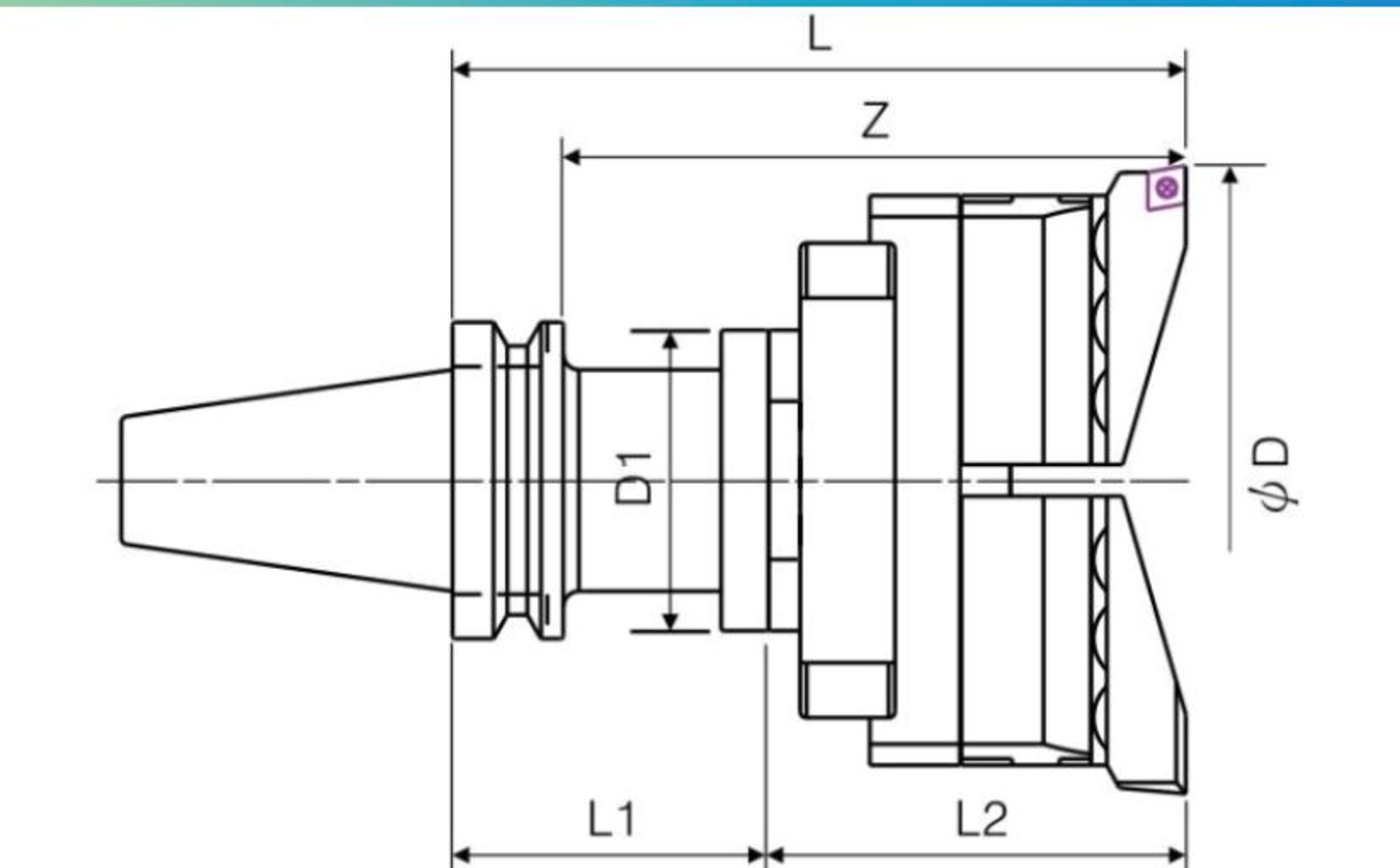

| ARTICLE N° | TAPER | D | Z | ICK120 JARRET |
Beurk, c'est ennuyeux TÊTE |
BEURK NON. |
L | L1 | D1 | ACIER ALLIÉ POIDS |
ALUMINIUM POIDS DE L'ALLIAGE |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 52171794 | BT50-ICK200LA-230 | 200-310 | 185 | BT50-ICK120-100 | ICK200LA | ICK120 | 230 | 100 | 95 | 18 kg | 15,7 kg |
| 52171795 | BT50-ICK200LA-330 | 285 | BT50-ICK120-200 | 330 | 200 | 19 kg | 16,7 kg | ||||
| 52171796 | BT50-ICK200LA-430 | 385 | BT50-ICK120-300 | 430 | 300 | 23 kg | 20,7 kg | ||||
| 52171797 | BT50-ICK200LA-530 | 485 | BT50-ICK120-400 | 530 | 400 | 27 kg | 24,7 kg | ||||
| 52171798 | BT50-ICK300LA-230 | 300-410 | 185 | BT50-ICK120-100 | ICK300LA | 230 | 100 | 20 kg | 16,5 kg | ||
| 52171799 | BT50-ICK300LA-330 | 285 | BT50-ICK120-200 | 330 | 200 | 21 kg | 17,5 kg | ||||
| 52171800 | BT50-ICK300LA-430 | 385 | BT50-ICK120-300 | 430 | 300 | 25 kg | 21,5 kg | ||||
| 52171801 | BT50-ICK300LA-530 | 485 | BT50-ICK120-400 | 530 | 400 | 29 kg | 25,5 kg | ||||
| 52171802 | BT50-ICK400LA-230 | 400-510 | 185 | BT50-ICK120-100 | ICK400LA | 230 | 100 | 22 kg | 17,3 kg | ||
| 52171803 | BT50-ICK400LA-330 | 285 | BT50-ICK120-200 | 330 | 200 | 23 kg | 18,3 kg | ||||
| 52171804 | BT50-ICK400LA-430 | 385 | BT50-ICK120-300 | 430 | 300 | 27 kg | 22,3 kg | ||||
| 52171805 | BT50-ICK400LA-530 | 485 | BT50-ICK120-400 | 530 | 400 | 31 kg | 26,3 kg | ||||
| 52171806 | BT50-ICK500LA-230 | 500-610 | 185 | BT50-ICK120-100 | ICK500LA | 230 | 100 | 24 kg | 18,1 kg | ||
| 52171807 | BT50-ICK500LA-330 | 285 | BT50-ICK120-200 | 330 | 200 | 25 kg | 19,1 kg | ||||
| 52171808 | BT50-ICK500LA-430 | 385 | BT50-ICK120-300 | 430 | 300 | 29 kg | 23,1 kg | ||||
| 52171809 | BT50-ICK500LA-530 | 485 | BT50-ICK120-400 | 530 | 400 | 33 kg | 27,1 kg | ||||
| 52171810 | BT50-ICK600LA-230 | 600-950 | 185 | BT50- FMA47.625-75 |
ICK600LA | FMA 47,625 |
230 | 75 | 128 | 40 kg | 20,7 kg |
| 52171811 | BT50-ICK900LA-230 | 900-1250 | 185 | ICK900LA | 230 | 75 | 50 kg | 24,2 kg |
