Système de mandrin à pince MT/ER
52100567~52100578
Description
Spécification

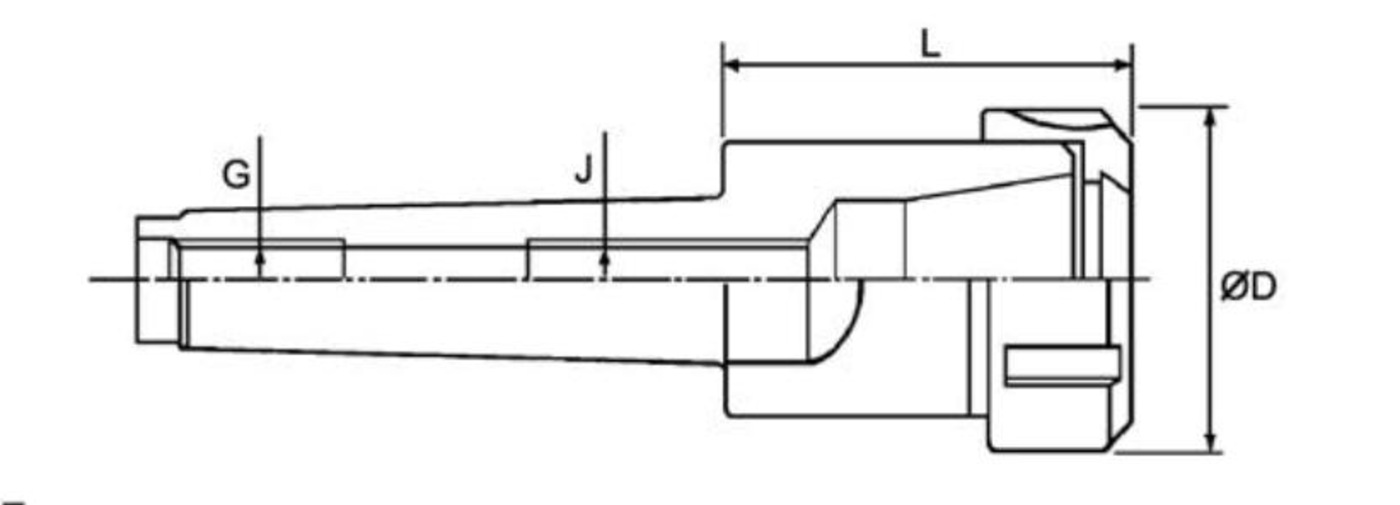

MT / ER TYPE
UNITÉ : mm
| ARTICLE N° | TAPER | L | øD | COLLET | POIDS (kg) | BARRE DE TRACTION G |
|---|---|---|---|---|---|---|
| 52100567 | MTB2-ER16-40 | 40 | 28 | ER16 | 0,2 | 1. M10 x 1,5P 2. 3/8"-16 |
| 52100568 | MTB2-ER20-43 | 43 | 34 | ER20 | 0,2 | |
| 52100569 | MTB2-ER25-47 | 47 | 42 | ER25 | 0,3 | |
| 52100570 | MTB3-ER16-40 | 40 | 28 | ER16 | 0,3 | 1. M12 x 1,75P 2. M10 x 1,5P 3. 1/2"-12 4. 3/8"-16 |
| 52100571 | MTB3-ER20-43 | 43 | 34 | ER20 | 0,3 | |
| 52100572 | MTB3-ER25-47 | 47 | 42 | ER25 | 0,4 | |
| 52100573 | MTB3-ER32-70 | 70 | 50 | ER32 | 0,55 | |
| 52100574 | MTB3-ER40-80 | 80 | 63 | ER40 | 0,85 | |
| 52100575 | MTB4-ER32-60 | 60 | 50 | ER32 | 0,6 | 1. M16 x 2,0P 2. 5/8"-11 |
| 52100576 | MTB4-ER40-82 | 82 | 63 | ER40 | 1 | |
| 52100577 | MTB5-ER40-82 | 82 | 63 | ER40 | 1.8 | 1. M24 x 3,0P 2. 1"-8 |
| 52100578 | MTB5-ER50-85 | 85 | 78 | ER50 | 2.5 |
