HERRAMIENTA DE TORNEADO EXTERNO (DDJN 93° - TIPO D)
55101158, 55101159, 55101160, 55101162, 55101163, 55101164
Descripción
Especificación

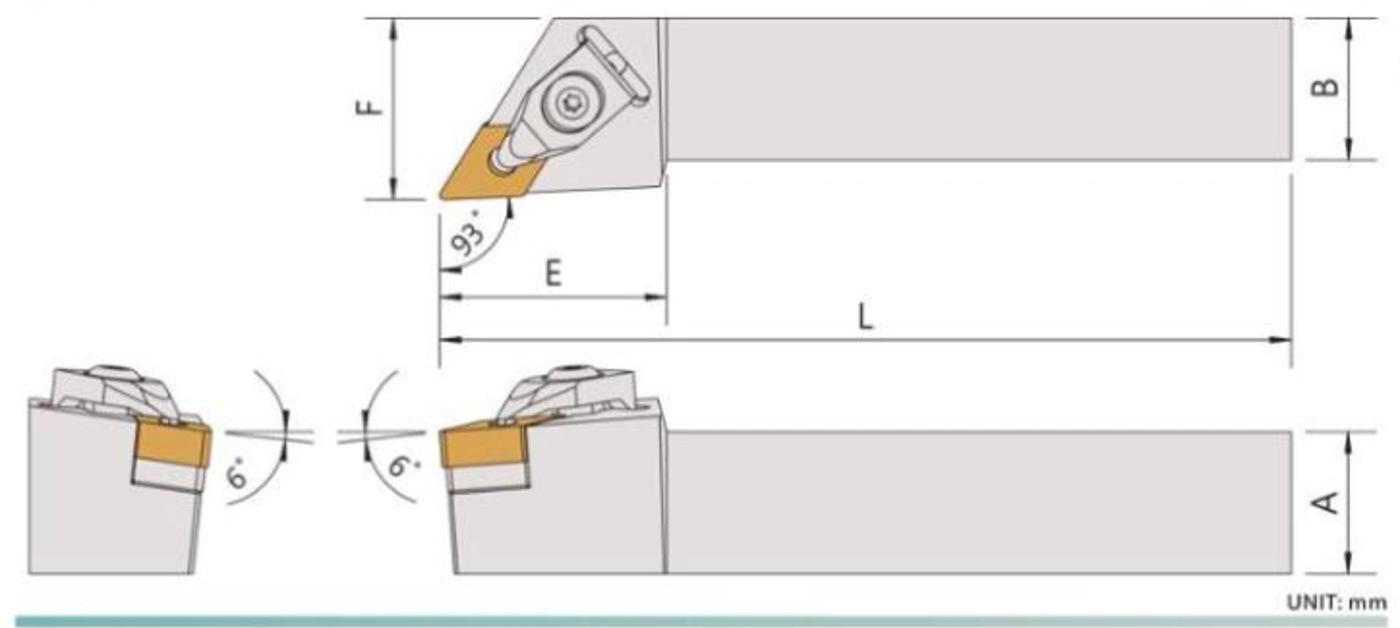

UNIDAD: mm
| NÚMERO DE ARTÍCULO | MODELO | INSERTAR | DIMENSIONES | REGIONES | LLAVE INGLESA | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Derecha / Izquierda | A | B | L | mi | F | ||||||||
| 55101158 R/L | DDJNR/L1616H11 | DNMG1104 | 16 | 16 | 100 | 34 | 20 | SMD-343 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 |
| 55101159 R/L | DDJNR/L2020K11 | 20 | 20 | 125 | 34 | 25 | SMD-343 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 | |
| 55101160 R/L | DDJNR/L2525M11 | 25 | 25 | 150 | 34 | 32 | SMD-343 | CS40075 | CP-D2 | SP0612 | CSB0415T | TL15 | |
| 55101162 R/L | DDJNR/L2020K15 | DNMG1504-SMD463 DNMG1506-SMD443 |
25 | 25 | 150 | 40 | 32 | SMD-4X3 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 |
| 55101163 R/L | DDJNR/L2525M15 | 20 | 20 | 125 | 42 | 25 | SMD-4X3 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
| 55101164 R/L | DDJNR/L3232P15 | 32 | 32 | 170 | 40 | 40 | SMD-4X3 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
