Vertical Machining Center

Vertical machining centers combine a vertical spindle, programmable three-axis motion and automatic tool change in an enclosed working area. They mill, drill, bore and tap in a single setup, covering everything from small precision parts to moulds and dies with high accuracy and repeatability.

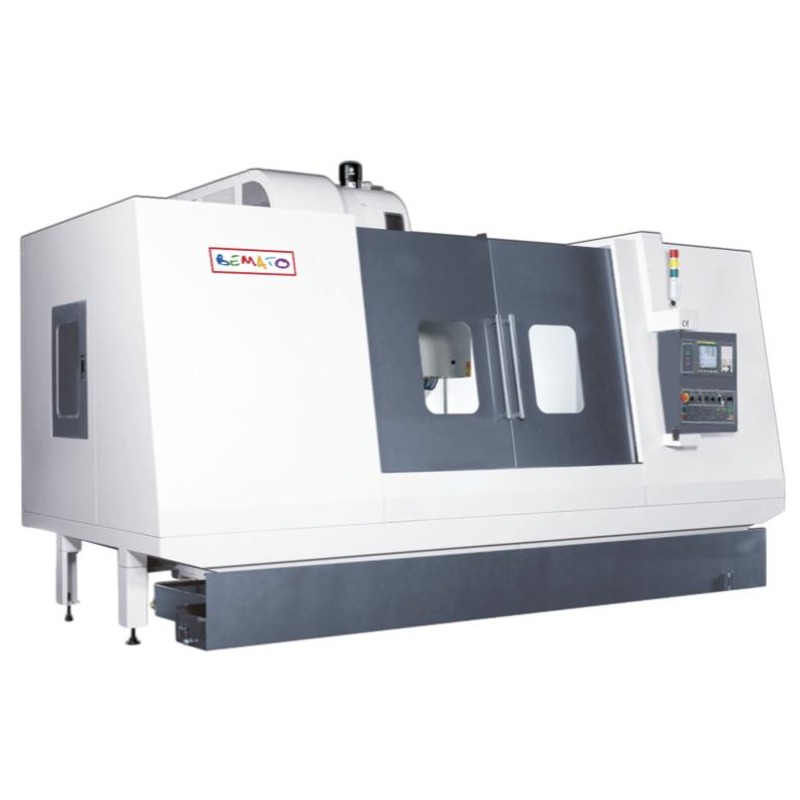

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 660BV

Table Size｜800 x 450 mm
X/Y/Z travel｜660 x 480 x 450 mm

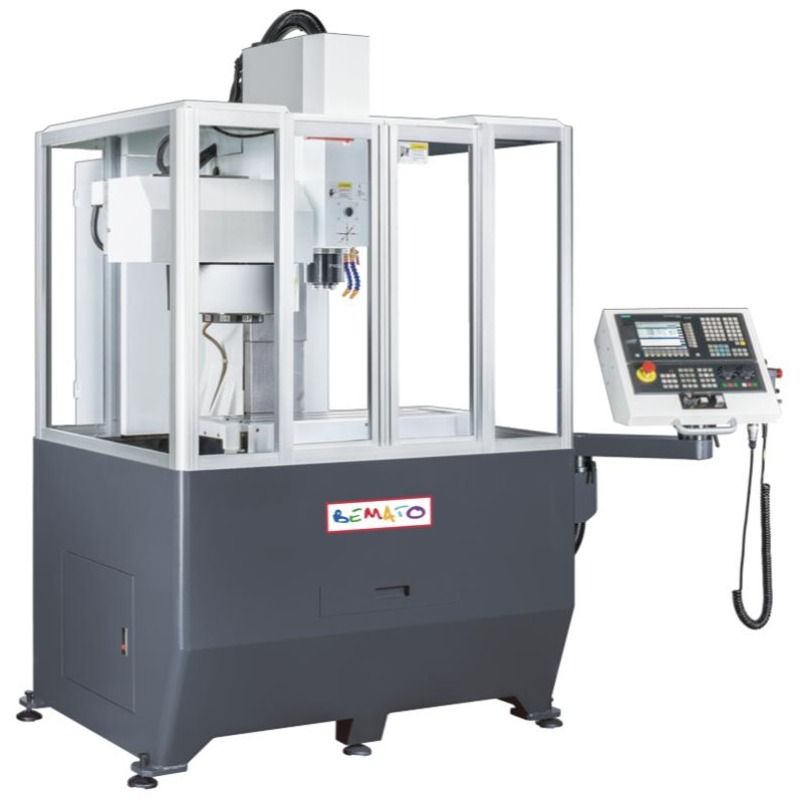

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 400S

Table Size｜600 x 300 mm
X/Y/Z travel｜400 x 300 x 500 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 400B(BT30), BMT 400B(BT40)

Table Size｜810 x 250 mm
X/Y/Z travel｜350 x 210 x 340 mm / 350 x 240 x 400 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 600M

Table Size｜700 x 450 mm
X/Y/Z travel｜660 x 460 x 500 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 550HV, BMT 800HV

Table Size｜650 x 410 mm / 900 x 500 mm
X/Y/Z travel｜550 x 400 x 460 mm / 800 x 500 x 580 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 850HV, BMT 1020HV, BMT 1100HV, BMT 1200HV

Table Size｜1020 x 550 mm / 1190 x 550 mm / 1250 x 630 mm / 1350 x 630 mm
X/Y/Z travel｜850 x 550x 580 mm / 1020 x 550x 580 mm / 1100 x 650x 610 mm / 1200 x 650x 610 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1300HV, BMT 1500HV, BMT 1600HV

Table Size｜1300 x 750 mm / 1500 x 750 mm / 1650 x 750 mm
X/Y/Z travel｜1300 x 750 x 700 mm / 1500 x 750 x 700 mm / 1600 x 750 x 700 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1050, BMT 1060

Table Size｜1200 x 500 mm / 1300 x 600 mm
X/Y/Z travel｜1000 x 500 x 570 mm / 1000 x 600 x 570 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1170, BMT 1370

Table Size｜1270 x 660 mm / 1500 x 660 mm
X/Y/Z travel｜1100 x 700 x 670 mm / 1300 x 700 x 670 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1100MV, BMT 1200MV, BMT 1400MV

Table Size｜1250 x 650 mm / 1350 x 650 mm / 1550 x 700 mm
X/Y/Z travel｜1100 x 600 x 600 mm / 1200 x 650 x 600 mm / 1400 x 720 x 610 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1200MD, BMT 1400MD

Table Size｜1300 x 620 mm / 1500 x 620 mm
X/Y/Z travel｜1220 x 660 x 610 mm / 1420 x 660 x 610 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1368, BMT 1568

Table Size｜1500 x 600 mm / 1700 x 600 mm
X/Y/Z travel｜1300 x 680 x 670 mm / 1500 x 680 x 670 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1600MV, BMT 1800MV

Table Size｜1800 x 850 mm / 2050 x 900 mm
X/Y/Z travel｜1600 x 850 x 750 mm / 1600 x 850 x 750 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1800HV, BMT 2000HV

Table Size｜1850 x 900 mm / 2050 x 900 mm
X/Y/Z travel｜1800 x 900 x 750 mm / 2000 x 900 x 750 mm

VERTICAL MACHINING CENTER

VERTICAL MACHINING CENTER

BMT 1800MD, BMT 2000MD

Table Size｜1900 x 800 mm / 2100 x 800 mm
X/Y/Z travel｜1800 x 820 x 820 mm / 2000 x 820 x 820 mm

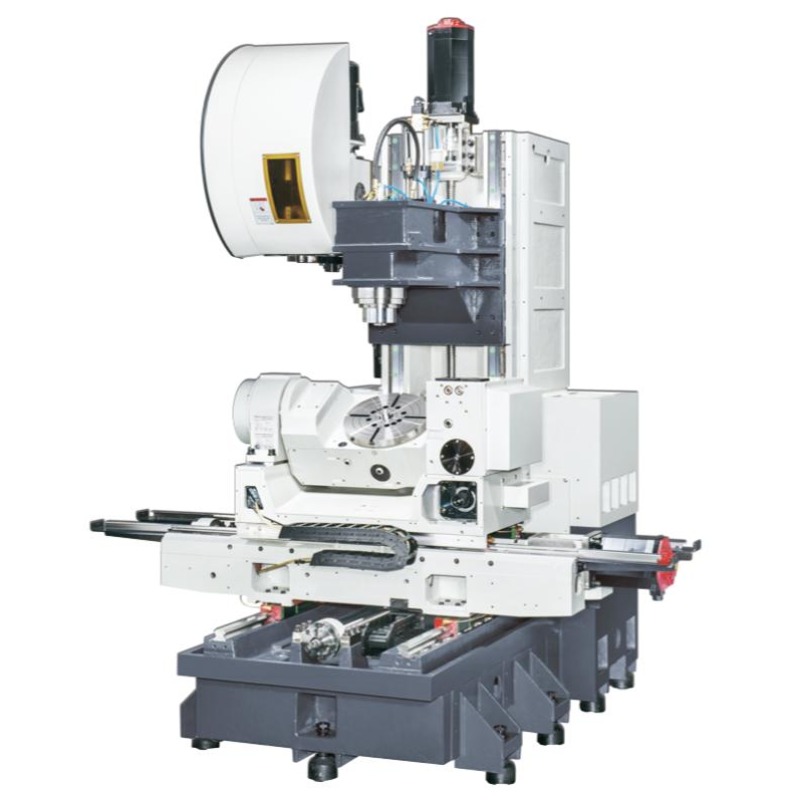

VERTICAL MACHINING CENTER (5 AXIS)

VERTICAL MACHINING CENTER (5 AXIS)

BMT 320-5 AXIS

Table Size｜320 mm
X/Y/Z travel｜560 x 400 x 400 mm

VERTICAL MACHINING CENTER (5 AXIS)

VERTICAL MACHINING CENTER (5 AXIS)

BMT 320-5 AXIS2

Table Size｜320 mm
X/Y/Z travel｜410 x 600 x 510 mm

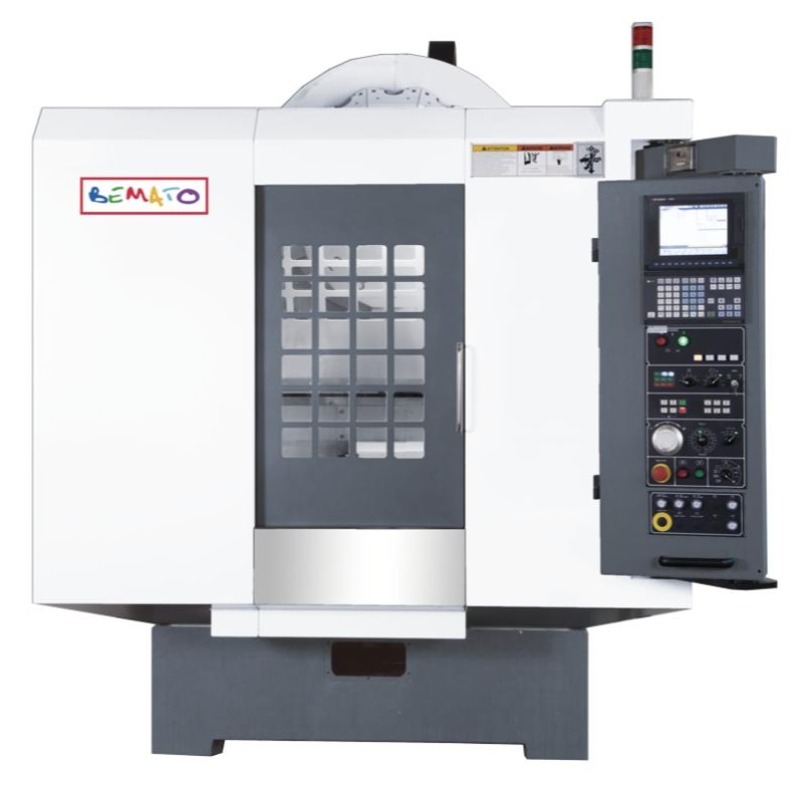

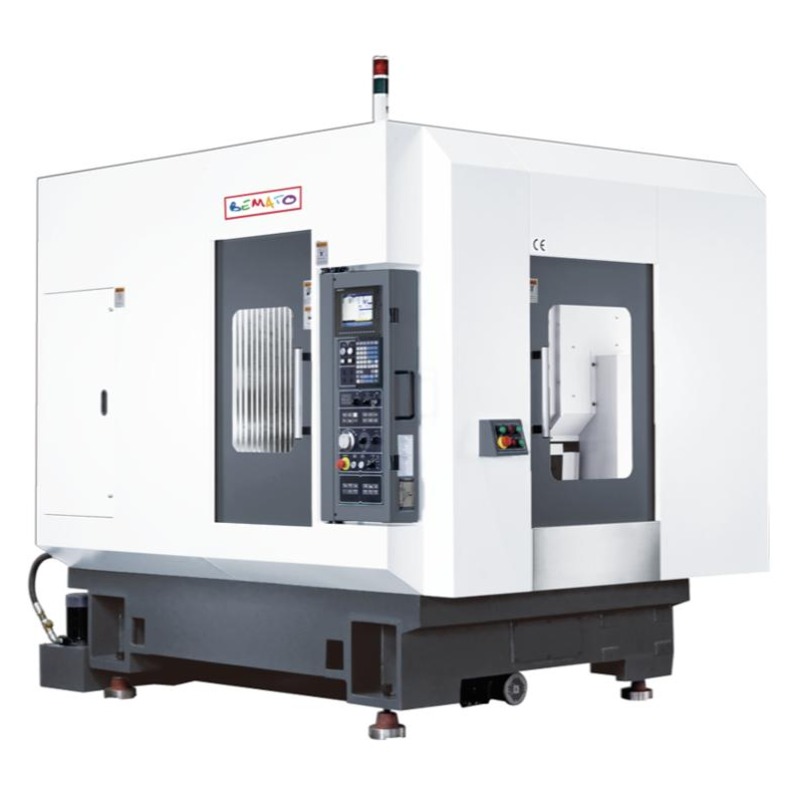

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

BMT 450APC

Table Size｜500 x 325 mm
X/Y/Z travel｜450 x 320 x 320 mm

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

BMT 550APC

Table Size｜600 x 400 mm
X/Y/Z travel｜550 x 400 x 350 mm

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

VERTICAL MACHINING CENTER CHANGING PALLETS TYPE

BMT 560APC

Table Size｜600 x 425 mm
X/Y/Z travel｜560 x 400 x 400 mm
