MANUAL PALLET STACKERS (1 TON / 1.2 TONS/ 1.5 TONS) (MPS-10/12/15/10W/12W/15W)
57104791
Description
Specification
| ITEM NO. | 57104791 | ||
|---|---|---|---|
| Model | MPS-10/1500(Standard) | ||
| Load capacity | 1000 kgs | 2200 lb | |
| Load center | 450 mm | 17.72” | |

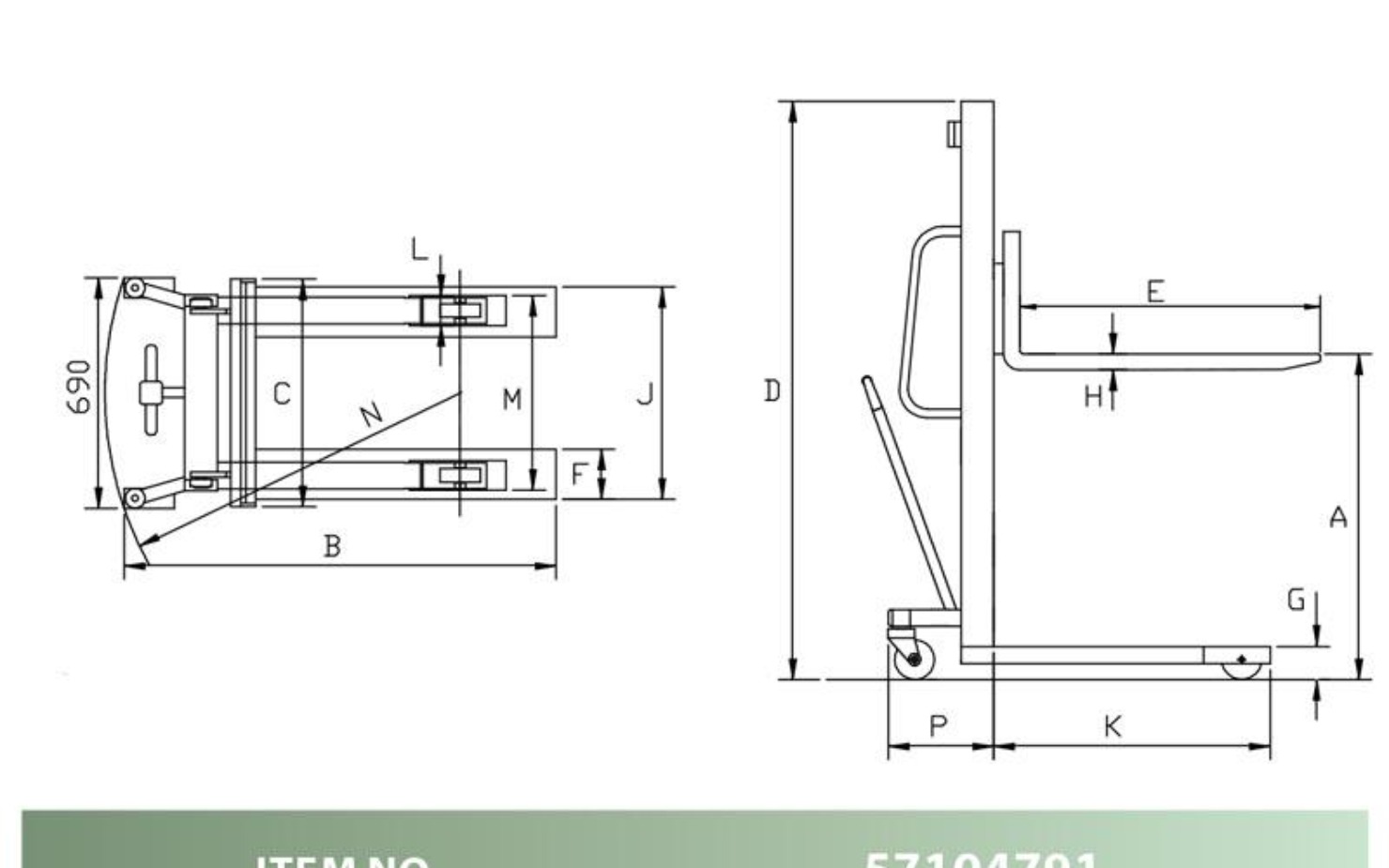

| (a) | Max. fork height | 1500 mm | 59.05” |
| Service weight | 180 kgs | 396 lb | |
| Fork wheel material | ø 80×70 mm poly-urethane | ø 3.15”×2.75” | |
| Steering and caster wheel material | ø 180×50 mm poly-urethane | ø 7.09”×2.00” ← |
|
| (b) | Overall length | 1300 mm | 51.18” |
| (c) | Overall width | 710 mm | 27.95” |
| (d) | Overall height | 1880 mm | 74.00” |
| (e) | Fork length | 900 mm | 35.43” |
| (f) | Fork width | 150 mm | 5.90” |
| (g) | Min. fork height | 90 mm | 3.54” |
| (h) | Fork thickness | 65 mm | 2.56” |
| (j) | Distance of forks | 330-660 mm | 13.00”~25.98” |
| (k) | Straddle length | 820 mm | 32.28” |
| (l) | Each straddle width | 100 mm | 3.94” |
| (m) | Distance of straddle | 590 mm | 27.16” |
| (n) | Turning | 1300 mm | 51.18” |
| (p) | Length of body | 330 mm | 13.00” |
| Straddle height | 85 mm | 3.35” | |
UNIT: mm
| ITEM NO. | 57104791 | |
|---|---|---|
| Model | ||
| Fork height | Standard | Option |
| Lowered (h1) | 85 | 76 |
| Lifted (h2) | 200 | 190 |
| Fork wheels | ø82 × 70 | ø76×93 |
| No. of fork wheels | 2pcs×2 | 1pc×2 |
| Steer wheels | ø180×50 | ø180×50 |
| Wheel material | Steel covered by poly-urethane | Steel covered by Nylon |
| Service weight | 95 kgs | |
| Fork thickness | 45 mm | |
UNIT: mm
| STYLE | OVERALL WIDTH (A) | FORK LENGTH (L) | INNER WIDTH (B) |
|---|---|---|---|
| HPT-NS | 520 | 910 | 200 |
| HPT-NM | 520 | 1070 | 200 |
| HPT-WM | 685 | 1070 | 365 |
| HPT-WL | 685 | 1220 | 365 |
