UNIVERSAL RIGHT ANGLE PLATES
57101007, 57101008, 57101009, 57101010, 57101011, 57101012, 57101013, 57101014, 57101015....57101030
Description
Specification
- High grade cast iron FC 25.
- Supplied in either machined or ground.
| MACHINED FINISH ITEM NO. |
PRECISION GROUND ITEM NO. |

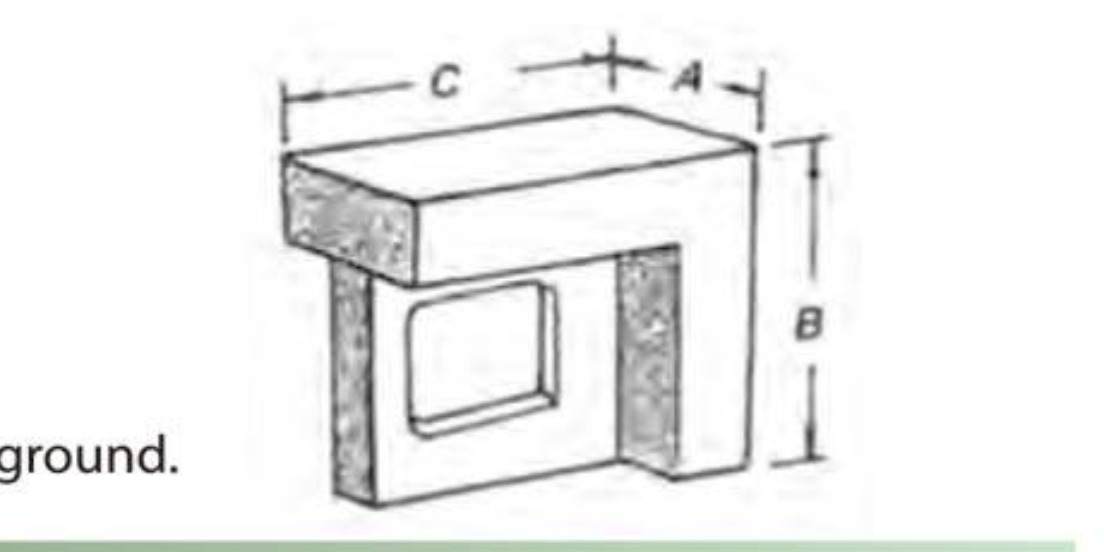

DIMENSIONS | WEIGHT (kgs) |
||
|---|---|---|---|---|---|
| A | B | C | |||
| 57101007 | 57101019 | 3-3/4" | 4" | 5" | 4.5 |
| 57101008 | 57101020 | 4" | 4" | 6" | 6.5 |
| 57101009 | 57101021 | 4" | 5" | 6" | 7 |
| 57101010 | 57101022 | 4-1/2" | 5" | 8" | 9.5 |
| 57101011 | 57101023 | 5" | 8" | 12" | 19 |
| 57101012 | 57101024 | 5-1/2" | 7" | 10" | 15 |
| 57101013 | 57101025 | 5-1/2" | 8" | 10" | 18 |
| 57101014 | 57101026 | 6" | 6" | 8" | 15 |
| 57101015 | 57101027 | 8" | 10" | 12" | 32.5 |
| 57101016 | 57101028 | 8" | 9" | 16" | 41 |
| 57101017 | 57101029 | 10" | 12" | 16" | 60 |
| 57101018 | 57101030 | 12" | 12" | 24" | 90 |
