COOLANT PUMPS (SUBMERSIBLE TYPE)
57104567, 57104568, 57104569, 57104570, 57104571, 57104572, 57104573, 57104574, 57104575, 57104576
Description
Specification
UNIT:mm
| ITEM NO. | HP | A | B | C | D | E | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 57104567 | 1/2 | 162 | 94 | 388 | 150 | 196 | 138 | 222 | 1" PT | 171 | 10 | 12 | 141 |
| 57104568 | 1/2 | 162 | 94 | 418 | 180 | 196 | 138 | 222 | 1" PT | 171 | 10 | 12 | 141 |
| 57104569 | 1/2 | 162 | 94 | 478 | 240 | 196 | 138 | 222 | 3/4" PT | 171 | 10 | 12 | 141 |
| 57104570 | 1/2 | 162 | 94 | 528 | 290 | 196 | 138 | 222 | 1" PT | 171 | 10 | 12 | 141 |
| 57104571 | 1 | 178 | 94 | 520 | 250 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| 57104572 | 1 | 178 | 94 | 560 | 290 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| 57104573 | 1 | 178 | 94 | 650 | 380 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| 57104574 | 1 1/2 | 178 | 94 | 520 | 250 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| 57104575 | 1 1/2 | 178 | 94 | 560 | 290 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| 57104576 | 1 1/2 | 178 | 94 | 650 | 380 | 212 | 152 | 225 | 1" PT | 180 | 11 | 13 | 155 |
| ITEM NO. | MAX. OUTPUT (L/min) | LIFT (m) | ||
|---|---|---|---|---|
| Single Ph. | Three Ph. | Single Ph. | Three Ph. | |
| 57104567 | 125 | 137 | 13.5 | 14.8 |
| 57104568 | 125 | 137 | 13.5 | 14.8 |
| 57104569 | 125 | 137 | 13.5 | 14.8 |
| 57104570 | 125 | 137 | 13.5 | 14.8 |
| 57104571 | - | 190 | - | 18.1 |
| 57104572 | - | 190 | - | 18.1 |
| 57104573 | - | 190 | - | 18.1 |
| 57104574 | - | 210 | - | 19 |
| 57104575 | - | 210 | - | 19 |
| 57104576 | - | 210 | - | 19 |

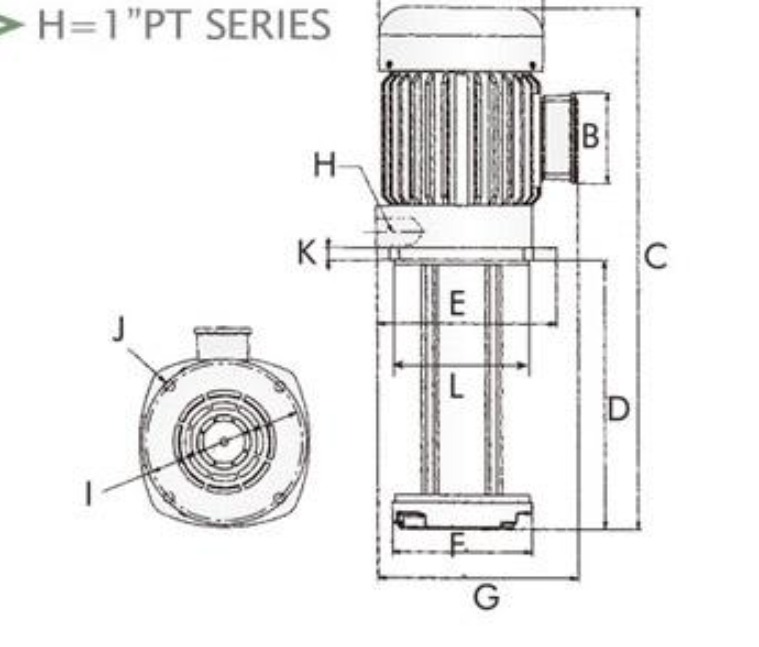

< H=1"PT SERIES
