MOUNTED HIGH PRESSURE ADJUSTABLE NOZZLES
57104848, 57104847, 57103075, 57103071, 57103072, 57103073, 57103074, 57103066, 57103067, 57103068, 57103069
Description

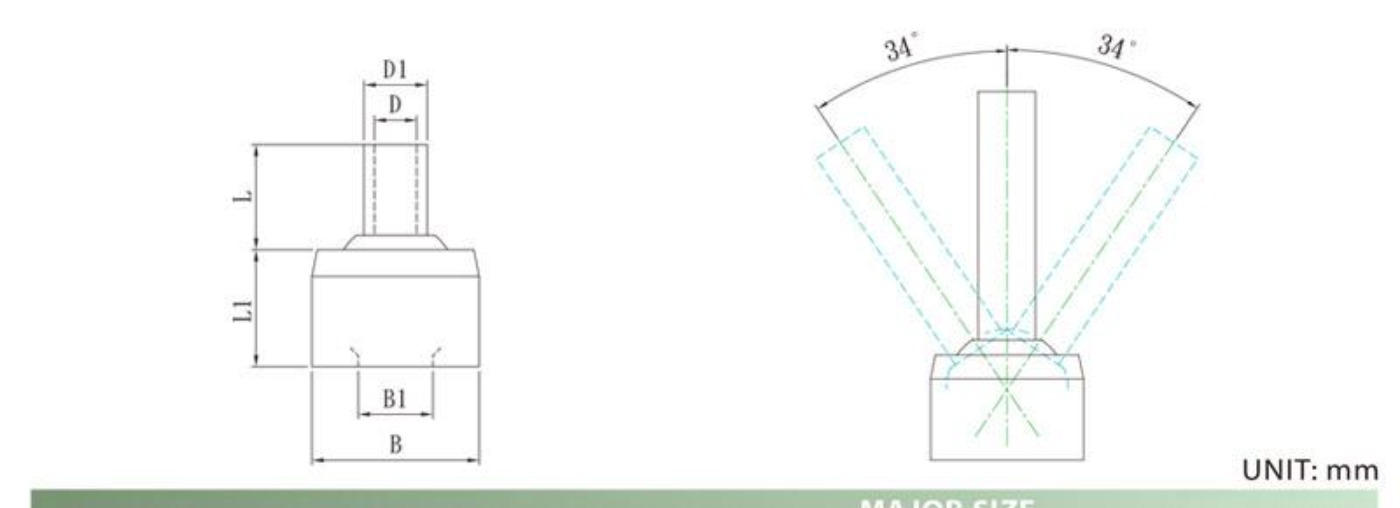

Specification
UNIT: mm
| ITEM NO. | SPECIFICATIONS | MAJOR SIZE | |||||
|---|---|---|---|---|---|---|---|
| D | L | D1 | L1 | B1 | Ø (B) | ||
| 57104848 | Ø10 x Ø2 | 2 | 1 | 3 | 8 | 4.5 | 10 |
| 57104847 | Ø12 x Ø2 x 5L | 2 | 5 | 4 | 8 | 5.5 | 12 |
UNIT: mm
| ITEM NO. | SPECIFICATIONS | MAJOR SIZE | |||||
|---|---|---|---|---|---|---|---|
| D | L | D1 | L1 | B1 | Ø (B) | ||
| 57103075 | Ø14 x Ø3 x 8L | 3 | 8 | 5 | 8 | 7 | 14 |
UNIT: mm
| ITEM NO. | SPECIFICATIONS | MAJOR SIZE | |||||
|---|---|---|---|---|---|---|---|
| D | L | D1 | L1 | B1 | Ø (B) | ||
| 57103071 | Ø15 x Ø4 x 5L | 4 | 5 | 6 | 8 | 7 | 15 |
| 57103072 | Ø15 x Ø4 x 10L | 4 | 10 | 6 | 8 | 7 | 15 |
| 57103073 | Ø15 x Ø4 x 30L | 4 | 30 | 6 | 8 | 7 | 15 |
| 57103074 | Ø15 x Ø4 x 50L | 4 | 50 | 6 | 8 | 7 | 15 |
UNIT: mm
| ITEM NO. | SPECIFICATIONS | MAJOR SIZE | |||||
|---|---|---|---|---|---|---|---|
| D | L | D1 | L1 | B1 | Ø (B) | ||
| 57103066 | Ø16 x Ø4 x 5L | 4 | 5 | 6 | 11 | 7 | 16 |
| 57103067 | Ø16 x Ø4 x 10L | 4 | 10 | 6 | 11 | 7 | 16 |
| 57103068 | Ø16 x Ø4 x 30L | 4 | 30 | 6 | 11 | 7 | 16 |
| 57103069 | Ø16 x Ø4 x 50L | 4 | 50 | 6 | 11 | 7 | 16 |
