AMERICAN TAPER PIPE TAPS FOR NPT THREADS / STRAIGHT PIPE TAPS FOR NPS THREADS
55102395, 55102396, 55102397, 55102398, 55102399, 55102400, 55102401, 55102402, 55102403, 55102404, 55102405, 55102406, 55102407, 55102408, 55102409
Description
Specification
SKS ｜ Uncoated Blank ｜ 3.0P ｜ ANSI

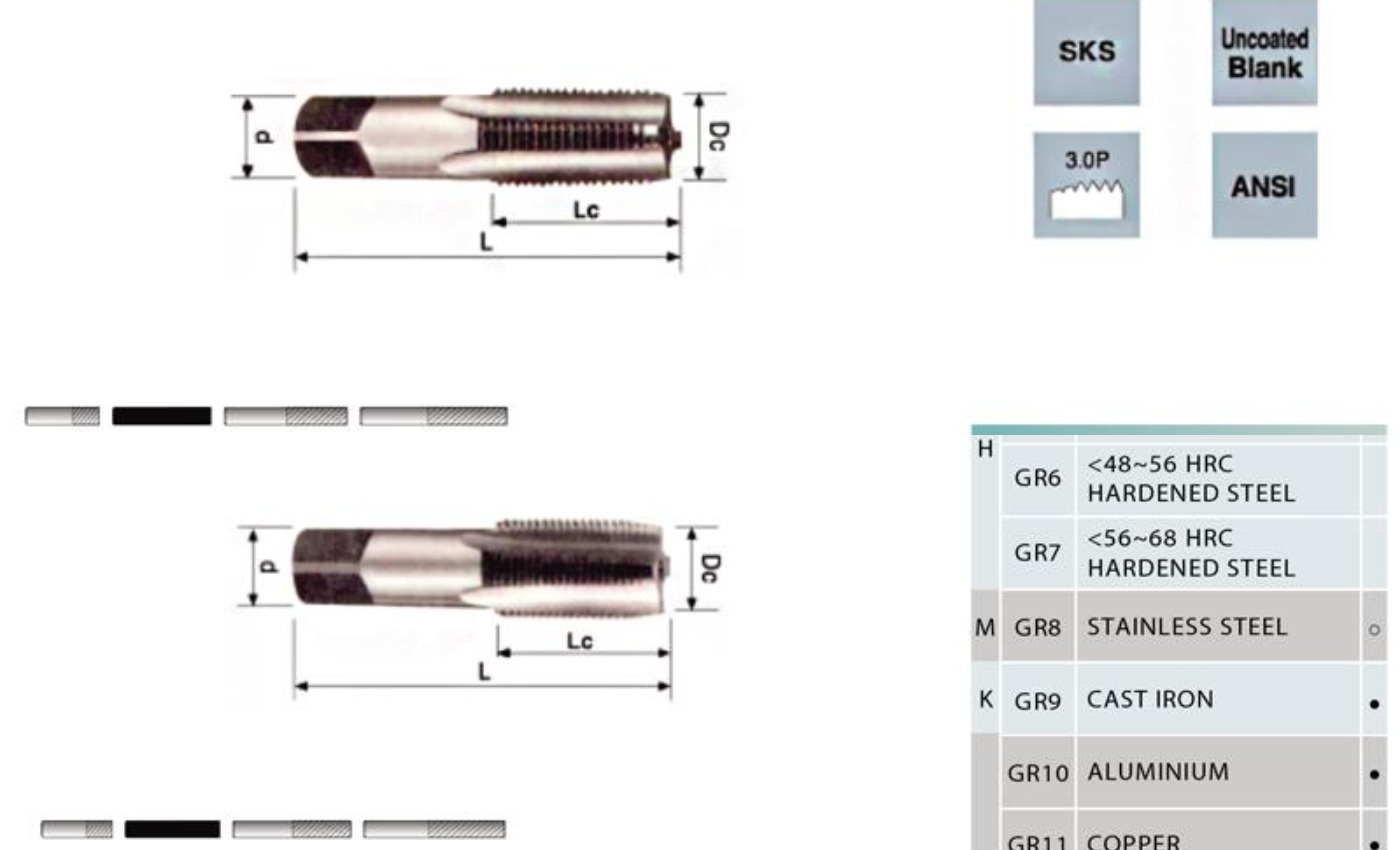

| ITEM NO. | SIZE x PITCH | Lc mm | L mm | d mm | NO. OF | SKS S734 |
|---|---|---|---|---|---|---|
| 55102395 | NPT 1/8-27 | 19 | 55 | 8 | 4 | • |
| 55102396 | NPT 1/4-18 | 28 | 62 | 11 | 4 | • |
| 55102397 | NPT 3/8-18 | 28 | 65 | 14 | 4 | • |
| 55102398 | NPT 1/2-14 | 35 | 80 | 18 | 4 | • |
| 55102399 | NPT 3/4-14 | 35 | 85 | 23 | 4 | • |
| 55102400 | NPT 1-11 1/2 | 45 | 95 | 26 | 5 | • |
| ITEM NO. | SIZE x PITCH | Lc mm | L mm | d mm | NO. OF | SKS S735 |
|---|---|---|---|---|---|---|
| 55102401 | NPS 1/8-27 | 19 | 55 | 8 | 4 | • |
| 55102402 | NPS 1/4-18 | 28 | 62 | 11 | 4 | • |
| 55102403 | NPS 3/8-18 | 28 | 65 | 14 | 4 | • |
| 55102404 | NPS 1/2-14 | 35 | 80 | 18 | 4 | • |
| 55102405 | NPS 3/4-14 | 35 | 85 | 23 | 4 | • |
| 55102406 | NPS 1-11 1/2 | 45 | 95 | 26 | 5 | • |
| 55102407 | NPS 1 x 1/4-11 1/2 | 45 | 105 | 32 | 5 | • |
| 55102408 | NPS 1 x 1/2-11 1/2 | 45 | 110 | 38 | 6 | • |
| 55102409 | NPS 2 x -11 1/2 | 50 | 120 | 46 | 6 | • |
| WORK MATERIAL | |||
|---|---|---|---|
| P | GR1 | CARBON STEEL | • |
| GR2 | <24 HRC LOW-ALLOYED STEEL | ◦ | |
| GR3 | <30 HRC HI-ALLOYED STEEL | ◦ | |
| H | GR4 | <30~38 HRC HARDENED STEEL | |
| GR5 | <30~48 HRC HARDENED STEEL | ||
| GR6 | <48~56 HRC HARDENED STEEL | ||
| GR7 | <56~68 HRC HARDENED STEEL | ||
| M | GR8 | STAINLESS STEEL | ◦ |
| K | GR9 | CAST IRON | • |
| N | GR10 | ALUMINIUM | • |
| GR11 | COPPER | • | |
| GR12 | PLASTICS | • | |
| GR13 | FRP CFRP COMPOSITE MATERIAL | ||
| GR14 | GRAPHITE | ||
| S | GR15 | TITANIUM | |
| GR16 | NICKEL | ||
| GR17 | HEAT-RESISTANT STEEL | ||
