SERIAL FLUTE TAPS
55102202 ~ 55102246
Description
Specification
Super HSS-E ｜ Uncoated Blank ｜ JIS ｜ ISO 6H

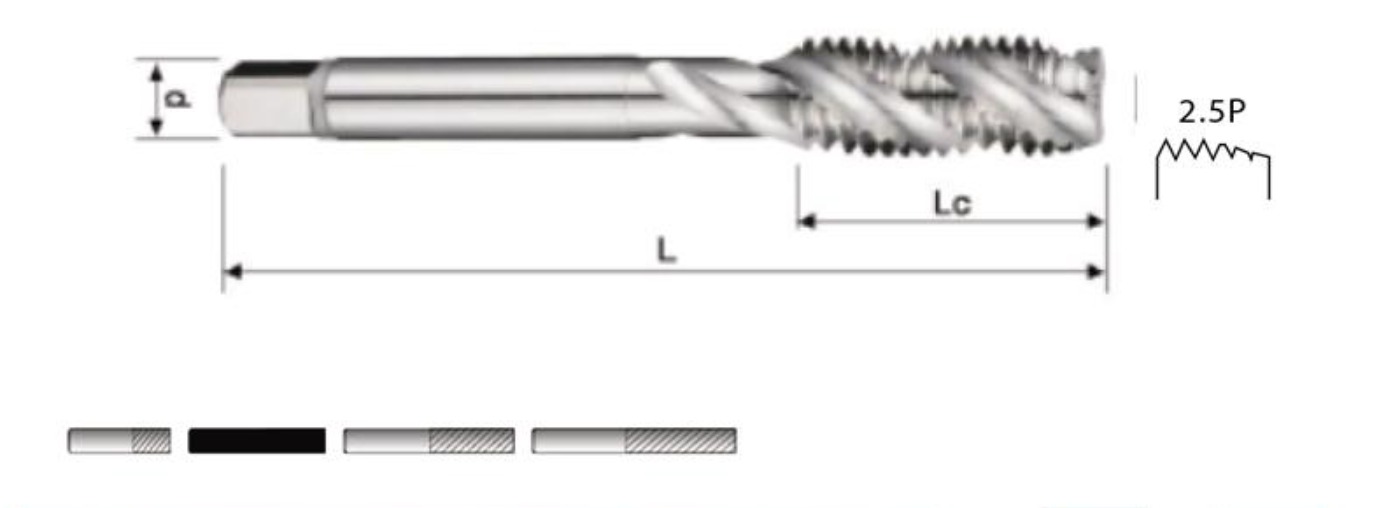

| ITEM NO. | SIZE x PITCH | Lc mm | L mm | d mm | FLUTE | S701 |
|---|---|---|---|---|---|---|
| 55102202 | #4 x 40 UNC | 9.5 | 44 | 3 | 3 | • |
| 55102203 | #5 x 40 UNC | 11 | 46 | 4 | 3 | • |
| 55102204 | #6 x 32 UNC | 13 | 48 | 4 | 3 | • |
| 55102205 | #8 x 32 UNC | 13 | 52 | 5 | 3 | • |
| 55102206 | #1 x 24 UNC | 16 | 60 | 5.5 | 3 | • |
| 55102207 | #12 x 24 UNC | 16 | 60 | 5.5 | 3 | • |
| 55102208 | 1/4 x 20 UNC | 19 | 62 | 6 | 3 | • |
| 55102209 | 5/16 x 18 UNC | 22 | 70 | 6.1 | 3 | • |
| 55102210 | 3/8 x 16 UNC | 24 | 75 | 7 | 3 | • |
| 55102211 | 7/16 x 14 UNC | 25 | 80 | 8 | 3 | • |
| 55102212 | 1/2 x 13 UNC | 29 | 85 | 9 | 3 | • |
| 55102213 | 9/16 x 12 UNC | 30 | 90 | 10.5 | 3 | • |
| 55102214 | 5/8 x 11 UNC | 32 | 95 | 12 | 3 | • |
| 55102215 | 3/4 x 10 UNC | 37 | 105 | 14 | 4 | • |
| 55102216 | 7/8 x 9 UNC | 38 | 115 | 17 | 4 | • |
| 55102217 | 1" x 8 UNC | 45 | 125 | 20 | 4 | • |
| 55102218 | #4 x 48 UNF | 9.5 | 44 | 3 | 3 | • |
| 55102219 | #5 x 44 UNF | 11 | 46 | 4 | 3 | • |
| 55102220 | #6 x 40 UNF | 13 | 48 | 4 | 3 | • |
| 55102221 | #8 x 36 UNF | 13 | 52 | 5 | 3 | • |
| 55102222 | #10 x 32 UNF | 16 | 60 | 5.5 | 3 | • |
| 55102223 | #12 x 28 UNF | 16 | 60 | 5.5 | 3 | • |
| 55102224 | 1/4 x 28 UNF | 19 | 62 | 6 | 3 | • |
| 55102225 | 5/16 x 24 UNF | 22 | 70 | 6.1 | 3 | • |
| 55102226 | 3/8 x 24 UNF | 24 | 75 | 7 | 3 | • |
| 55102227 | 7/16 x 20 UNF | 25 | 80 | 8 | 3 | • |
| 55102228 | 1/2 x 20 UNF | 29 | 85 | 9 | 3 | • |
| 55102229 | 9/16 x 18 UNF | 30 | 90 | 10.5 | 3 | • |
| 55102230 | 5/8 x 18 UNF | 32 | 95 | 12 | 3 | • |
| 55102231 | 3/4 x 16 UNF | 37 | 105 | 14 | 4 | • |
| 55102232 | 7/8 x 14 UNF | 38 | 115 | 17 | 4 | • |
| 55102233 | 1" x 12 UNF | 45 | 125 | 20 | 4 | • |
| 55102234 | 1/8 x W40 | 11 | 46 | 4 | 3 | • |
| 55102235 | 5/32 x W32 | 13 | 52 | 5 | 3 | • |
| 55102236 | 3/16 x W24 | 16 | 60 | 5.5 | 3 | • |
| 55102237 | 1/4 x W20 | 19 | 62 | 6 | 3 | • |
| 55102238 | 5/16 x W18 | 22 | 70 | 6.1 | 3 | • |
| 55102239 | 3/8 x W16 | 24 | 75 | 7 | 3 | • |
| 55102240 | 7/16 x W14 | 25 | 80 | 8 | 3 | • |
| 55102241 | 1/2 x W12 | 29 | 85 | 9 | 3 | • |
| 55102242 | 9/16 x W12 | 30 | 90 | 10.5 | 3 | • |
| 55102243 | 5/8 x W11 | 32 | 95 | 12 | 3 | • |
| 55102244 | 3/4 x W10 | 37 | 105 | 14 | 4 | • |
| 55102245 | 7/8 x W9 | 38 | 115 | 17 | 4 | • |
| 55102246 | 1" x W8 | 45 | 125 | 20 | 4 | • |
| WORK MATERIAL | |||
|---|---|---|---|
| P | GR1 | CARBON STEEL | • |
| GR2 | <24 HRC LOW-ALLOYED STEEL | • | |
| GR3 | <30 HRC HI-ALLOYED STEEL | • | |
| H | GR4 | <30~38 HRC HARDENED STEEL | ◦ |
| GR5 | <30~48 HRC HARDENED STEEL | ◦ | |
| GR6 | <48~56 HRC HARDENED STEEL | ||
| GR7 | <56~68 HRC HARDENED STEEL | ||
| M | GR8 | STAINLESS STEEL | • |
| K | GR9 | CAST IRON | • |
| N | GR10 | ALUMINIUM | • |
| GR11 | COPPER | • | |
| GR12 | PLASTICS | • | |
| GR13 | FRP CFRP COMPOSITE MATERIAL | ||
| GR14 | GRAPHITE | ||
| S | GR15 | TITANIUM | ◦ |
| GR16 | NICKEL | ◦ | |
| GR17 | HEAT-RESISTANT STEEL | ◦ | |
