HIGH SPEED CUTTING & HIGH HARD CUTTING
55103099, 55103100, 55103101, 55103102, 55103103, 55103104, 55103105, 55103106, 55103107, 55103108, 55103109, 55103110, 55103111, 55103112, 55103113, 55103114, 55103115, 55103116
Description
Specification
2 FLUTES LONG SHANK CORNER RADIUS SQUARE END MILLS
UNIT: mm

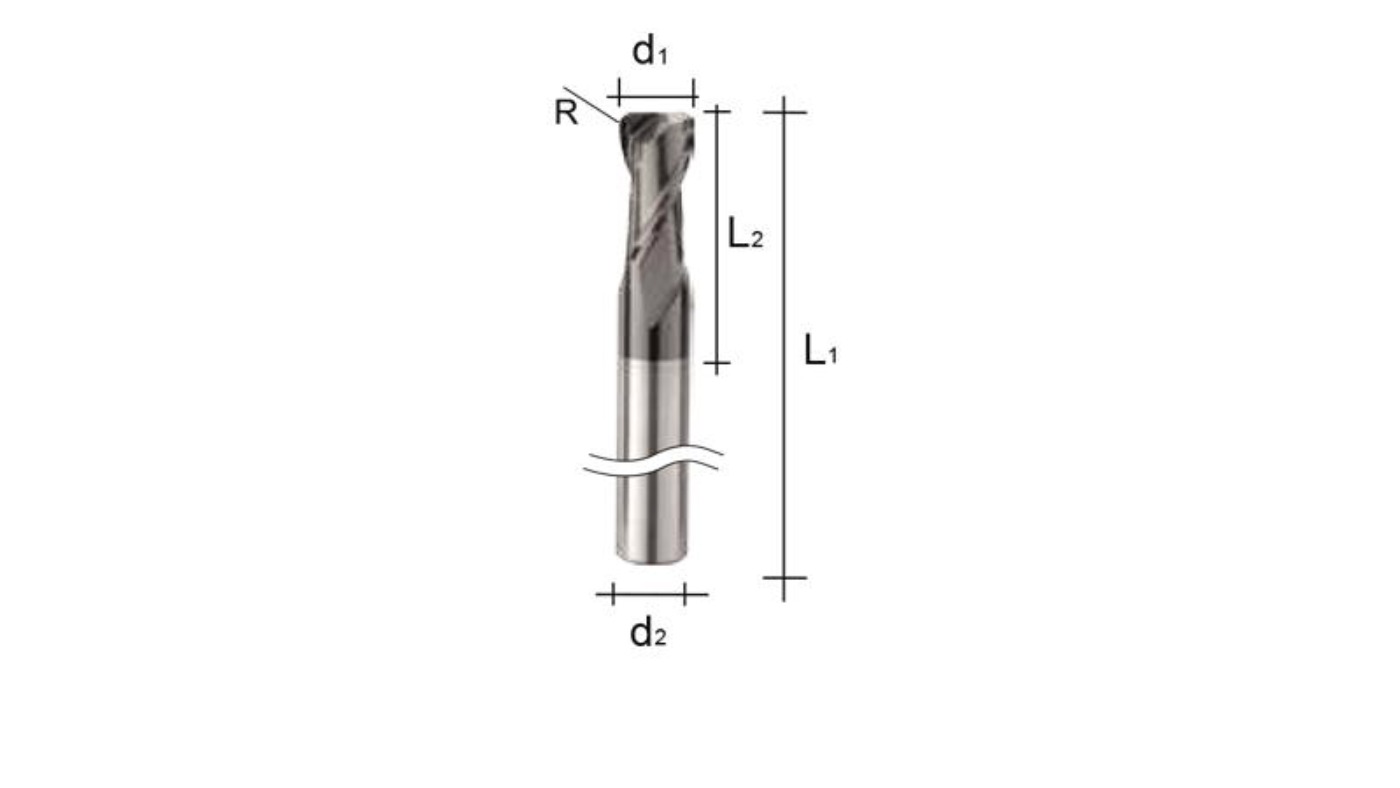

| ITEM NO. | TYPE NO. | DIAMETER (D1) | CORNER R | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|---|
| 55103099 | HLNR 0402 | 4.0 | 0.2 | 8 | 75 | 4 |
| 55103100 | HLNR 0405 | 4.0 | 0.5 | 8 | 75 | 4 |
| 55103101 | HLNR 0410 | 4.0 | 1.0 | 8 | 75 | 4 |
| 55103102 | HLNR 0602 | 6.0 | 0.2 | 12 | 100 | 6 |
| 55103103 | HLNR 0605 | 6.0 | 0.5 | 12 | 100 | 6 |
| 55103104 | HLNR 0610 | 6.0 | 1.0 | 12 | 100 | 6 |
| 55103105 | HLNR 0620 | 6.0 | 2.0 | 12 | 100 | 6 |
| 55103106 | HLNR 0805 | 8.0 | 0.5 | 16 | 100 | 8 |
| 55103107 | HLNR 0810 | 8.0 | 1.0 | 16 | 100 | 8 |
| 55103108 | HLNR 0820 | 8.0 | 2.0 | 16 | 100 | 8 |
| 55103109 | HLNR 1005 | 10.0 | 0.5 | 20 | 100 | 10 |
| 55103110 | HLNR 1010 | 10.0 | 1.0 | 20 | 100 | 10 |
| 55103111 | HLNR 1020 | 10.0 | 2.0 | 20 | 100 | 10 |
| 55103112 | HLNR 1030 | 10.0 | 3.0 | 20 | 100 | 10 |
| 55103113 | HLNR 1205 | 12.0 | 0.5 | 24 | 100 | 12 |
| 55103114 | HLNR 1210 | 12.0 | 1.0 | 24 | 100 | 12 |
| 55103115 | HLNR 1220 | 12.0 | 2.0 | 20 | 100 | 12 |
| 55103116 | HLNR 1230 | 12.0 | 3.0 | 20 | 100 | 12 |
