HIGH SPEED CUTTING & HIGH HARD CUTTING
55103053 ~ 55103081
Description
Specification

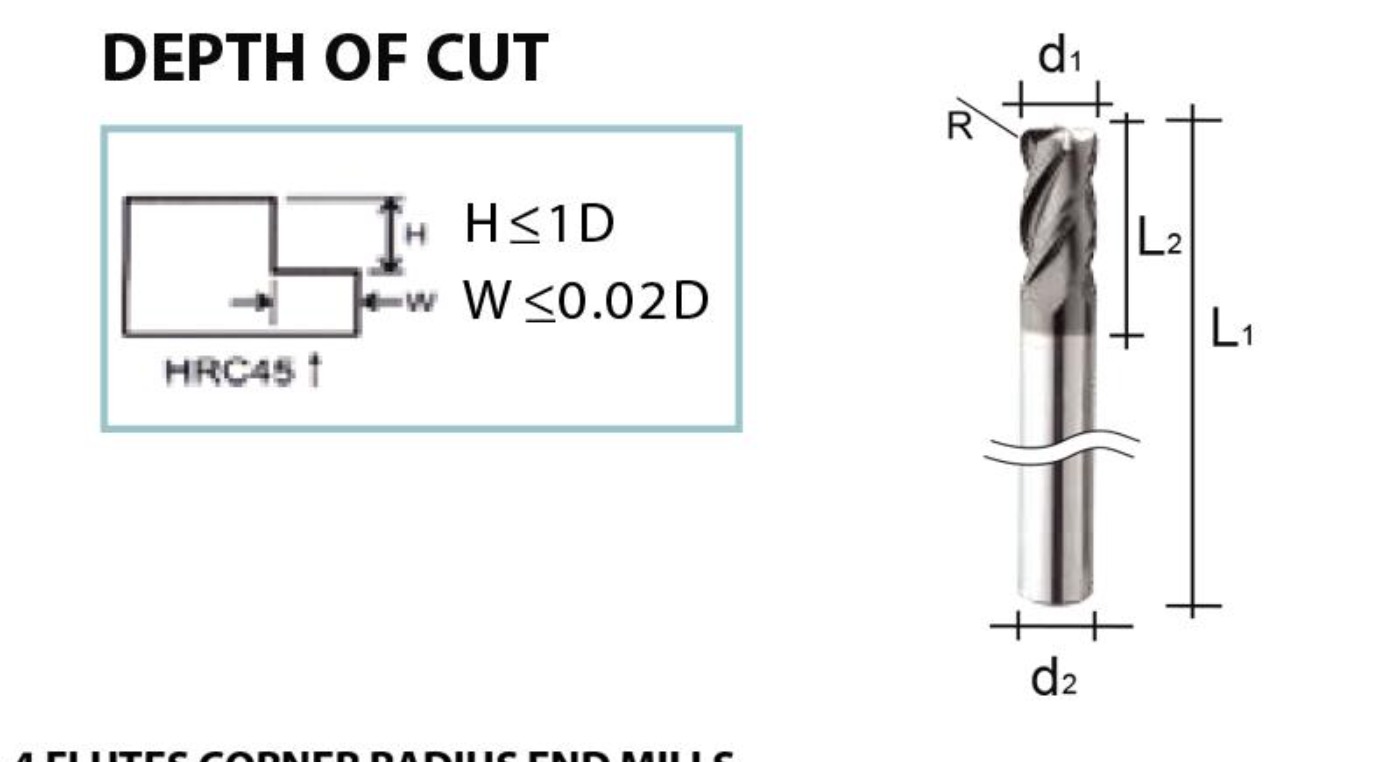

4 FLUTES CORNER RADIUS END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER (D1) | CORNER R | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|---|
| 55103053 | HER 0102 | 1.0 | 0.2 | 2 | 50 | 4 |
| 55103054 | HER 0202 | 2.0 | 0.2 | 4 | 50 | 4 |
| 55103055 | HER 0205 | 2.0 | 0.5 | 4 | 50 | 4 |
| 55103056 | HER 0252 | 2.5 | 0.2 | 5 | 50 | 4 |
| 55103057 | HER 0255 | 2.5 | 0.5 | 5 | 50 | 4 |
| 55103058 | HER 0302 | 3.0 | 0.2 | 6 | 50 | 4 |
| 55103059 | HER 0305 | 3.0 | 0.5 | 6 | 50 | 4 |
| 55103060 | HER 0310 | 3.0 | 1.0 | 6 | 50 | 4 |
| 55103061 | HER 0402 | 4.0 | 0.2 | 8 | 50 | 4 |
| 55103062 | HER 0405 | 4.0 | 0.5 | 8 | 50 | 4 |
| 55103063 | HER 0410 | 4.0 | 1.0 | 8 | 50 | 4 |
| 55103064 | HER 0505 | 5.0 | 0.5 | 10 | 50 | 6 |
| 55103065 | HER 0510 | 5.0 | 1.0 | 10 | 50 | 6 |
| 55103066 | HER 0602 | 6.0 | 0.2 | 12 | 50 | 6 |
| 55103067 | HER 0605 | 6.0 | 0.5 | 12 | 50 | 6 |
| 55103068 | HER 0610 | 6.0 | 1.0 | 12 | 50 | 6 |
| 55103069 | HER 0615 | 6.0 | 1.5 | 12 | 50 | 6 |
| 55103070 | HER 0620 | 6.0 | 2.0 | 12 | 50 | 6 |
| 55103071 | HER 0805 | 8.0 | 0.5 | 16 | 60 | 8 |
| 55103072 | HER 0810 | 8.0 | 1.0 | 16 | 60 | 8 |
| 55103073 | HER 0820 | 8.0 | 2.0 | 16 | 60 | 8 |
| 55103074 | HER 1005 | 10.0 | 0.5 | 20 | 75 | 10 |
| 55103075 | HER 1010 | 10.0 | 1.0 | 20 | 75 | 10 |
| 55103076 | HER 1020 | 10.0 | 2.0 | 20 | 75 | 10 |
| 55103077 | HER 1030 | 10.0 | 3.0 | 20 | 75 | 10 |
| 55103078 | HER 1205 | 12.0 | 0.5 | 24 | 75 | 12 |
| 55103079 | HER 1210 | 12.0 | 1.0 | 24 | 75 | 12 |
| 55103080 | HER 1220 | 12.0 | 2.0 | 24 | 75 | 12 |
| 55103081 | HER 1230 | 12.0 | 3.0 | 24 | 75 | 12 |
RECOMMENED CUTTING CONDITION FOR CORNER RADIUS END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER (mm) | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 2 | 26000 | 1600 | 16500 | 1000 | 7500 | 300 |
| 3 | 19000 | 1800 | 12000 | 1200 | 5400 | 380 |
| 4 | 16000 | 3200 | 10000 | 1900 | 4800 | 480 |
| 5 | 14000 | 3300 | 8000 | 2000 | 3800 | 500 |
| 6 | 12000 | 3600 | 7200 | 2200 | 3500 | 650 |
| 8 | 9600 | 4000 | 5600 | 2200 | 2700 | 750 |
| 10 | 7000 | 3400 | 4400 | 1700 | 2100 | 650 |
| 12 | 6000 | 2800 | 3600 | 1400 | 1800 | 600 |
| 16 | 4500 | 2000 | 2800 | 1000 | 1400 | 450 |
