HIGH SPEED CUTTING & HIGH HARD CUTTING
55102771 ~ 55102793
Description
Specification

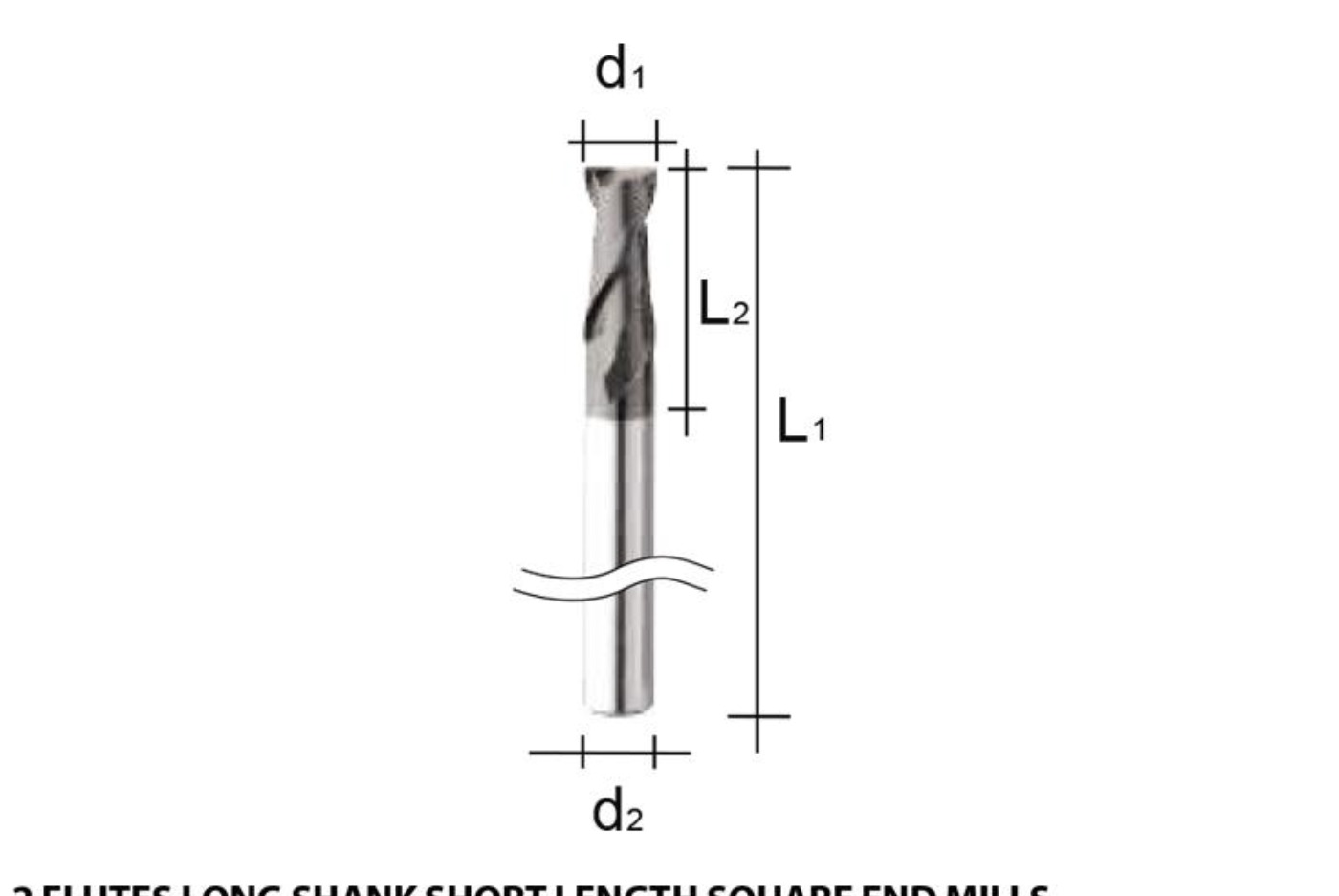

2 FLUTES LONG SHANK SHORT LENGTH SQUARE END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102771 | HEL 0102 | 1.0 | 3 | 75 | 4 |
| 55102772 | HEL 0202 | 2.0 | 6 | 75 | 4 |
| 55102773 | HEL 0302 | 3.0 | 8 | 75 | 4 |
| 55102774 | HEL 0402 | 4.0 | 10 | 75 | 4 |
| 55102775 | HEL 0502 | 5.0 | 13 | 75 | 6 |
| 55102776 | HEL 0602 | 6.0 | 15 | 75 | 6 |
| 55102777 | HEL 0802 | 8.0 | 20 | 75 | 8 |
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102778 | HEI 0302 | 3.0 | 8 | 100 | 4 |
| 55102779 | HEI 0302A | 3.0 | 8 | 100 | 6 |
| 55102780 | HEI 0402 | 4.0 | 10 | 100 | 4 |
| 55102781 | HEI 0402A | 4.0 | 10 | 100 | 6 |
| 55102782 | HEI 0502 | 5.0 | 13 | 100 | 6 |
| 55102783 | HEI 0602 | 6.0 | 15 | 100 | 6 |
| 55102784 | HEI 0802 | 8.0 | 20 | 100 | 8 |
| 55102785 | HEI 1002 | 10.0 | 25 | 100 | 10 |
| 55102786 | HEI 1202 | 12.0 | 30 | 100 | 12 |
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102787 | HEJ 0602 | 6.0 | 15 | 150 | 6 |
| 55102788 | HEJ 0802 | 8.0 | 20 | 150 | 8 |
| 55102789 | HEJ 1002 | 10.0 | 25 | 150 | 10 |
| 55102790 | HEJ 1202 | 12.0 | 30 | 150 | 12 |
| 55102791 | HEJ 1402 | 14.0 | 35 | 150 | 14 |
| 55102792 | HEJ 1602 | 16.0 | 40 | 150 | 16 |
| 55102793 | HEJ 1802 | 18.0 | 40 | 150 | 18 |
