HIGH SPEED CUTTING & HIGH HARD CUTTING
55102759, 55102760, 55102761, 55102762, 55102763, 55102764, 55102765, 55102766, 55102767, 55102768, 55102769, 55102770
Description
Specification
6 FLUTES CORNER RADIUS END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER(D1) | CORNER R | FLUTE LENGTH(L2) | O.A.L(L1) | SHANK DIA(d2) |
|---|---|---|---|---|---|---|
| 55102759 | HVTR 0602 | 6.0 | 0.2 | 12 | 50 | 6 |
| 55102760 | HVTR 0605 | 6.0 | 0.5 | 12 | 50 | 6 |
| 55102761 | HVTR 0610 | 6.0 | 1.0 | 12 | 50 | 6 |
| 55102762 | HVTR 0802 | 8.0 | 0.2 | 16 | 60 | 8 |
| 55102763 | HVTR 0805 | 8.0 | 0.5 | 16 | 60 | 8 |
| 55102764 | HVTR 0810 | 8.0 | 1.0 | 16 | 60 | 8 |
| 55102765 | HVTR 1005 | 10.0 | 0.5 | 20 | 75 | 10 |
| 55102766 | HVTR 1010 | 10.0 | 1.0 | 20 | 75 | 10 |
| 55102767 | HVTR 1205 | 12.0 | 0.5 | 24 | 75 | 12 |
| 55102768 | HVTR 1210 | 12.0 | 1.0 | 24 | 75 | 12 |
| 55102769 | HVTR 1605 | 16.0 | 0.5 | 30 | 100 | 16 |
| 55102770 | HVTR 1610 | 16.0 | 1.0 | 30 | 100 | 16 |

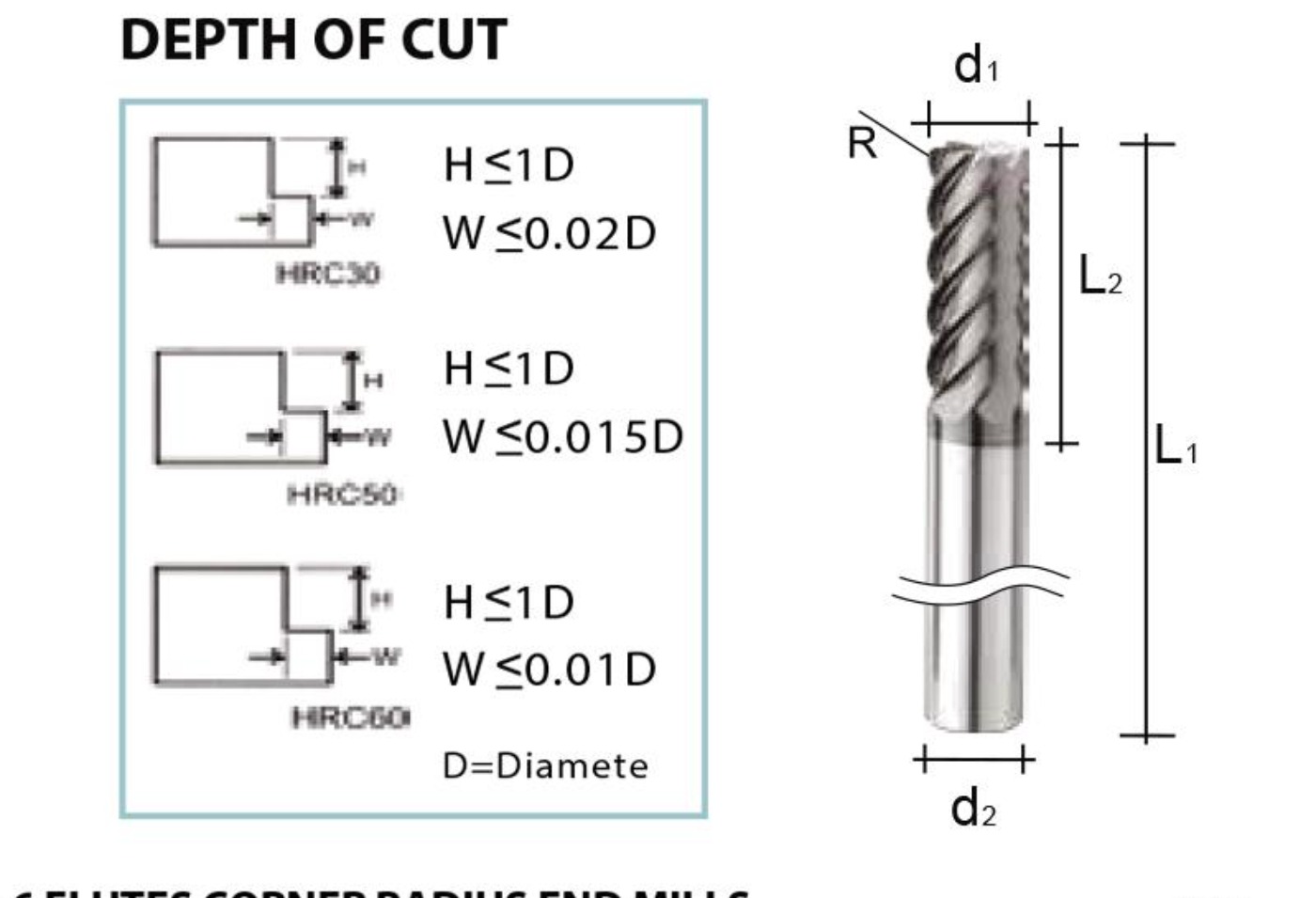

RECOMMENDED CUTTING CONDITION FOR HIGH HARDNESS CORNER RADIUS END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 6 | 15000 | 4000 | 9500 | 2500 | 6800 | 1800 |
| 8 | 11000 | 3000 | 8000 | 2300 | 4400 | 1500 |
| 10 | 8500 | 2500 | 6000 | 2000 | 3600 | 1100 |
| 12 | 7200 | 2800 | 5200 | 2000 | 2900 | 1200 |
| 16 | 5500 | 2500 | 3000 | 1200 | 2000 | 900 |
