HIGH SPEED CUTTING & HIGH HARD CUTTING
55102696, 55102697, 55102698, 55102699, 55102700, 55102701, 55102702, 55102703, 55102704, 55102705
Description
Specification

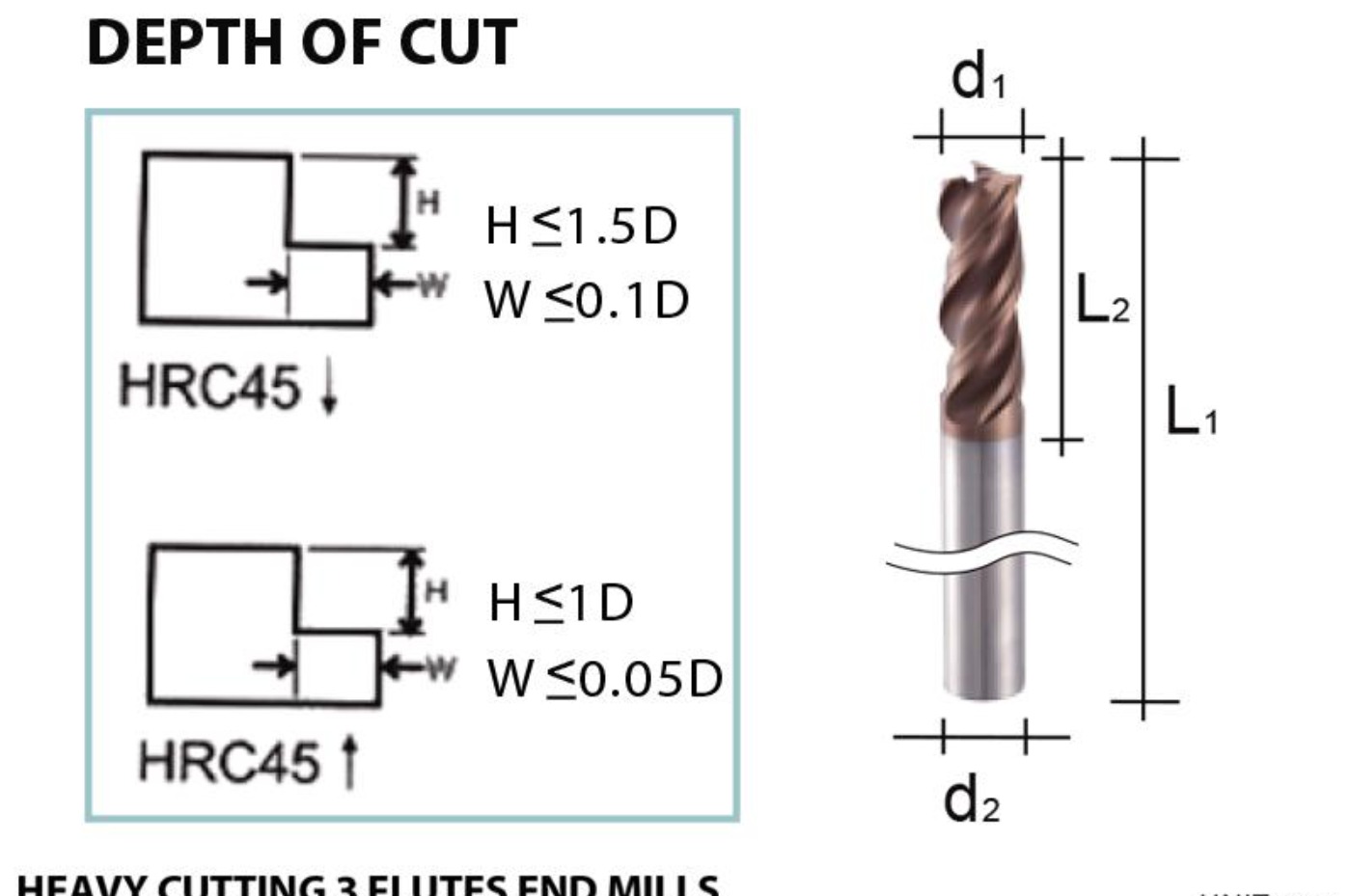

HEAVY CUTTING 3 FLUTES END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102696 | HXE 0203 | 2.0 | 6 | 50 | 4 |
| 55102697 | HXE 0303 | 3.0 | 8 | 50 | 4 |
| 55102698 | HXE 0403 | 4.0 | 11 | 50 | 4 |
| 55102699 | HXE 0503 | 5.0 | 13 | 50 | 6 |
| 55102700 | HXE 0603 | 6.0 | 16 | 50 | 6 |
| 55102701 | HXE 0803 | 8.0 | 20 | 60 | 8 |
| 55102702 | HXE 1003 | 10.0 | 30 | 75 | 10 |
| 55102703 | HXE 1203 | 12.0 | 30 | 75 | 12 |
| 55102704 | HXE 1603 | 16.0 | 40 | 100 | 16 |
| 55102705 | HXE 2003 | 20.0 | 45 | 100 | 20 |
RECOMMENED CUTTING CONDITION FOR POWER SQUARE END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER (mm) | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 3 | 9000 | 600 | 5500 | 310 | 3500 | 220 |
| 4 | 6000 | 600 | 5000 | 400 | 2200 | 220 |
| 5 | 4800 | 750 | 4000 | 400 | 1700 | 240 |
| 6 | 4500 | 800 | 3800 | 420 | 1600 | 300 |
| 8 | 3500 | 820 | 2800 | 420 | 1000 | 300 |
| 10 | 3000 | 820 | 1800 | 420 | 900 | 300 |
| 12 | 2000 | 820 | 1600 | 350 | 800 | 300 |
| 16 | 1500 | 650 | 1000 | 300 | 500 | 150 |
| 20 | 1200 | 600 | 900 | 300 | 400 | 150 |
