HIGH SPEED CUTTING & HIGH HARD CUTTING
55102512, 55102513, 55102514, 55102515, 55102516, 55102517, 55102518, 55102519, 55102520, 55102521, 55102522, 55102523
Description
Specification

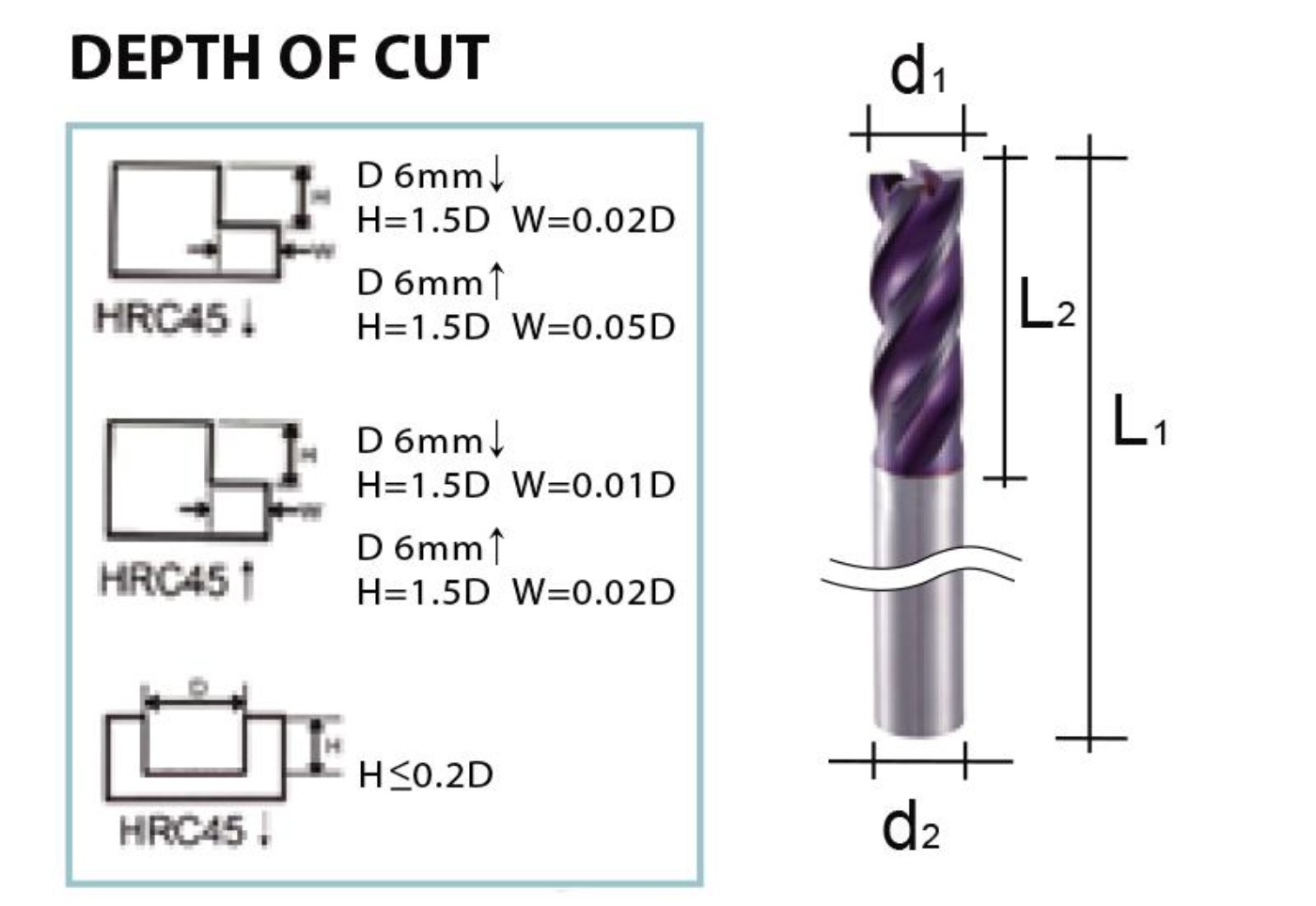

4 FLUTES SQUARE END MILLS
UNIT: mm
| ITEM NO. | TYPE NO. | DIAMETER (D1) | FLUTE LENGTH (L2) | O.A.L (L1) | SHANK DIA (d2) |
|---|---|---|---|---|---|
| 55102512 | VEN 0104 | 1.0 | 3 | 50 | 4 |
| 55102513 | VEN 0154 | 1.5 | 4 | 50 | 4 |
| 55102514 | VEN 0204 | 2.0 | 6 | 50 | 4 |
| 55102515 | VEN 0304 | 3.0 | 8 | 50 | 4 |
| 55102516 | VEN 0404 | 4.0 | 11 | 50 | 4 |
| 55102517 | VEN 0504 | 5.0 | 13 | 50 | 6 |
| 55102518 | VEN 0604 | 6.0 | 16 | 50 | 6 |
| 55102519 | VEN 0804 | 8.0 | 20 | 60 | 8 |
| 55102520 | VEN 1004 | 10.0 | 30 | 75 | 10 |
| 55102521 | VEN 1204 | 12.0 | 30 | 75 | 12 |
| 55102522 | VEN 1604 | 16.0 | 40 | 100 | 16 |
| 55102523 | VEN 2004 | 20.0 | 45 | 100 | 20 |
RECOMMENED CUTTING CONDITION FOR LONG SHANK SQUARE END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER (mm) | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 3 | 20000 | 2000 | 16000 | 1000 | 9000 | 500 |
| 4 | 19000 | 2000 | 12000 | 1300 | 6000 | 550 |
| 5 | 13000 | 1800 | 10000 | 1400 | 5000 | 500 |
| 6 | 10000 | 3000 | 8000 | 1500 | 4500 | 700 |
| 8 | 8000 | 3200 | 5000 | 1300 | 3500 | 600 |
| 10 | 7000 | 3000 | 4500 | 1200 | 3000 | 550 |
| 12 | 5000 | 2000 | 4000 | 1100 | 2000 | 500 |
| 16 | 4000 | 1800 | 3500 | 1000 | 1800 | 450 |
| 20 | 3500 | 1600 | 3000 | 1000 | 1300 | 450 |
RECOMMENED CUTTING CONDITION FOR LONG SHANK SQUARE END MILLS
| MATERIAL | CARBON STEELS. ALLOY STEELS S45C,FC,FCD,SCM,S50C,SKS... | ALLOY STEELS.TOOL STEELS.SCR, SNCM,SKD11,SKD61,NAK80... | HARDENED STEELS SKD11 | |||
|---|---|---|---|---|---|---|
| HARDNESS | ~HRC30 | ~HRC50 | ~HRC60 | |||
| DIAMETER (mm) | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min | SPEED (mm-1) | FEED mm/min |
| 3 | 20000 | 2000 | 20000 | 1200 | 16000 | 1200 |
| 4 | 16000 | 2000 | 16000 | 1200 | 12000 | 1300 |
| 5 | 13000 | 1800 | 13000 | 1100 | 10000 | 1400 |
| 6 | 10000 | 3000 | 10000 | 2100 | 8000 | 1500 |
| 8 | 8000 | 2900 | 8000 | 1800 | 6000 | 1400 |
| 10 | 7000 | 2800 | 6000 | 1700 | 5000 | 1300 |
| 12 | 5000 | 2300 | 5500 | 1700 | 4500 | 1200 |
| 16 | 3500 | 1800 | 4500 | 1800 | 3500 | 1200 |
| 20 | 3000 | 1400 | 3000 | 1500 | 2600 | 1100 |
