SIDE MILLS (TSTP2)
55101678, 55101679, 55101680, 55101681
Description
Specification

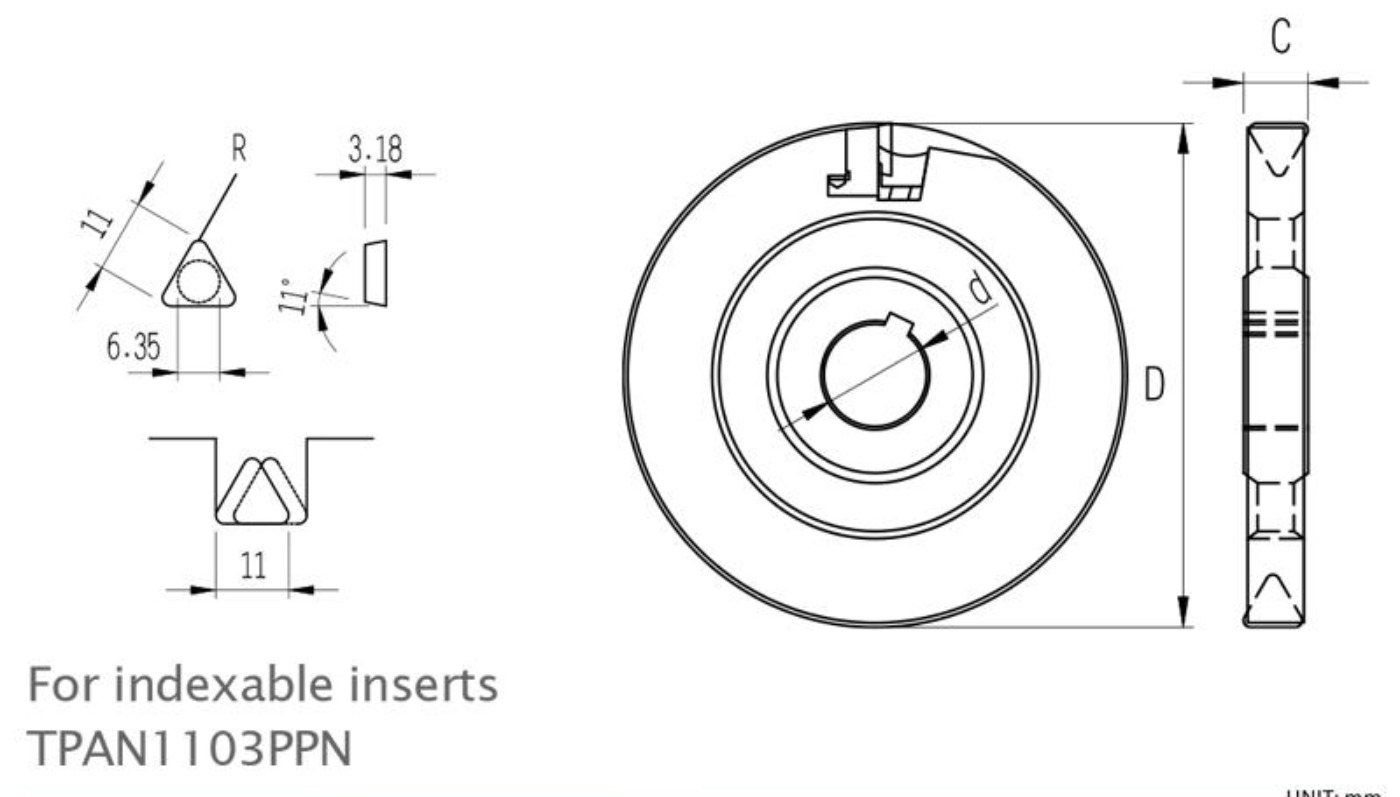

For indexable inserts TPAN1103PPN
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | LOCATOR | LOCATOR SCREW |
CLAMP | CLAMP SCREW |
WRENCH | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | C | d | d(inch) | I No. | (R) | (L) | |||||||
| 55101678 | TSTP208012 | TPAN1103 PPN |
80 | 12 | 27 | 1″ | 6 | TSL60-12 | TSL60-13 | CS9-3003 CS9-3006 |
CP50-6 | CS7- 6016 |
LW030 LW020 |
| 55101679 | TSTP210012 | 100 | 12 | 27 | 1″ | 8 | |||||||
| 55101680 | TSTP212512 | 125 | 12 | 32 | 1-1/4″ | 10 | |||||||
| 55101681 | TSTP216012 | 160 | 12 | 32 | 1-1/4″ | 12 | |||||||
