GROOVING HOLDER (GHR / GHL FOR PARTING-OFF)
55100348R/L ~ 55100363R/L
Description
Specification
UNIT: mm

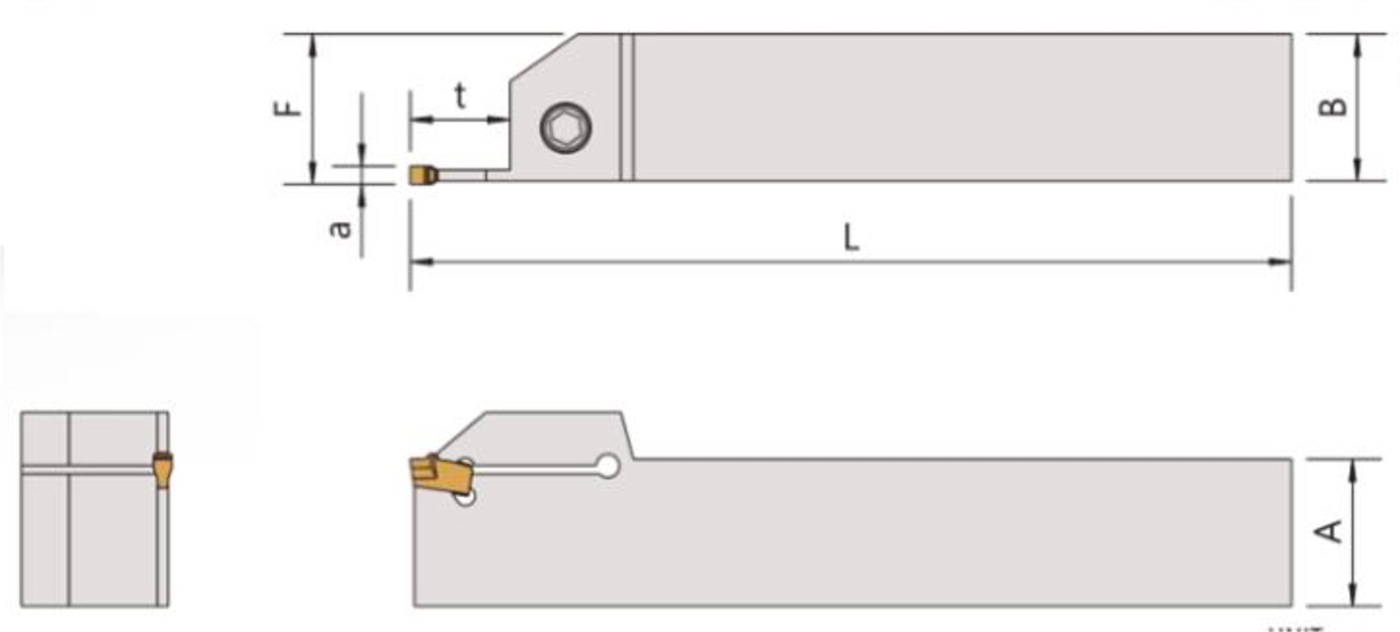

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | L | F | a | t | |||||
| 55100348R/L | GHR/L1010H0210 | A2-02 A3-02 | 10 | 10 | 100 | 10.3 | 2.25~3.05 | 10 | CSH0412 | LW030 |
| 55100349R/L | GHR/L1212H0210 | 12 | 12 | 100 | 12.3 | 2.25~3.05 | 10 | CSH0412 | LW030 | |
| 55100350R/L | GHR/L1616H0216 | 16 | 16 | 100 | 16.3 | 2.25~3.05 | 16 | CSH0514 | LW040 | |
| 55100351R/L | GHR/L2020K0216 | 20 | 20 | 125 | 20.3 | 2.25~3.05 | 16 | CSH0616 | LW050 | |
| 55100352R/L | GHR/L1212H0310 | A2-03 A3-03 | 12 | 12 | 100 | 12.3 | 3.05~4.05 | 10 | CSH0514 | LW040 |
| 55100353R/L | GHR/L1616H0316 | 16 | 16 | 100 | 16.3 | 3.05~4.05 | 16 | CSH0514 | LW040 | |
| 55100354R/L | GHR/L2020K0316 | 20 | 20 | 125 | 20.3 | 3.05~4.05 | 16 | CSH0616 | LW050 | |
| 55100355R/L | GHR/L2020K0326 | 20 | 20 | 125 | 20.3 | 3.05~4.05 | 26 | CSH0616 | LW050 | |
| 55100356R/L | GHR/L2525M0316 | 25 | 25 | 150 | 25.3 | 3.05~4.05 | 16 | CSH0616 | LW050 | |
| 55100357R/L | GHR/L2525M0326 | 25 | 25 | 150 | 25.3 | 3.05~4.05 | 26 | CSH0616 | LW050 | |
| 55100358R/L | GHR/L3225P0332 | 32 | 25 | 170 | 25.3 | 3.05~4.05 | 32 | CSH0616 | LW050 | |
| 55100359R/L | GHR/L2020K0416 | A2-04 A3-04 | 20 | 20 | 125 | 20.3 | 4.05~5.05 | 16 | CSH0616 | LW050 |
| 55100360R/L | GHR/L2020K0426 | 20 | 20 | 125 | 20.3 | 4.05~5.05 | 26 | CSH0616 | LW050 | |
| 55100361R/L | GHR/L2525M0416 | 25 | 25 | 150 | 25.3 | 4.05~5.05 | 16 | CSH0616 | LW050 | |
| 55100362R/L | GHR/L2525M0426 | 25 | 25 | 150 | 25.3 | 4.05~5.05 | 26 | CSH0616 | LW050 | |
| 55100363R/L | GHR/L3225P0432 | 32 | 25 | 170 | 25.3 | 4.05~5.05 | 32 | CSH0616 | LW050 | |
