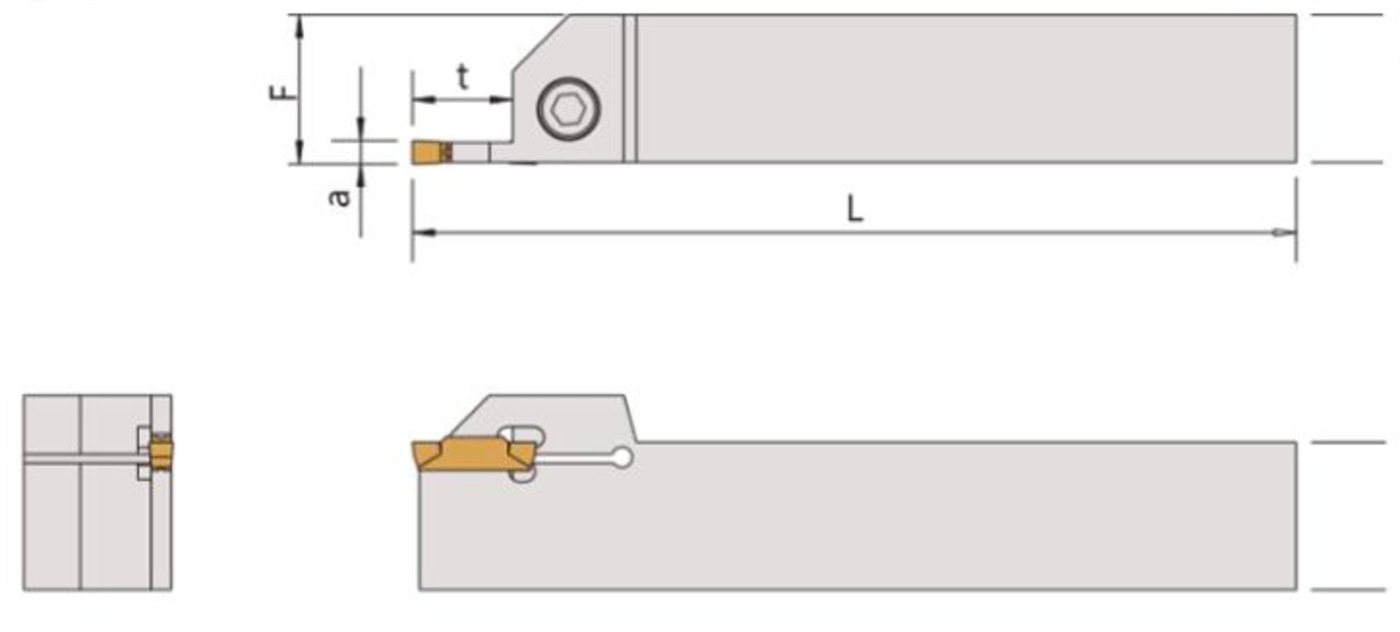

GROOVING HOLDER (GHDR-KO / GHDL-KO)
55101521R/L, 55101522R/L, 55101523R/L, 55101524R/L, 55101525R/L, 55101526R/L, 55101527R/L, 55101528R/L, 55101529R/L, 55101530R/L, 55101531R/L, 55101532R/L, 55101533R/L, 55101534R/L, 55101535R/L
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | L | F | a | t | |||||
| 55101521R/L | GHDR/L2020K02-14KO | MGMN200 | 20 | 20 | 125 | 20.3 | 2 | 14 | CSH0616 | LW050 |
| 55101522R/L | GHDR/L2525M02-14KO | 25 | 25 | 150 | 25.3 | 2 | 14 | CSH0616 | LW050 | |
| 55101523R/L | GHDR/L2525M02-20KO | 25 | 25 | 150 | 25.3 | 2 | 20 | CSH0616 | LW050 | |
| 55101524R/L | GHDR/L1616H03-16KO | MGMN300 | 16 | 16 | 100 | 16.3 | 3 | 16 | CSH0514 | LW040 |
| 55101525R/L | GHDR/L2020K03-10KO | 20 | 20 | 125 | 20.3 | 3 | 10 | CSH0616 | LW050 | |
| 55101526R/L | GHDR/L2020K03-20KO | 20 | 20 | 125 | 20.3 | 3 | 20 | CSH0616 | LW050 | |
| 55101527R/L | GHDR/L2525M03-10KO | 25 | 25 | 150 | 25.3 | 3 | 10 | CSH0616 | LW050 | |
| 55101528R/L | GHDR/L2525M03-16KO | 25 | 25 | 150 | 25.3 | 3 | 16 | CSH0616 | LW050 | |
| 55101529R/L | GHDR/L2525M03-20KO | 25 | 25 | 150 | 25.3 | 3 | 20 | CSH0616 | LW050 | |
| 55101530R/L | GHDR/L2020K04-20KO | MGMN400 | 20 | 20 | 125 | 20.3 | 4 | 20 | CSH0616 | LW050 |
| 55101531R/L | GHDR/L2525M04-10KO | 25 | 25 | 150 | 25.3 | 4 | 10 | CSH0616 | LW050 | |
| 55101532R/L | GHDR/L2525M04-16KO | 25 | 25 | 150 | 25.3 | 4 | 16 | CSH0616 | LW050 | |
| 55101533R/L | GHDR/L2525M04-20KO | 25 | 25 | 150 | 25.3 | 4 | 20 | CSH0616 | LW050 | |
| 55101534R/L | GHDR/L2525M05-16KO | MGMN500 | 25 | 25 | 150 | 25.3 | 5 | 16 | CSH0616 | LW050 |
| 55101535R/L | GHDR/L2525M05-20KO | 25 | 25 | 150 | 25.3 | 5 | 20 | CSH0616 | LW050 | |
