GROOVING HOLDER (MGIVR)
55101502, 55101503, 55101504, 55101505, 55101506, 55101507, 55101508, 55101509, 55101510, 55101511, 55101512, 55101513, 55101514, 55101515, 55101516, 55101516-1, 55101516-2
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

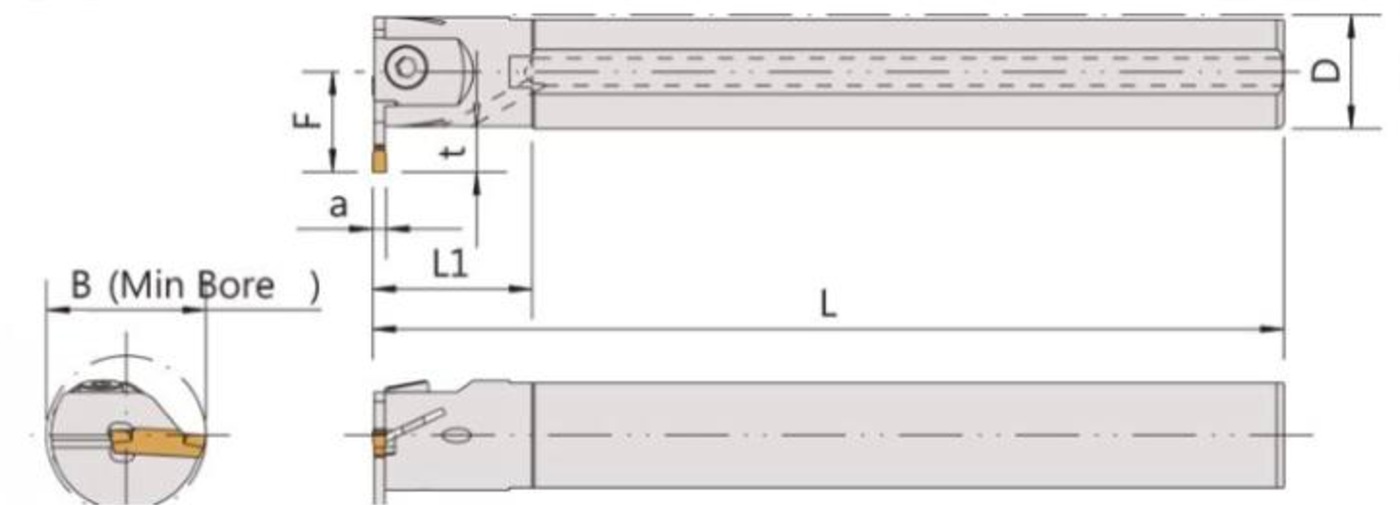

| D | F | L | B min | L1 | a | t | |||||
| 55101502 | MGIVR 2016M2 | MGMN200 | 16 | 12 | 150 | 20 | 25 | 2 | 4 | CSH0312 | LW025 |
| 55101503 | MGIVR 2520M2 | 20 | 14.5 | 150 | 25 | 25 | 2 | 4 | CSH0512 | LW040 | |
| 55101504 | MGIVR 2925R2 | 25 | 16.5 | 200 | 29 | 30 | 2 | 4 | CSH0516 | LW040 | |
| 55101505 | MGIVR 2620M3 | MGMN300 | 20 | 16 | 150 | 26 | 25 | 3 | 6 | CSH0512 | LW040 |
| 55101506 | MGIVR 3020M3 | 20 | 20 | 150 | 30 | 25 | 3 | 10 | CSH0512 | LW040 | |
| 55101507 | MGIVR 3125R3 | 25 | 18.5 | 200 | 31 | 30 | 3 | 6 | CSH0516 | LW040 | |
| 55101508 | MGIVR 3525R3 | 25 | 22.5 | 200 | 35 | 30 | 3 | 10 | CSH0516 | LW040 | |
| 55101509 | MGIVR 3832S3 | 32 | 22 | 250 | 38 | 40 | 3 | 6 | CSH0516 | LW040 | |
| 55101510 | MGIVR 4232S3 | 32 | 26 | 250 | 42 | 40 | 3 | 10 | CSH0516 | LW040 | |
| 55101511 | MGIVR 2620M4 | MGMN400 | 20 | 16 | 150 | 26 | 25 | 4 | 6 | CSH0512 | LW040 |
| 55101512 | MGIVR 3020M4 | 20 | 20 | 150 | 30 | 25 | 4 | 10 | CSH0512 | LW040 | |
| 55101513 | MGIVR 3125R4 | 25 | 18.5 | 200 | 31 | 30 | 4 | 6 | CSH0516 | LW040 | |
| 55101514 | MGIVR 3525R4 | 25 | 22.5 | 200 | 35 | 30 | 4 | 10 | CSH0516 | LW040 | |
| 55101515 | MGIVR 3832S4 | 32 | 22 | 250 | 38 | 40 | 4 | 6 | CSH0516 | LW040 | |
| 55101516 | MGIVR 4232S4 | 32 | 26 | 250 | 42 | 40 | 4 | 10 | CSH0516 | LW040 | |
| 55101516-1 | MGIVR 5040T4 | 40 | 30 | 300 | 50 | 45 | 4 | 10 | CSH0516 | LW040 | |
| 55101516-2 | MGIVR 5540T4 | 40 | 35 | 300 | 55 | 45 | 4 | 15 | CSH0516 | LW040 | |
