TOOLHOLDERS FOR THREADING (CER)
55100291, 55100292, 55100293, 55100294, 55100295, 55100296, 55100297, 55100297-1, 55100297-2, 55100297-3
Description
Specification
UNIT: mm

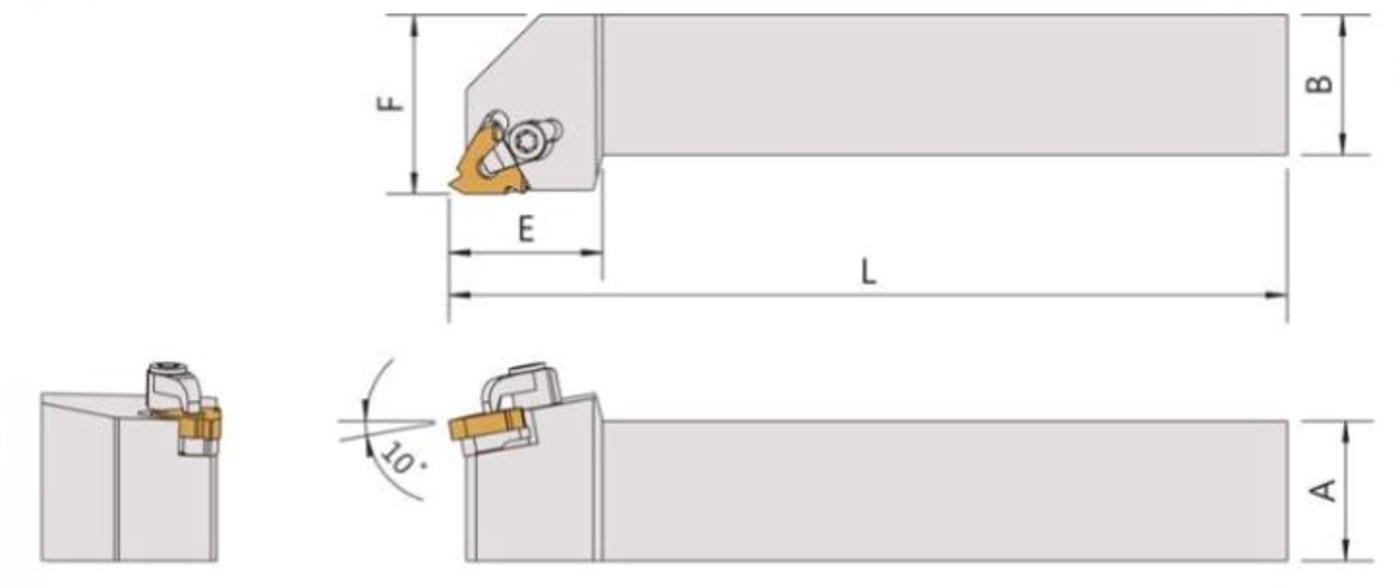

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | A | B | L | E | F | Shim R | Shim L | ||||||
| 55100291 R/L | CER/L1616H16 | 16ER/L | 16 | 16 | 100 | 22 | 20 | AE16 | AI16 | CSF3008 | SP-CP16S | FT-15 | LW020 |
| 55100292 R/L | CER/L2020K16 | 16ER/L | 20 | 20 | 125 | 22 | 25 | AE16 | AI16 | CSF3008 | SP-CP16S | FT-15 | LW020 |
| 55100293 R/L | CER/L2525M16 | 16ER/L | 25 | 25 | 150 | 25 | 32 | AE16 | AI16 | CSF3008 | SP-CP16S | FT-15 | LW020 |
| 55100294 R/L | CER/L3232P16 | 16ER/L | 32 | 32 | 170 | 32 | 40 | AE16 | AI16 | CSF3008 | SP-CP16S | FT-15 | LW020 |
| 55100295 R/L | CER/L2020K22 | 22ER/L | 20 | 20 | 125 | 22 | 25 | AIE22 | AIE22 | CSF3008 | SP-CP22S | FT-15 | LW020 |
| 55100296 R/L | CER/L2525M22 | 22ER/L | 25 | 25 | 150 | 25 | 32 | AIE22 | AIE22 | CSF3008 | SP-CP22S | FT-15 | LW020 |
| 55100297 R/L | CER/L3232P22 | 22ER/L | 32 | 32 | 170 | 34 | 40 | AIE22 | AIE22 | CSF3008 | SP-CP22S | FT-15 | LW020 |
| 55100297-1 R/L | CER/L2525M27 | 27ER/L | 25 | 25 | 150 | 25 | 32 | AE27 | AI27 | CSF4010 | SP-CP27S | FT-15 | LW025 |
| 55100297-2 R/L | CER/L3232P27 | 27ER/L | 32 | 32 | 170 | 34 | 40 | AE27 | AI27 | CSF4010 | SP-CP27S | FT-15 | LW025 |
| 55100297-3 R/L | CER/L4040S27 | 27ER/L | 40 | 40 | 250 | 42 | 50 | AE27 | AI27 | CSF4010 | SP-CP27S | FT-15 | LW025 |
