BORING BARS (S-DWLN 95° D-TYPE)
55101498, 55101499, 55101500, 55101501
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

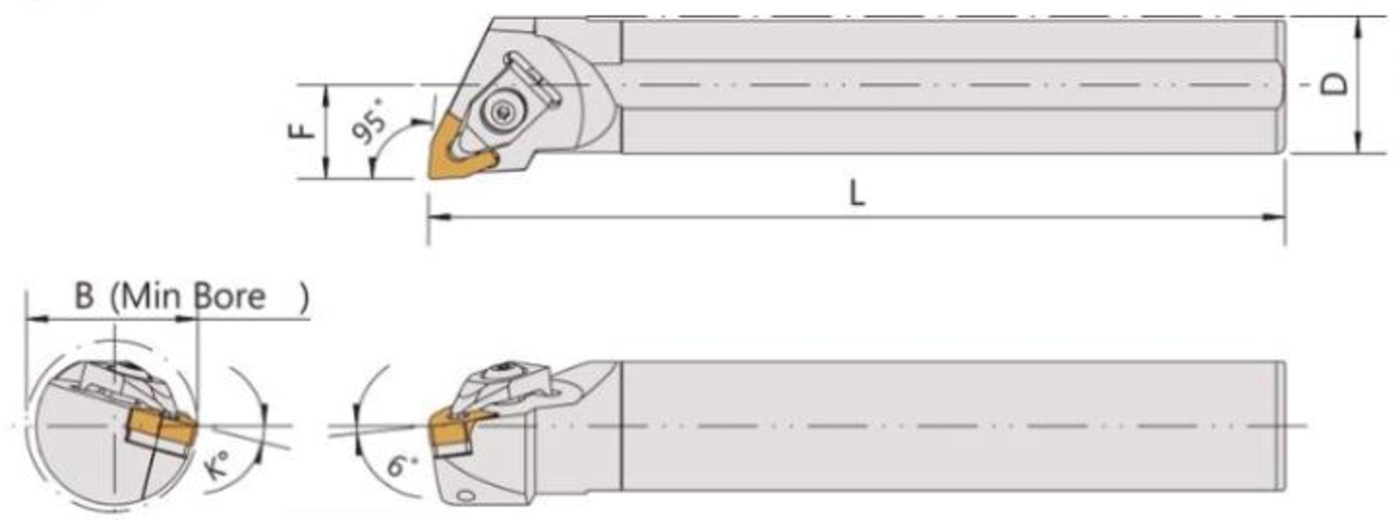

| Right / Left | D | F | L | B | K° | ||||||||
| 55101498 R/L | S25R-DWLNR/L06 | WNMG0604 | 25 | 17 | 200 | 32 | 14° | SMW-322 | CSA4009F | CP-D2 | SP0612 | CSB0415T | TL15 |
| 55101499 R/L | S25R-DWLNR/L08 | WNMG0804 | 25 | 17 | 200 | 32 | 14° | SMW-423 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 |
| 55101500 R/L | S32S-DWLNR/L08 | 32 | 22 | 250 | 40 | 14° | SMW-423 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
| 55101501 R/L | S40T-DWLNR/L08 | 40 | 27 | 300 | 50 | 12° | SMW-423 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
