BORING BARS (S-MTWN 60°)
55101239, 55101240, 55101241, 55101242, 55101243, 55101244
Description
Specification
UNIT: mm
| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

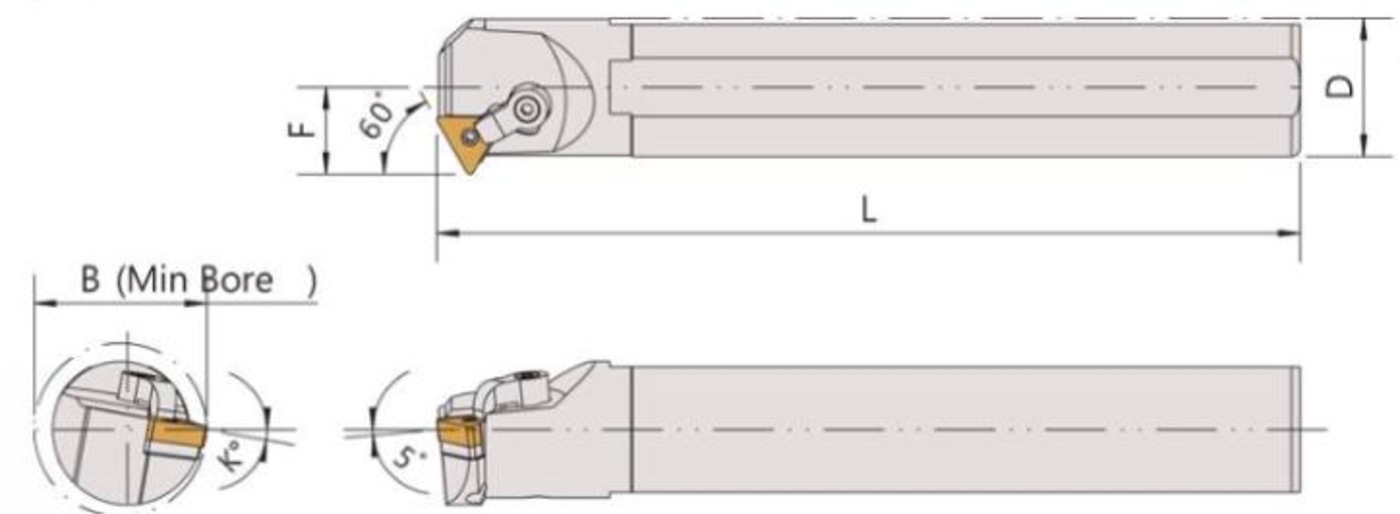

| Right / Left | D | F | L | B | K° | ||||||||
| 55101239 R/L | S16Q-MTWNR/L16 | TNMG1604 | 16 | 11 | 180 | 20 | 20° | - | LCS-510 | CP50-26S | CS7-5018 | LW020 | LW025 |
| 55101240 R/L | S20R-MTWNR/L16 | TNMG1604 | 20 | 13 | 200 | 25 | 17° | - | LCS-510 | CP50-26 | CS7-5018 | LW020 | LW025 |
| 55101241 R/L | S25R-MTWNR/L16 | TNMG1604 | 25 | 17 | 200 | 32 | 12° | - | LCS-510 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101242 R/L | S32S-MTWNR/L16 | TNMG1604 | 32 | 20 | 250 | 40 | 10° | SMT-322 | LCS-513 | CP50-22 | CS7-6024 | LW020 | LW030 |
| 55101243 R/L | S40T-MTWNR/L16 | TNMG1604 | 40 | 24 | 300 | 50 | 15° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
| 55101244 R/L | S50U-MTWNR/L16 | TNMG1604 | 50 | 29 | 350 | 57 | 12° | SMT-322 | LCS-513 | CP50-22 | CS7-6030 | LW020 | LW030 |
