BORING BARS (S-MSKN 75°)
55101210, 55101211, 55101212, 55101213, 55101214, 55101215, 55101216
Description
Specification
UNIT: mm

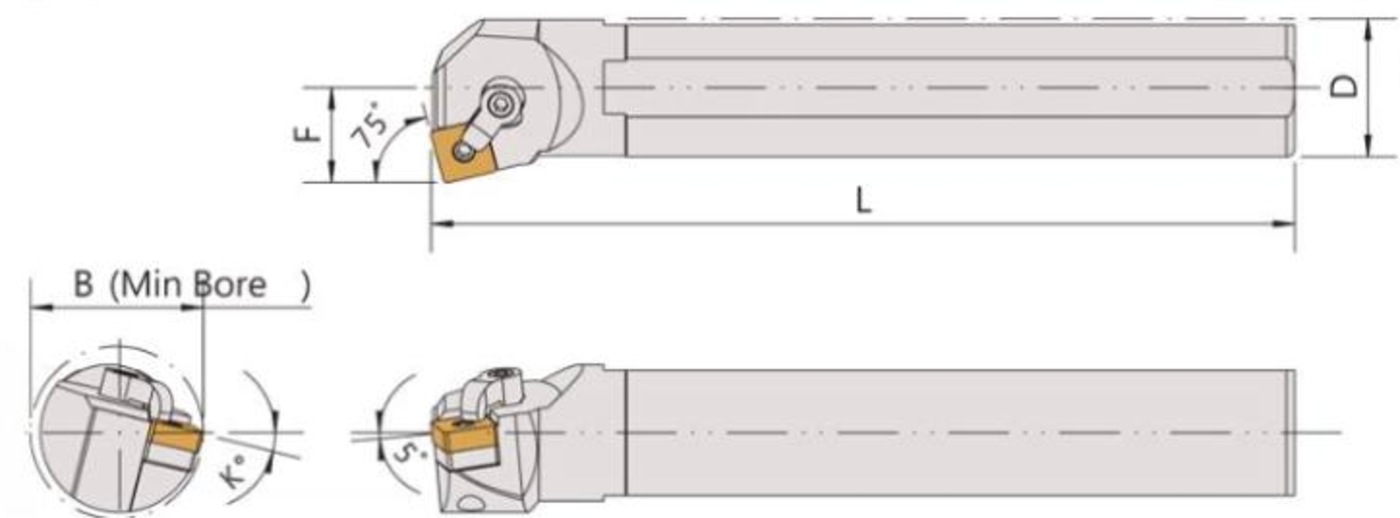

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | D | F | L | B | K° | ||||||||
| 55101210 R/L | S20R-MSKNR/L12 | SNMG1204 | 20 | 13 | 200 | 25 | 17° | - | LCS-511 | CP50-26 | CS7-5018 | LW025 | - |
| 55101211 R/L | S25R-MSKNR/L12 | SNMG1204 | 25 | 17 | 200 | 32 | 14° | - | LCS-511 | CP50-22 | CS7-6024 | LW025 | LW030 |
| 55101212 R/L | S32S-MSKNR/L12 | SNMG1204 | 32 | 22 | 250 | 40 | 14° | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55101213 R/L | S40T-MSKNR/L12 | SNMG1204 | 40 | 27 | 300 | 50 | 15° | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55101214 R/L | S50U-MSKNR/L12 | SNMG1204 | 50 | 35 | 350 | 63 | 12° | SMS-432 | LCS-617 | CP50-22 | CS7-6030 | - | LW030 |
| 55101215 R/L | S40T-MSKNR/L15 | SNMG1506 | 40 | 27 | 300 | 50 | 15° | SMS-533 | LCS-0822 | CP50-22 | CS7-6030 | - | LW030 |
| 55101216 R/L | S50U-MSKNR/L19 | SNMG1906 | 50 | 35 | 350 | 63 | 8° | SMS-633 | LCS-1022 | CP50-29 | CS7-8030 | - | LW030 |
