BORING BARS (S-DCLN 95° D-TYPE)
55100279, 55100280, 55100281
Description
Specification
UNIT: mm

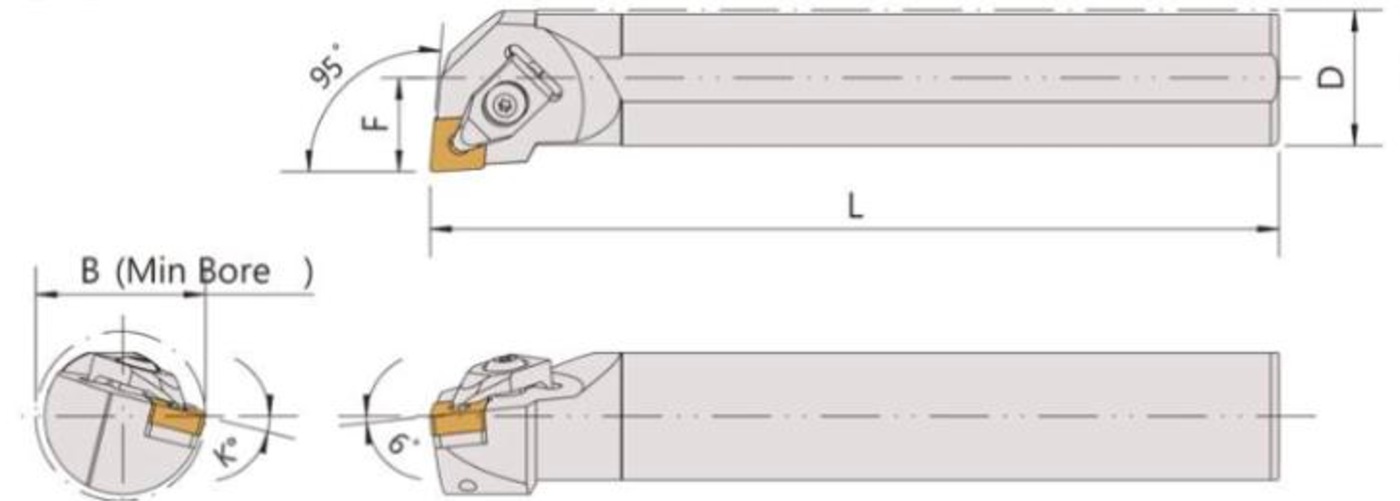

| ITEM NO. | MODEL | INSERT | DIMENSIONS | PARTS | WRENCH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | D | F | L | B | K° | ||||||||
| 55100279 R/L | S25R-DCLNR/L12 | CNMG1204 | 25 | 17 | 200 | 32 | 14° | SMC-422 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 |
| 55100280 R/L | S32S-DCLNR/L12 | 32 | 22 | 250 | 40 | 14° | SMC-422 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
| 55100281 R/L | S40T-DCLNR/L12 | 40 | 27 | 300 | 50 | 12° | SMC-422 | CSF4010 | CP-D4 | SP0816 | CSB0620T | TL20 | |
